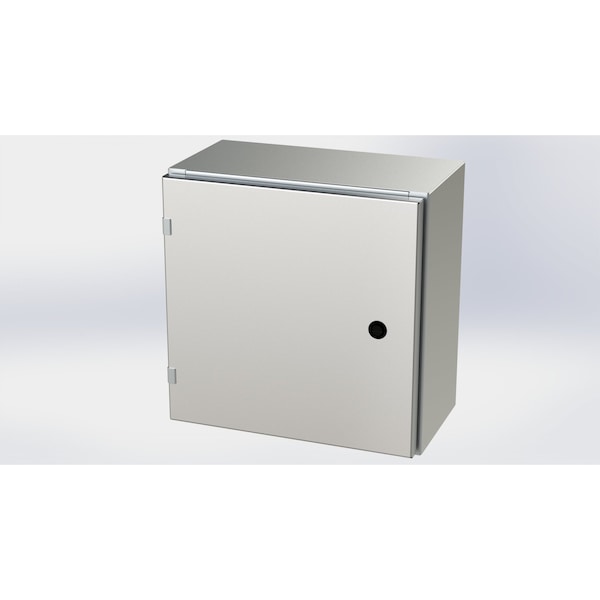

1/4 Turn Latch Electrical Enclosures, 16 in H, 8 in D, 16 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 16 in |
| Nominal Height | 16 in |
| Nominal Depth | 8 in |
| Closure Method | 1/4 Turn Latch |
| Metallic / Non-Metallic | Metallic |
| Finish | #4 Brushed |
| IP Rating | IP66 |
| Enclosure Cover Type | Hinged |
| Material of Enclosure | 304 Stainless Steel |
| Solid / Clear Cover | Solid |
| Enclosure NEMA Rating | NEMA 3R, 4, 4X, 12, 13 |
| Standards | NEMA Type 3R, 4, 4X, 12 and Type 13; UL Listed Type 3R, 4, 4X and 12; CSA Type 4, 4X and 12; IEC 60529; IP 66 |
| Application | Designed to house electrical and electronic controls, instruments and components in areas which may be regularly hosed down or are in very wet conditions. Provides protection from dust, dirt, oil, and water. For outdoor application a drip shield and drain vent is recommended |
| Package Quantity | 1 |
