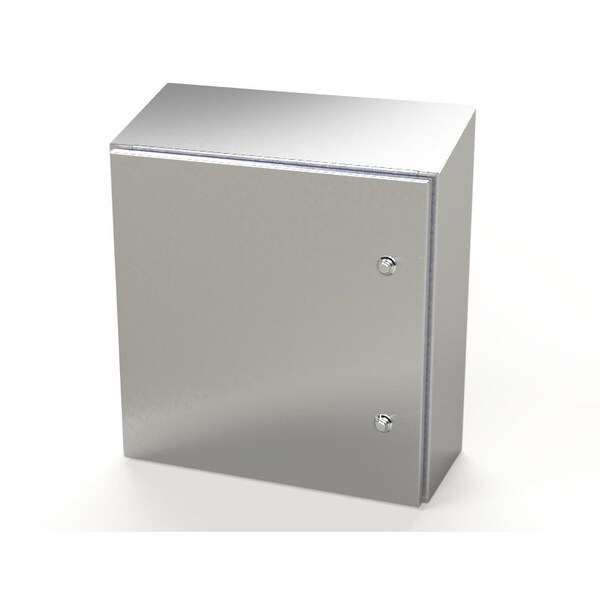

1/4 Turn Latch Electrical Enclosures, 20 in H, 8 in D, 20 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 20 in |
| Nominal Depth | 8 in |
| Closure Method | 1/4 Turn Latch |
| Metallic / Non-Metallic | Metallic |
| Finish | #4 Brushed |
| Standards | NEMA Type 3R, 4, 4X, 12 and Type 13; UL Listed Type 3R, 4, 4X and 12; CSA Type 4, 4X and 12; IEC 60529; IP 69 |
| Enclosure NEMA Rating | NEMA 3R, 4, 4X, 12, 13 |
| IP Rating | IP 69 |
| Solid / Clear Cover | Solid |
| Material of Enclosure | 304 Stainless Steel |
| Enclosure Cover Type | Hinged |
| Application | Designed to withstand high pressure and high temperature washdown procedures with direct and indirect food contact applications within the Food & Beverage industry. Enclosure is designed with internal swing-out hinges to reduce bacteria catch points and helps to maximize back panel space. Includes dual gasket design that ensures it performs in extreme applications. Inner Pour in place oil & water-resistant gasket with an easily replaceable outer gasket - FDA-grade silicone gasket that helps resist bacteria growth and chemical absorption |
| Package Quantity | 1 |
