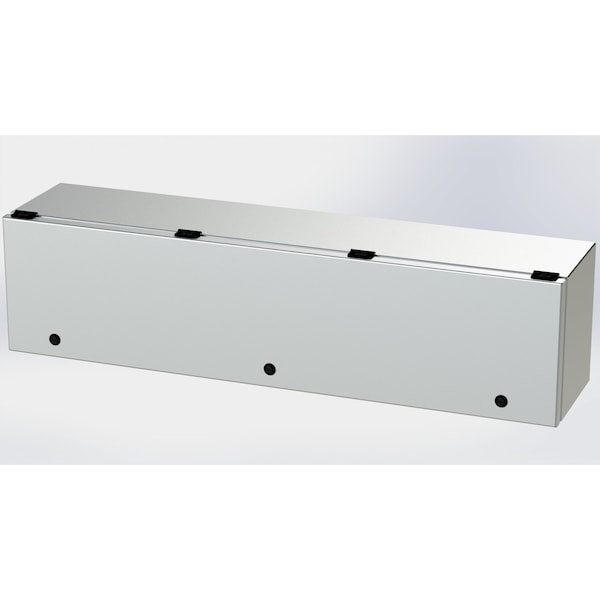

1/4 Turn Latch Electrical Enclosures, 9 in H, 8 in D, 36 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 36 in |
| Nominal Height | 9 in |
| Nominal Depth | 8 in |
| Closure Method | 1/4 Turn Latch |
| Metallic / Non-Metallic | Metallic |
| Finish | #4 Brushed |
| IP Rating | IP66 |
| Solid / Clear Cover | Solid |
| Material of Enclosure | 304 Stainless Steel |
| Enclosure NEMA Rating | NEMA 3R, 4, 4X, 12, 13 |
| Enclosure Cover Type | Hinged |
| Standards | NEMA Type 3R, 4, 4X, 12 and Type 13; UL Listed Type 3R, 4, 4X and 12; CSA Type 4, 4X and 12; IEC 60529; IP 66 |
| Application | Designed to house electrical controls, instruments and components used in an indoor or outdoor environment to provide a degree of protection for the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); and provide a degree of protection with respect to the harmful effects on the equipment due to the ingress of water (rain, sleet, snow). For outdoor application a drip shield and drain vent is recommended |
| Package Quantity | 1 |
