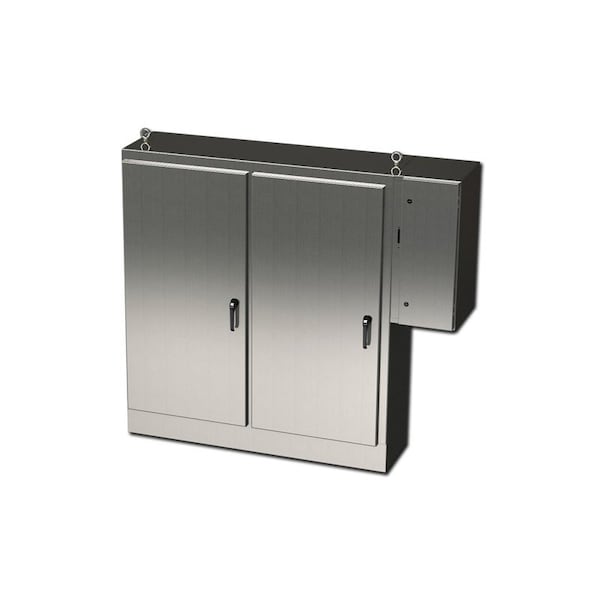

3 Point Latch with Padlock Handle Electrical Enclosures, 72 in H, 18 in D, 65-3/4 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 65-3/4 in |
| Nominal Height | 72 in |
| Nominal Depth | 18 in |
| Closure Method | Latch |
| Metallic / Non-Metallic | Metallic |
| Finish | #4 Brushed |
| Standards | NEMA Type 3R, 4, 4X, 12 and Type 13; UL Listed Type 3R, 4, 4X and 12; CSA Type 4, 4X and 12; IEC 60529; IP 66 |
| Enclosure NEMA Rating | NEMA 3R, 4, 4X, 12, 13 |
| IP Rating | IP66 |
| Material of Enclosure | 304 Stainless Steel |
| Enclosure Cover Type | Hinged |
| Solid / Clear Cover | Solid |
| Application | Designed to house the main power supply in external enclosure on the right side of main enclosure, keeping the live side of the power supply separate from the primary electrical equipment. Provides protection from dirt, dust, oil and water and can house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended |
| Package Quantity | 1 |
