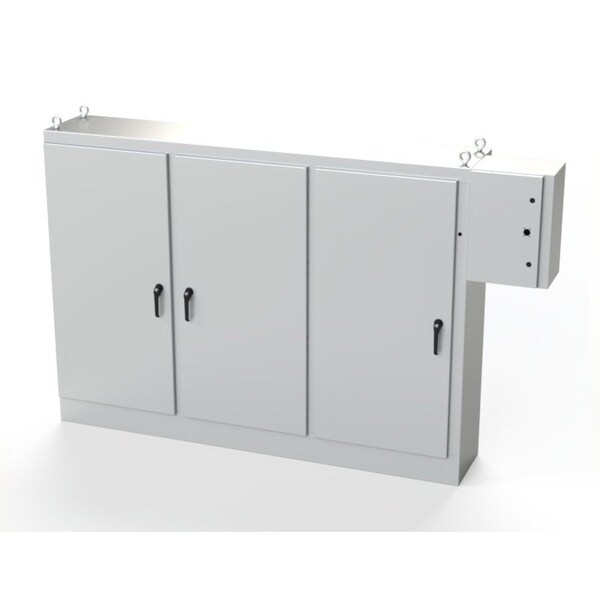

3 Point Latch with Padlock Handle Electrical Enclosures, 72 in H, 18 in D, 99-1/2in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 99-1/2 in |
| Nominal Height | 72 in |
| Nominal Depth | 18 in |
| Closure Method | Latch |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Powder Coated |
| Standards | NEMA Type 3R, 12 and Type 13; UL Listed Type 3R and 12; CSA Type 3R and 12; IEC 60529; IP 55 |
| Enclosure NEMA Rating | NEMA 3R, 12, 13 |
| IP Rating | IP55 |
| Solid / Clear Cover | Solid |
| Enclosure Cover Type | Hinged |
| Material of Enclosure | Carbon Steel |
| Application | Designed to house the main power supply in external enclosure on the right side of main enclosure, keeping the live side of the power supply separate from the primary electrical equipment. Provision for Compact Fusible Disconnect with Rotary handle Disconnect 30 to 200 amp Allen-Bradley 194R, Square D GS2, Eaton/Bussmann R9, Siemens CFS models and Socomec Fuserbloc models. Provides protection from dirt, dust, oil and water. For outdoor application a drip shield and drain vent is recommended |
| Package Quantity | 1 |
