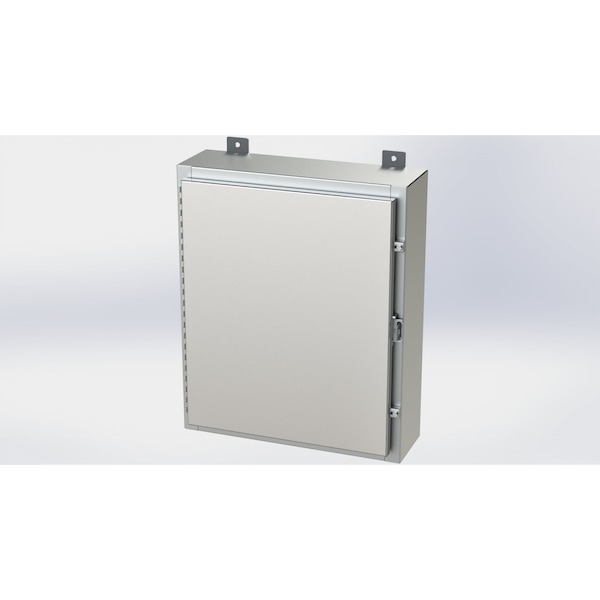

316 Stainless Steel Electrical Enclosures, 24 in H, 6 in D, 20 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 24 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 316 Stainless Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Metallic / Non-Metallic | Metallic |
| Finish | #4 Brushed |
| Solid / Clear Cover | Solid |
| IP Rating | IP66 |
| Standards | NEMA Type 3R, 4, 4X, 12 and Type 13; UL Listed Type 3R, 4, 4X and 12; CSA Type 4, 4X and 12; IEC 60529; IP 66 |
| Application | Designed to house electrical and electronic controls, instruments and components in areas which may be regularly hosed down or are very wet conditions. Provides protection from dust, dirt, oil and water. For outdoor application a drip shield and drain vent is recommended |
| Package Quantity | 1 |
