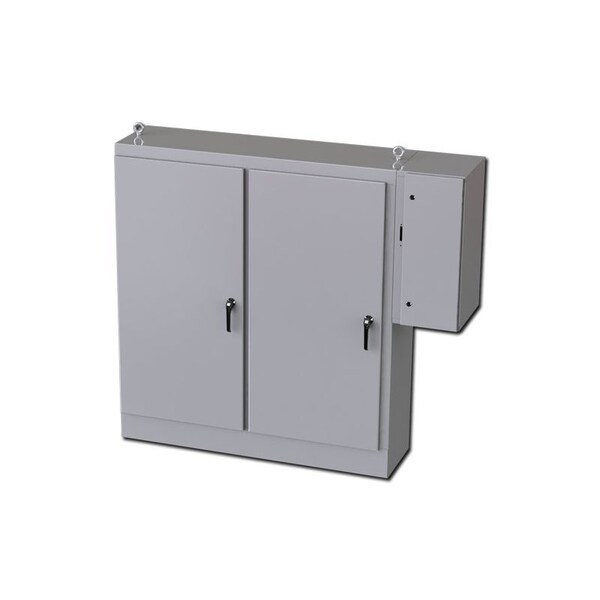

Carbon Steel Electrical Enclosures, 72 in H, 18 in D, 65-3/4 in W, NEMA 3R, 12, 13, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 65-3/4 in |
| Nominal Height | 72 in |
| Nominal Depth | 18 in |
| Enclosure NEMA Rating | NEMA 3R, 12, 13 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Powder Coated |
| Solid / Clear Cover | Solid |
| Standards | NEMA Type 3R, 12 and Type 13; UL Listed Type 3R and 12; CSA Type 3R and 12; IEC 60529; IP 55 |
| IP Rating | IP55 |
| Application | Designed to house the main power supply in external enclosure on the right side of main enclosure, keeping the live side of the power supply separate from the primary electrical equipment. Provides protection from dirt, dust, oil and water and can house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended |
| Package Quantity | 1 |
