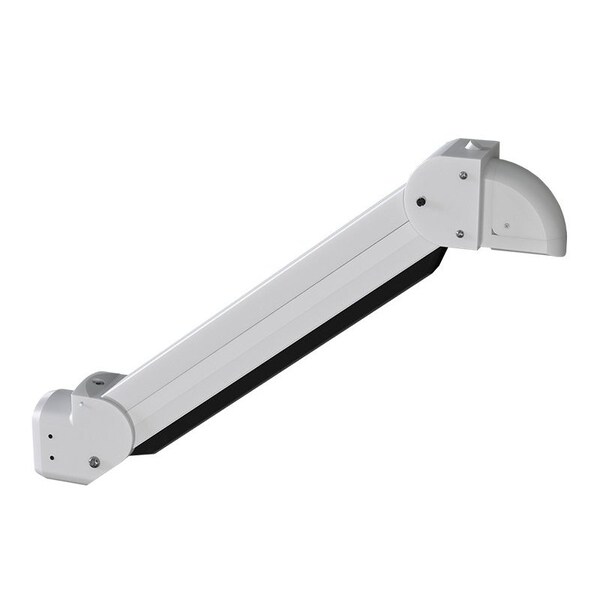

Counter Balance Arm, 8.12 in. H x 6.97 in. W x 40.67 in. L, Aluminum
| Item | Counter Balance Arm |
|---|---|
| For Use With | SCE HMI Enclosure |
| Dimension | 8.12 in. H x 6.97 in. W x 40.67 in. L |
| Height | 8.12 in |
| Width | 6.97 in |
| Material | Aluminum |
| Color | Gray |
| Finish | Powder Coated |
| Application | Designed for use with the SCE HMI enclosures, allows operators to easily move or position an HMI to an ergonomic and comfortable working height. Made of heavy-duty, reliable construction. Counter balance Systems can; be assembled as a wall mount or top mount. |
| Description | Counter Balance Arm, Push Button Lock |
| Notes | Suspension System parts cannot be custom painted |
| Construction | Cast aluminum couplings; Extruded aluminum tubes (6060T66); Rotating couplings have adjustable tensioner brakes to control movement while in use; Rigid, durable bearings in all rotating couplings withstand the stress of Continuous use; Open or closed tube design; Removable access covers on all couplings with 90 degree turn; Hardware and gasket included for installation of coupling to tube; Range of vertical movement 36.86 inches |
| Counter Balance | Push button Lock |
| Depth | 40.67 in |
| Length | 40.67 in |
| Package Quantity | 1 |
