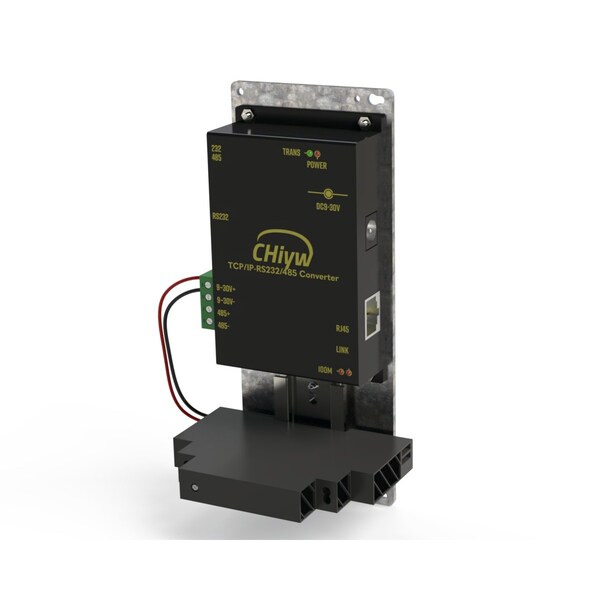

| Item | Ethernet Converter Kit |
|---|---|
| For Use With | Enviroline NextGen AC |
| Dimension | 3-3/4 in. H x 2.60 in. W x 3 in. L |
| Height | 3-3/4 in |
| Width | 2.6 in |
| Depth | 3 in |
| Description | Ethernet Converter Kit |
| Construction | Ethernet - 10/100Base-T/Tx, Automatic MSI/MDI-x port; Interface - RJ45 jack; RS485 connection - Data +/-, Max. cable length 1200m; Power - 3W; Working temperature - 0~65 °C (32~149 °F); Working humidity - 20~90% RH, non-condensing; Dimensions (WxHxD) - 170x70x65 mm (6.2x2.8x2.6 in); Mounting - DIN rail / panel |
| Application | Designed for use with Enviroline NextGen AC to convert from Modbus ready AC to Ethernet - Provisions and hardware included for fixed screw mount or DIN rail mounted. |
| Input Power | 85 to 264 VDC |
| Length | 3 in |
| Package Quantity | 1 |
