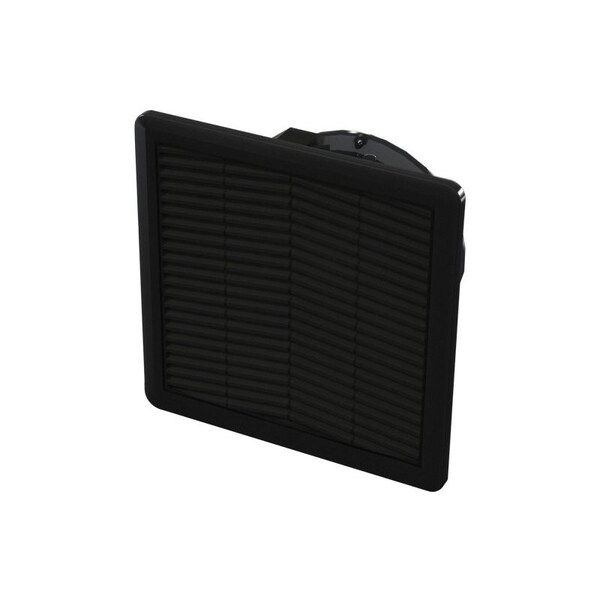

Fan Assembly 115v
| Standards | Type 12 - IEC 60529 IP 54; cULus Listed E498756; cULus File Component Recognized E358386 |
|---|---|
| Voltage | 115 V |
| Item | Filter Fan |
| Width | 9.84 in |
| Hz | 50/60 Hz |
| Height | 9.84 in |
| Application | Easy to install snap fit design for use in enclosures that require cooling but have limited space in NEMA 1 and 12 applications. Housing and grille are made of black heat resistant (ABS-FR), self-extinguishing material. Fans are available in 115 or 230 volt AC, 60/50 Hertz (HZ) single phase or 24 volt DC. Filter Class G3 EN 779 - Filter Fire Class F1 DIN 53438 Self-extinguishing. |
| Depth | 4.91 in |
| Air Flow | 135.4/158.9 cfm |
| Country of Origin (subject to change) | Malta |
| Package Quantity | 1 |
