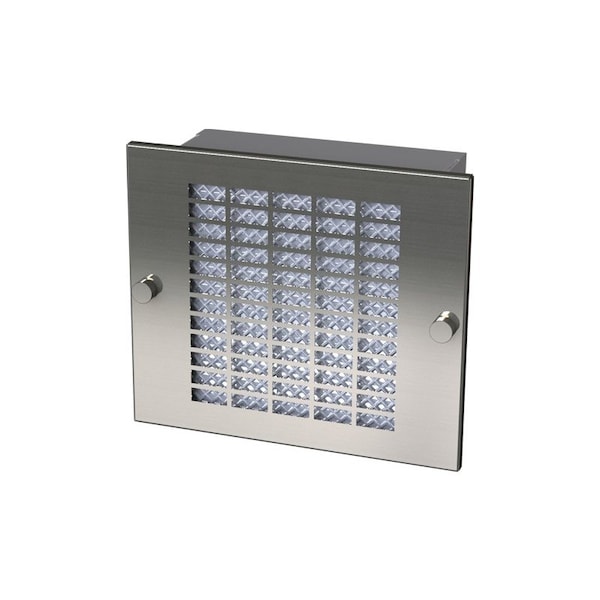

Fan Housing, 7.61 in. H x 8.88 in. W x 3-3/4 in. L
| Item | Fan Housing |
|---|---|
| Dimension | 7.61 in. H x 8.88 in. W x 3-3/4 in. L |
| Height | 7.61 in |
| Width | 8.88 in |
| Material | Polyester, Aluminum, Steel, Stainless Steel |
| Color | Gray |
| Finish | Powder Coated |
| Construction | UL Listed Motor |
| Application | Designed for use in enclosures that require cooling but have limited space. Consists of a washable aluminum filter, steel air plenum, removable stainless steel grille, single phase fan, and approximately 14 inch of lead wire. Grille has captivated thumbnuts for easy access to the filter from the outside. Fan is available in 115 or 230 volt AC, 60/50 Hertz (HZ) single phase or 24 VDC. Air plenum is ANSI-61 gray urethane polyester powder coated. |
| Depth | 3-3/4 in |
| Description | Assembly, Fan Housing (6in.) |
| Notes | For use with UL General purpose Type 1 applications; UL Listed Motor File # E137077 Mechatronics, E208866 PTI Pelko Motor; Motor w/ Thermal Protection |
| Length | 3-3/4 in |
| Package Quantity | 1 |
