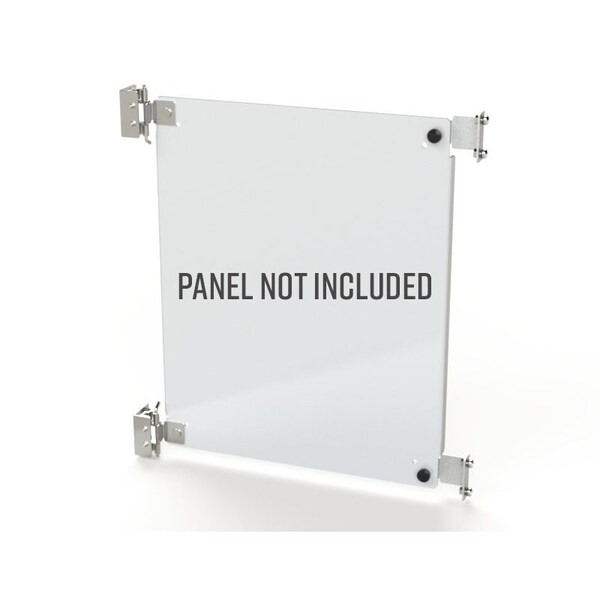

Panel, 5 in. H x 6 in. W x 2 in. L, Steel, 2 PK
| Item | Panel |
|---|---|
| Dimension | 5 in. H x 6 in. W x 2 in. L |
| Height | 5 in |
| Width | 6 in |
| Type | Swing Out |
| Material | Steel |
| Length | 2 in |
| Description | Kit, Swing-Out Panel Mounting |
| Depth | 2 in |
| Application | Swing out panel kits consist of heavy gauge brackets and hinges. Installed by drilling small hole in the side of the enclosure and bolting the bracket in place. Sealing washers are provided to ensure that the enclosure will meet original standards after installation. For use in any NEMA 4 & 12 LP - SS for 4X style wall mount enclosure where A x B dimensions are 12" x 12" or larger. |
| Notes | Cutout will need to be added for clearance of Defeater and defeater hook when use in Flange mount disconnect enclosure |
| Package Quantity | 2 |
