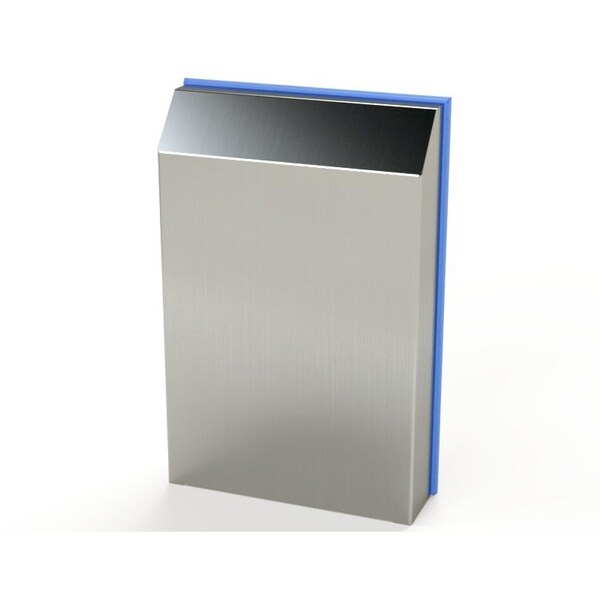

Protection Hood, 9.10 in. H x 5.90 in. W x 1.60 in. L, 304 Stainless Steel
| Item | Protection Hood |
|---|---|
| For Use With | Type 12 Fan and Filter Packages |
| Dimension | 9.10 in. H x 5.90 in. W x 1.60 in. L |
| Height | 9.1 in |
| Width | 5.9 in |
| Material | 304 Stainless Steel |
| Finish | Brushed |
| NEMA Enclosure Type | NEMA 12, NEMA 4X, NEMA 4, NEMA 3R, NEMA 13 |
| Standards | NEMA Type 3R, 4, 4X, 12 and Type 13; UL Listed Type 3R, 4, 4X and 12; CSA Type 4, 4X and 12; IEC 60529; IP 66 |
| Depth | 1.6 in |
| Notes | UL Listed Type 3, 3R, 4, 4X and 12; File number E498756; IEC IP 65 |
| Description | Protection Hood. Hose-proof |
| Application | Designed for use in conjunction with the Type 12 Fan and Filter Packages to increase the ingress protection rating of the assembly to a 4X; Sanitary FDA compliant gaskets that make it easy to detect contamination; Removable rain hood for maintenance and replacement of filter without tools; Protect devices and ventilation against wind blown dust, rain, splashing water, hose direct water and corrosion. |
| Length | 1.6 in |
| Package Quantity | 1 |
