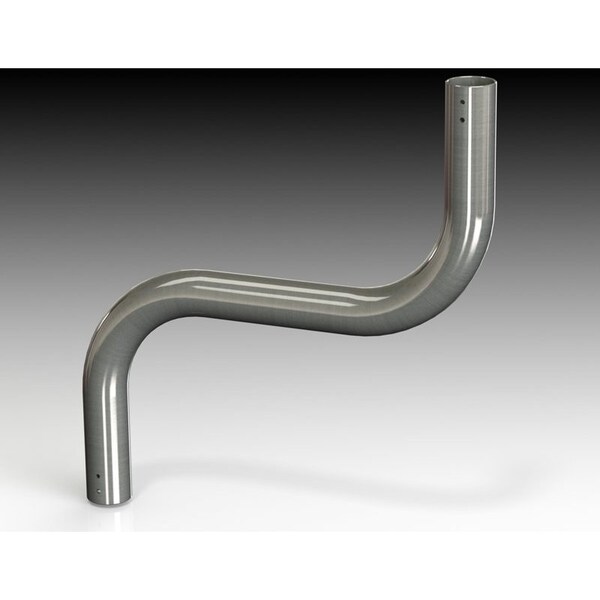

S Profile Tube, 23.62 in. H x 19.68 in. W x 2.36 in. L, 304 Stainless Steel
| Item | S Profile Tube |
|---|---|
| For Use With | SCE HMI enclosures |
| Dimension | 23.62 in. H x 19.68 in. W x 2.36 in. L |
| Height | 23.62 in |
| Width | 19.68 in |
| Material | 304 Stainless Steel |
| Finish | Brushed |
| Depth | 2.36 in |
| Construction | 304 Stainless Steel couplings; 304 Stainless Steel tubes; Rotating couplings have adjustable tensioner brakes to control movement while in use; O-Ring Gaskets at all connections maintain oil and water tight seal; Continuous closed tube - S, J and I shape designs; Closed tube acts as conduit for feeding wiring; Rigid, durable bearing in all rotating couplings withstand the stress of continuous use; Removable access covers on all couplings with 90 degree turn; Stainless Steel Hardware included for installation of coupling to tube. |
| Notes | Nema 4X |
| Application | Designed for use with the SCE HMI; enclosures, allows operators to; easily move or position an HMI to an; ergonomic and comfortable working; position. Heavy duty and reliable; construction. Suspension Systems; can be assembled in a multitude of; configurations that allow for machine; mount, wall mount, top mount, and; floor mount options. |
| Description | Stainless Steel S Profile Tube |
| Length | 2.36 in |
| Package Quantity | 1 |
