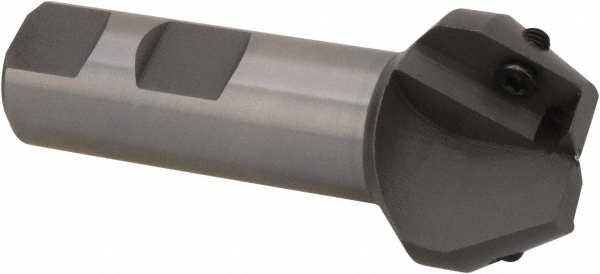

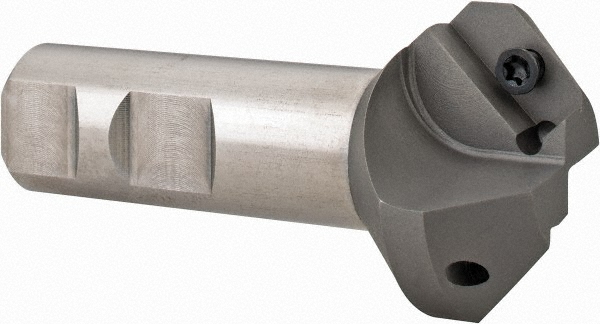

A495..Mxx Toolholder, 73.2mm OAL
| Minimum Cutting Diameter (Decimal Inch) | 0.5200 |
|---|---|
| Minimum Cutting Diameter (mm) | 13.21 |
| Maximum Cutting Diameter (mm) | 24.61 |
| Maximum Cutting Diameter (Decimal Inch) | 0.9690 |
| Shank Diameter (mm) | 15.88 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 2.8820 |
| Overall Length (mm) | 73.20 |
| Toolholder Style | A495..Mxx |
| Maximum RPM | 13600 |
| Head Length (Decimal Inch) | 0.8070 |
| Head Length (mm) | 20.50 |
| Shank Length (Decimal Inch) | 2.0748 |
| Shank Length (mm) | 52.70 |
| Complete Insert Compatibility | 495-09T3M-XL |
| UNSPSC Code | 23291600 |
| Number Of Flutes | 1 |
| End Mill Material | Steel |
| Coolant Through | Yes |
| Included Angle Degree | 45 |
| Shank Type | Weldon Flat |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 47184304 |
