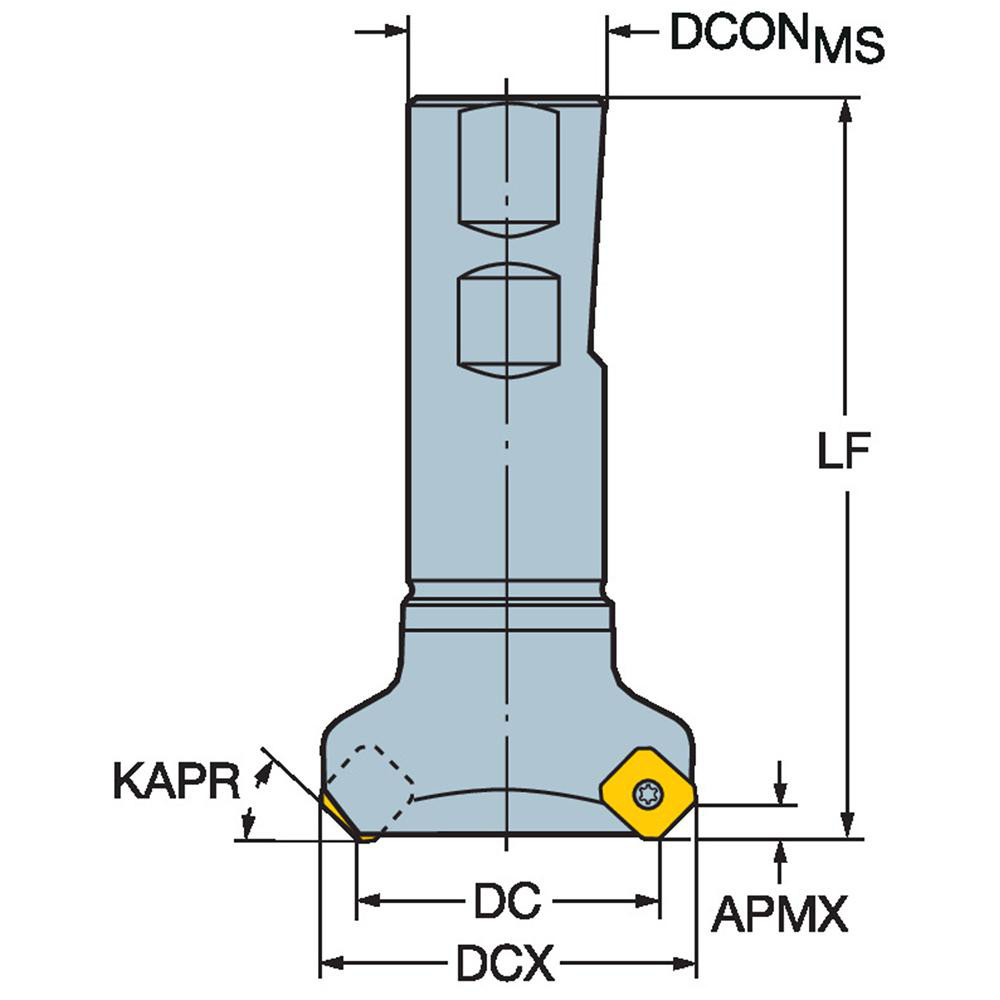

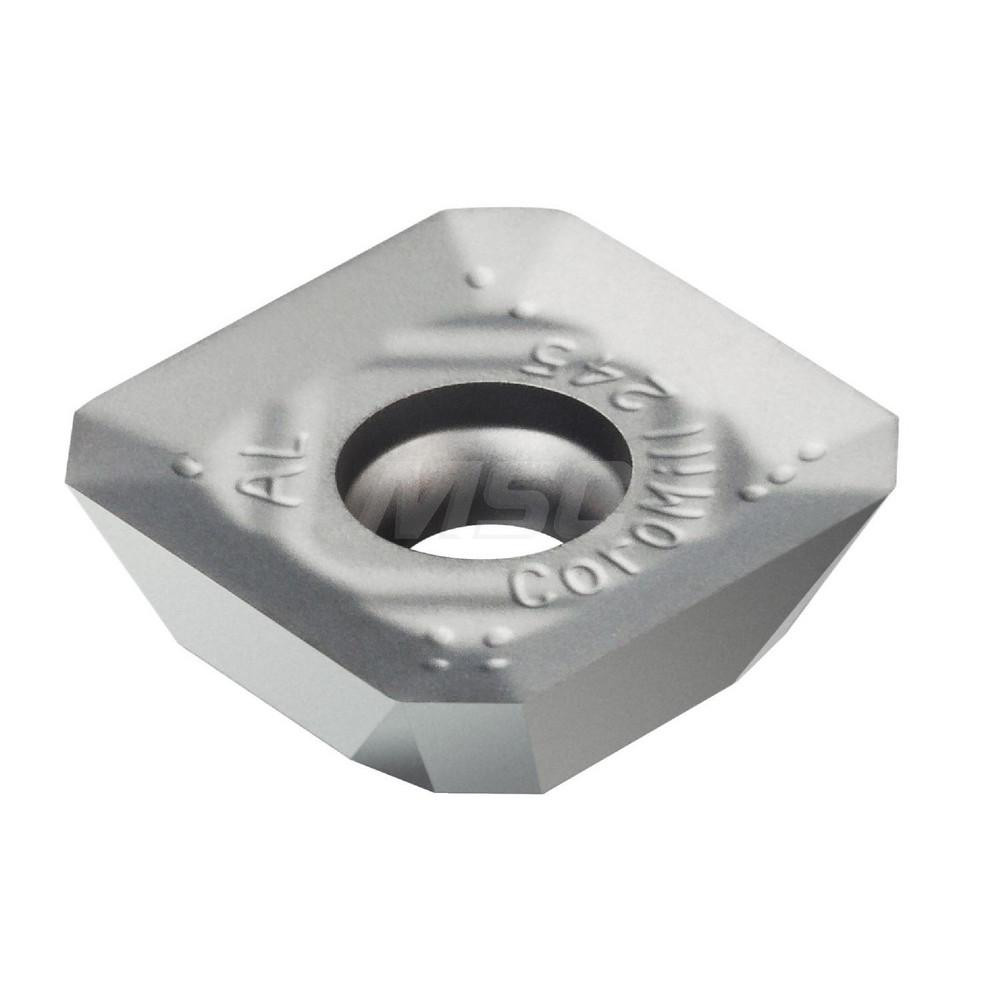

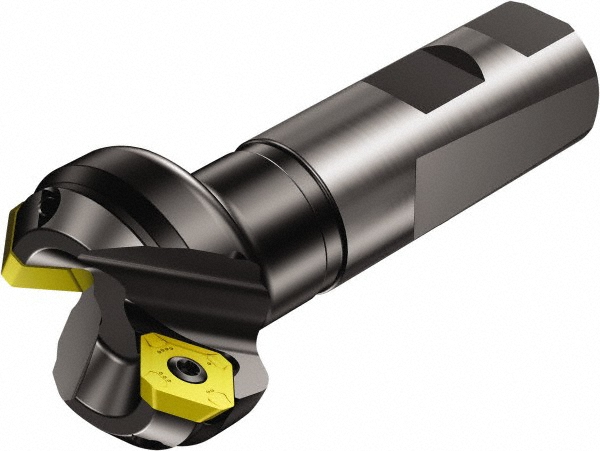

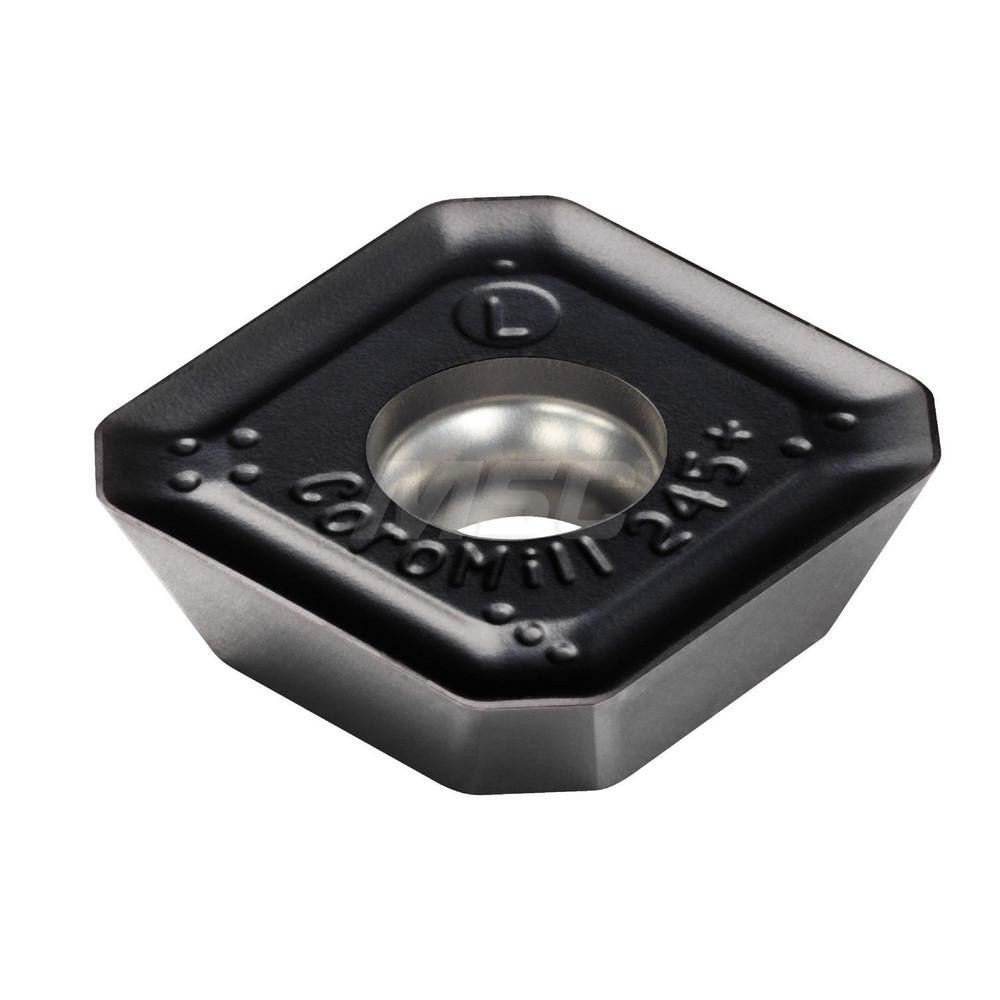

Takes 2 Inserts, R245-12T3.. Insert, Right Hand Cut, Series CoroMill 245
| Minimum Cutting Diameter (Decimal Inch) | 1.2500 |
|---|---|
| Minimum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Cutting Diameter (Decimal Inch) | 1.7420 |
| Maximum Depth of Cut (Decimal Inch) | 0.2400 |
| Compatible Insert Size Code | R245-12T3 |
| Cutter Style | RA245..MNxx |
| Cutting Direction | Right Hand |
| Series | CoroMill 245 |
| Overall Height (Decimal Inch) | 3.8583 |
| Maximum RPM | 18250 |
| Complete Insert Compatibility | R245-12T3.. |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 2 |
| Coolant Through | No |
| UNSPSC Code | 23291600 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 33265125 |
