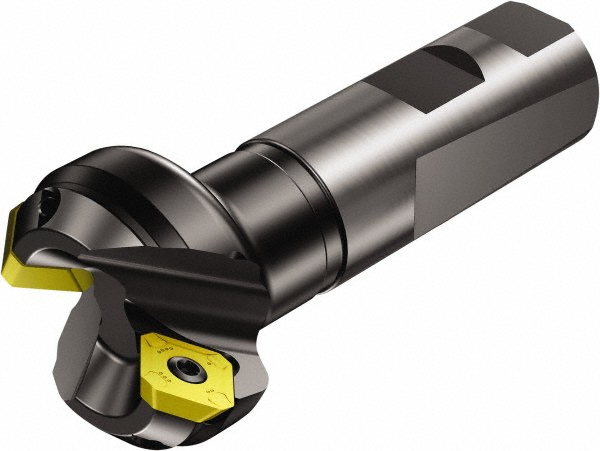

Takes 3 Inserts, 45° Lead Angle, 98mm High, R245-12T3.. Insert Style, Series CoroMill 245

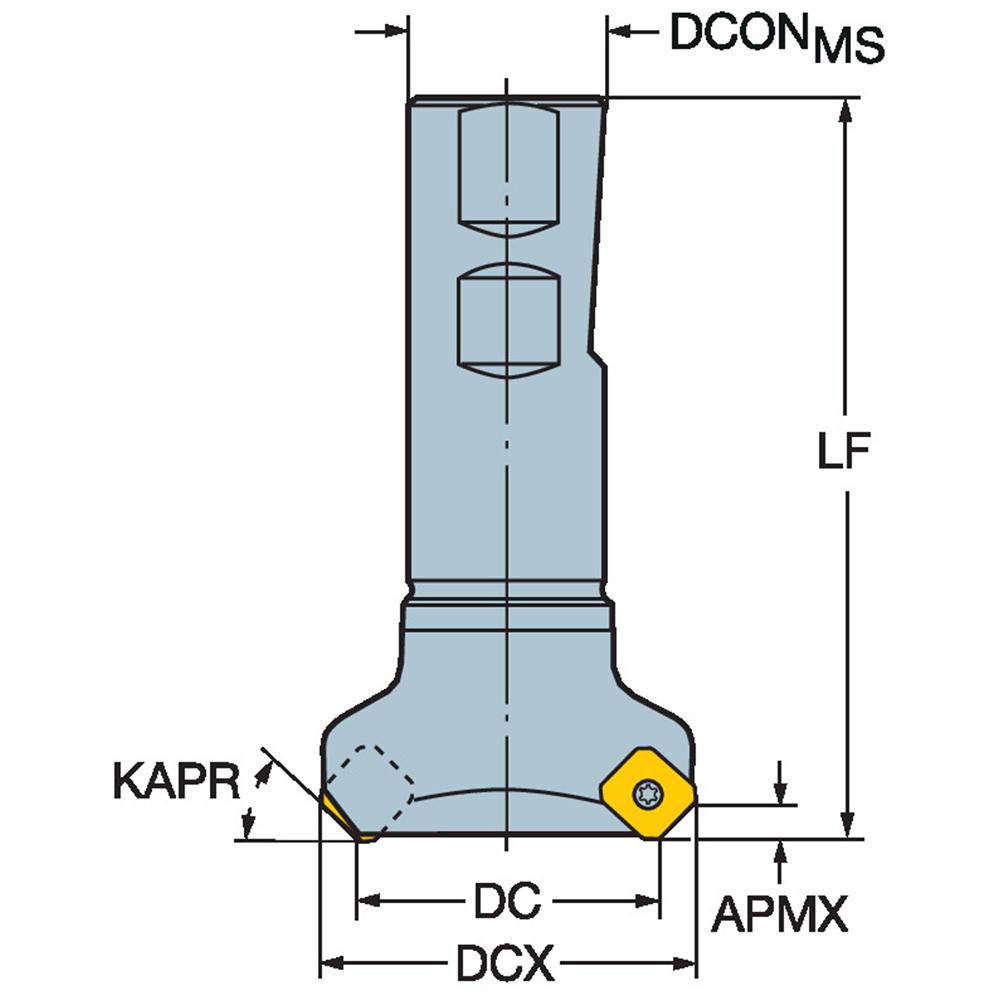

| Maximum Cutting Diameter (Inch) | 1-1/4 |
|---|---|
| Maximum Cutting Diameter (mm) | 31.75 |
| Maximum Depth of Cut (mm) | 6.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.2400 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |

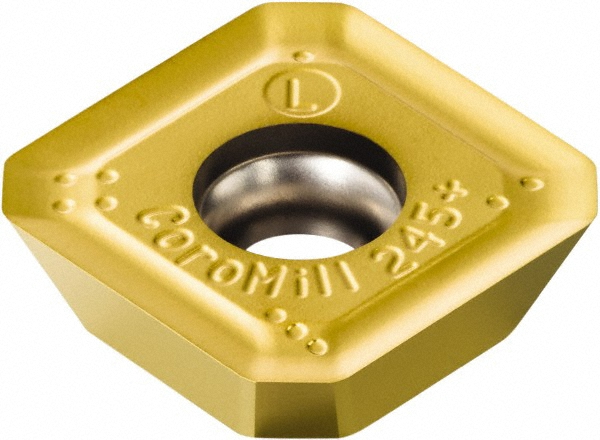

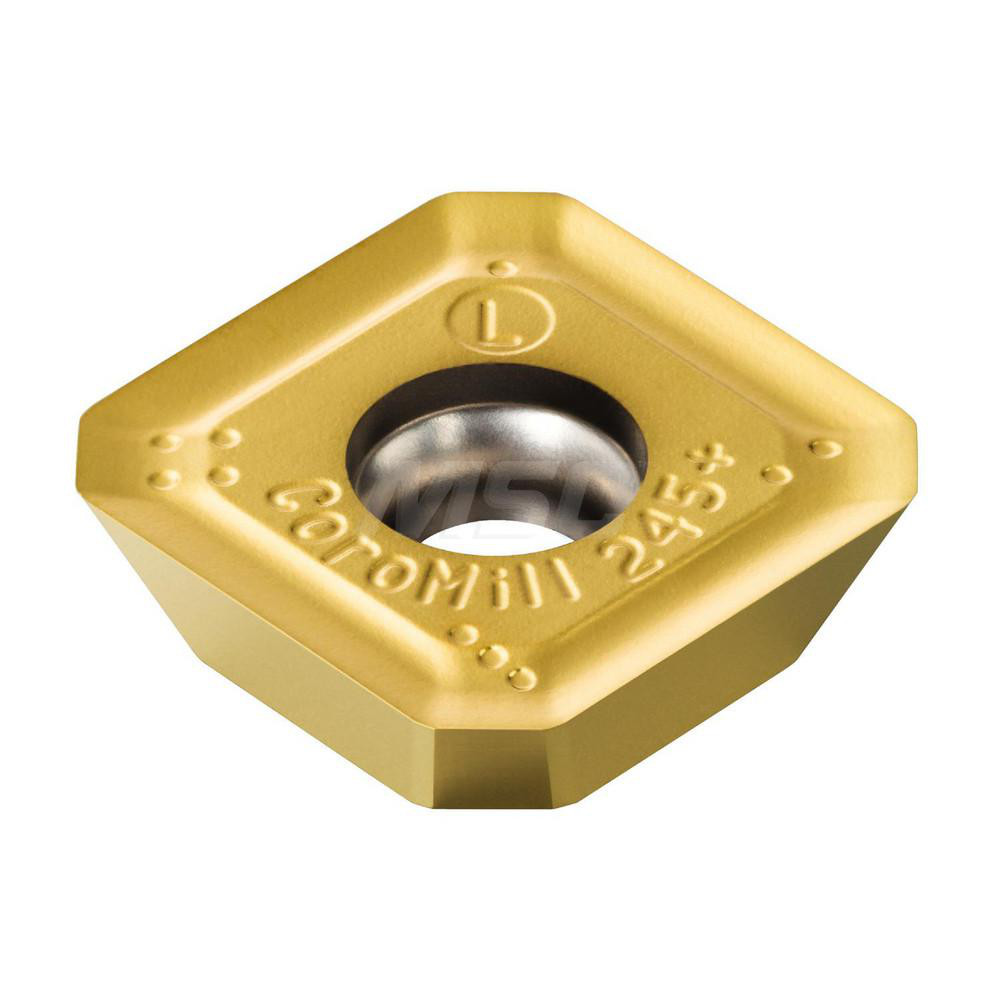

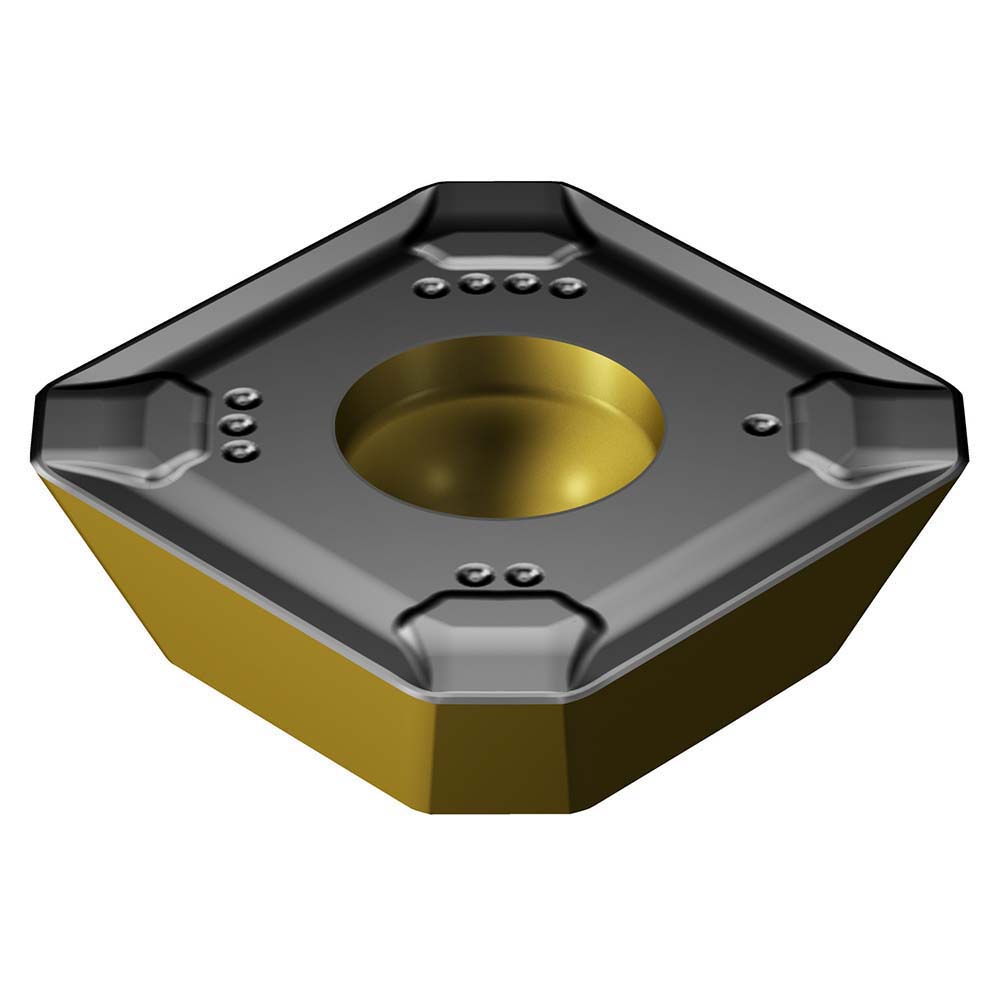

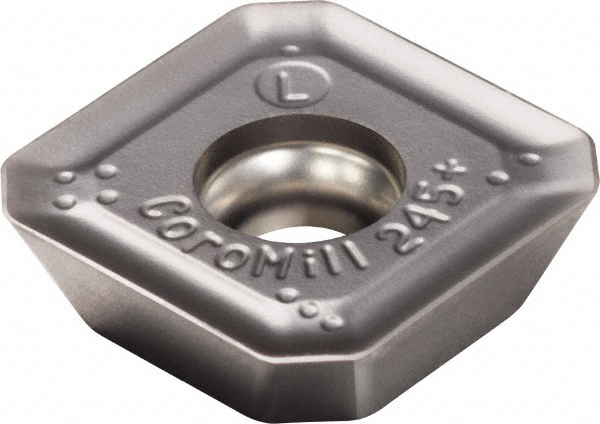

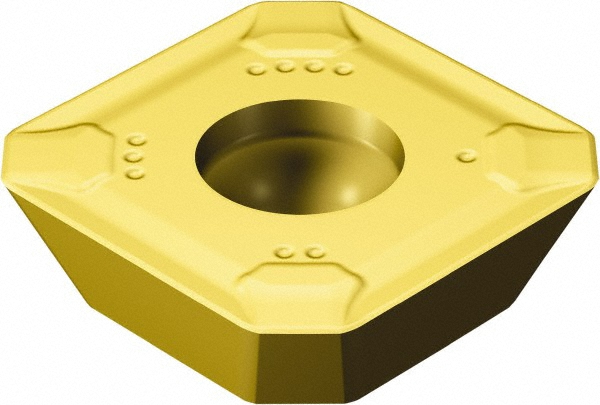

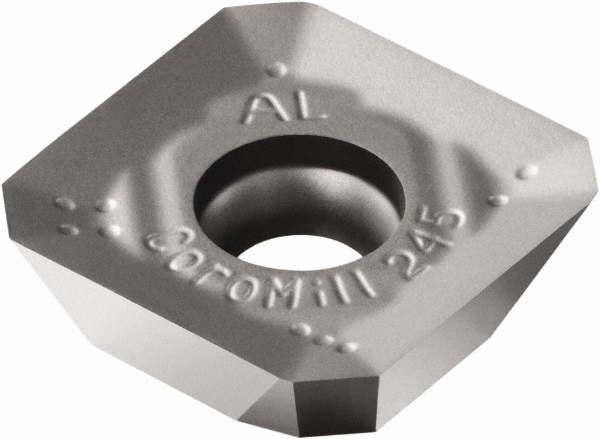

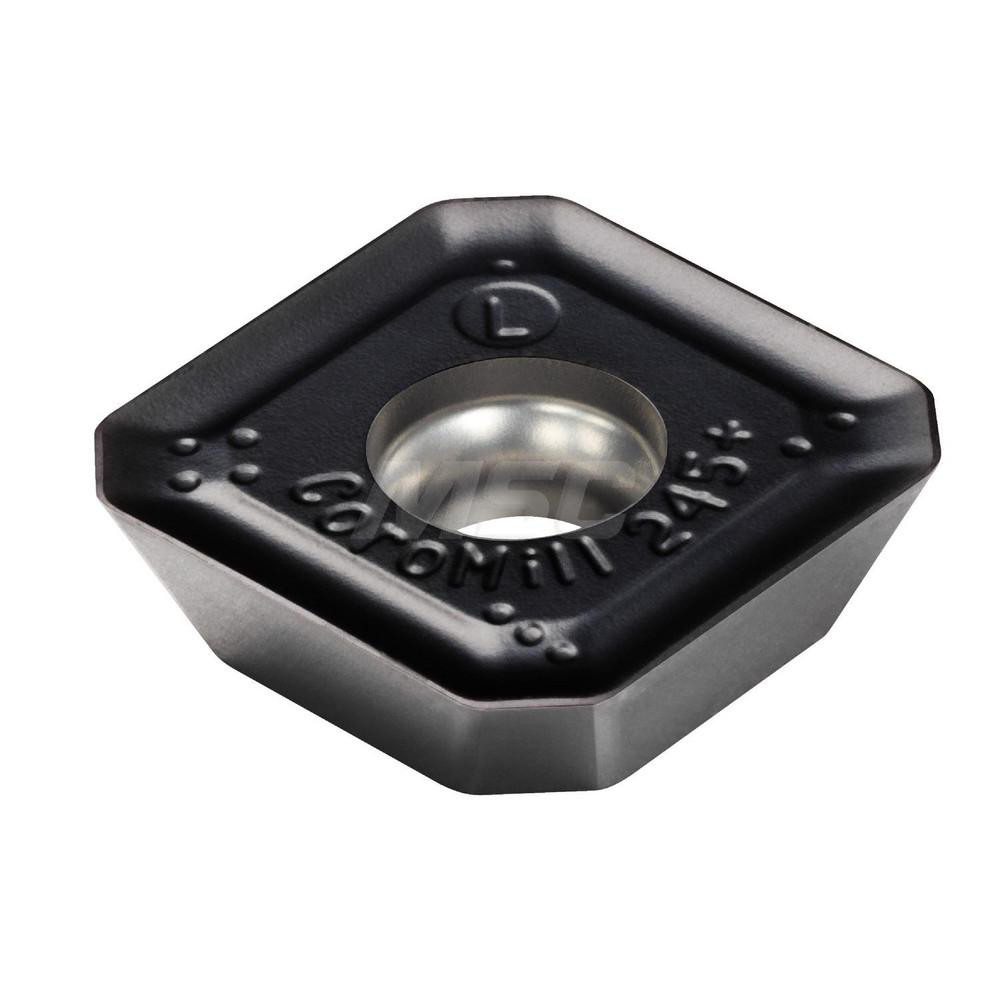

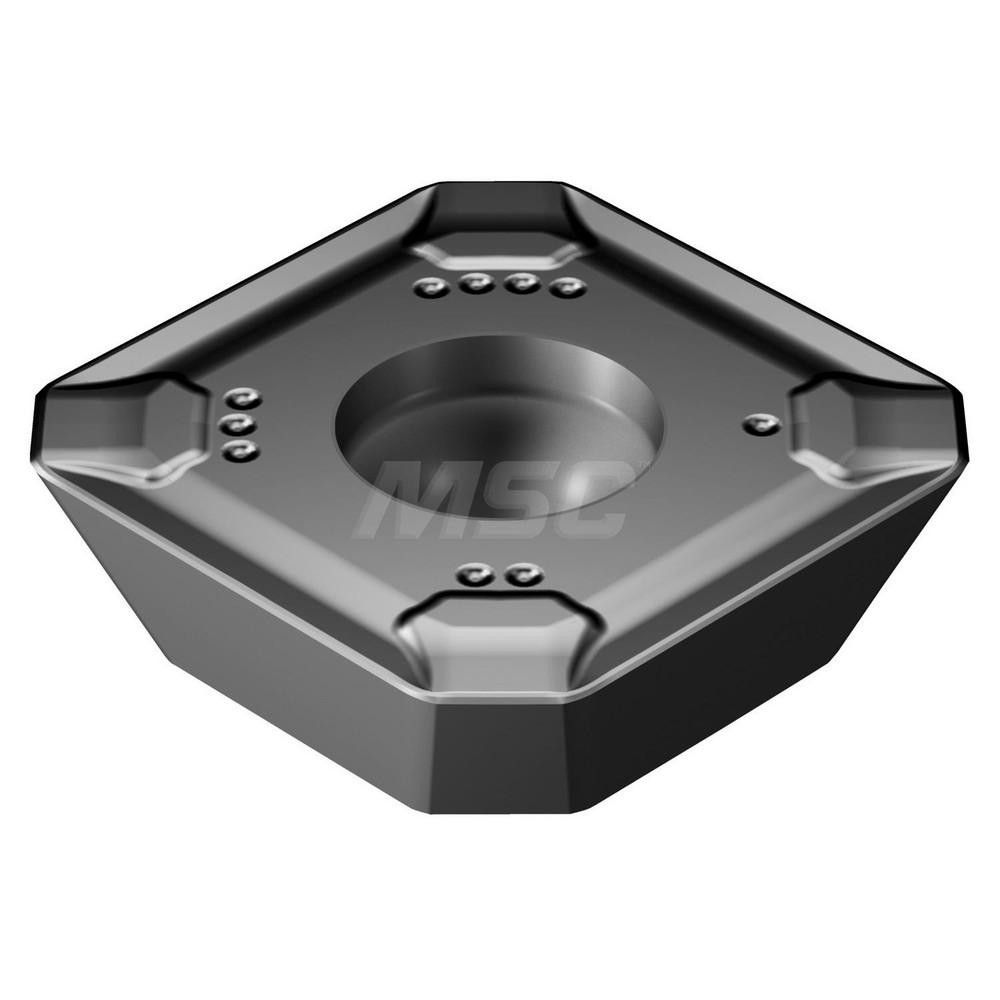

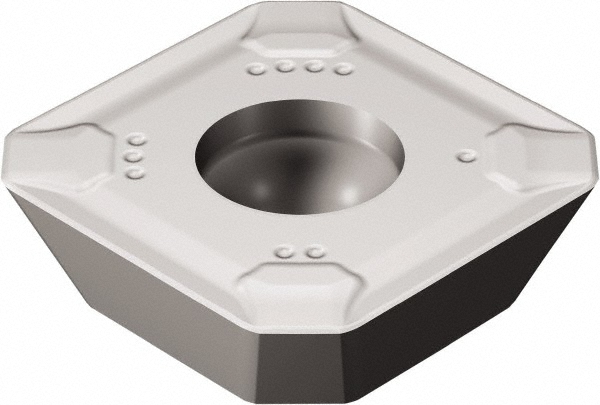

| Compatible Insert Size Code | R245-12T3.. |
| Cutter Style | RA245 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 45 |
| Rake | Positive |
| Series | CoroMill 245 |
| Maximum Body Diameter (Decimal Inch) | 1.2500 |
| Overall Height (Decimal Inch) | 3.8583 |
| Hub Diameter (mm) | 25.40 |
| Hub Diameter (Decimal Inch) | 1.0000 |
| Hub Diameter (Inch) | 1 |
| Pitch Type | Close |
| Cutting Edge Length (Decimal Inch) | 0.2400 |
| Complete Insert Compatibility | R245-12T3.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 77651016 |
