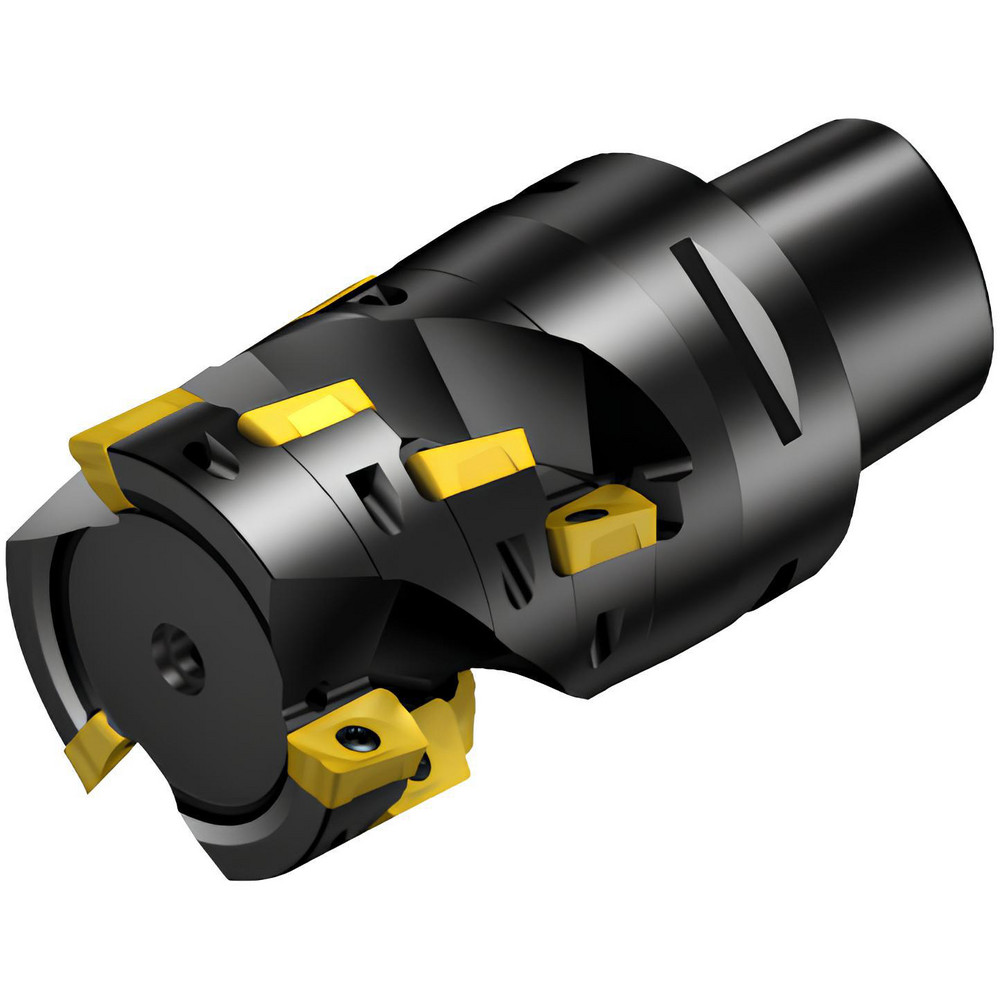

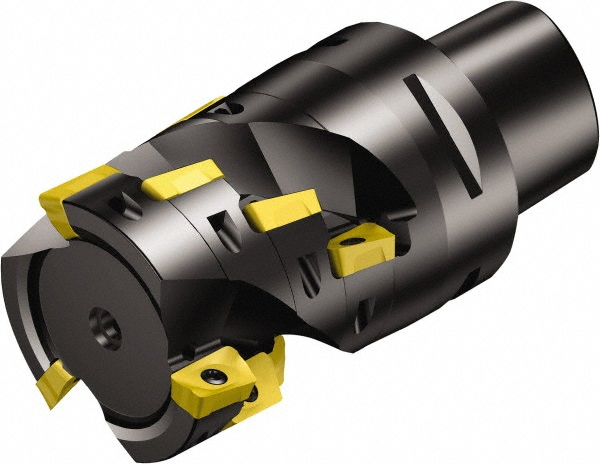

Takes 2 Inserts, 90° Lead Angle, 3.517" High, R390-11.. Insert Style, Through Coolant, Series CoroMill 390
| Maximum Cutting Diameter (Inch) | 1-1/4 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 2.1300 |
| Arbor Hole Diameter (Decimal Inch) | 1.9685 |
| Compatible Insert Size Code | R390-11.. |
| Cutter Style | RA390 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Overall Height (Decimal Inch) | 3.5170 |
| Cutting Edge Length (Decimal Inch) | 2.1300 |
| Complete Insert Compatibility | R390-11.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 2 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 49336795 |
