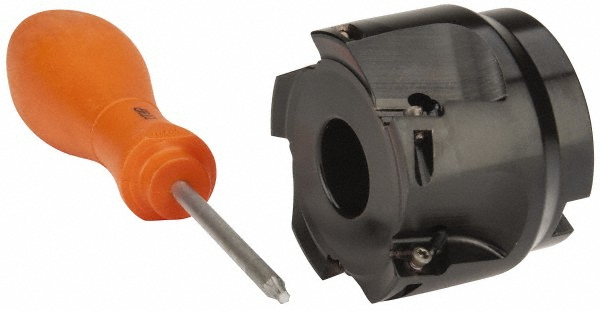

Takes 4 Inserts, 90° Lead Angle, 1.378" High, R390-11.. Insert Style, Through Coolant, Series CoroMill 390

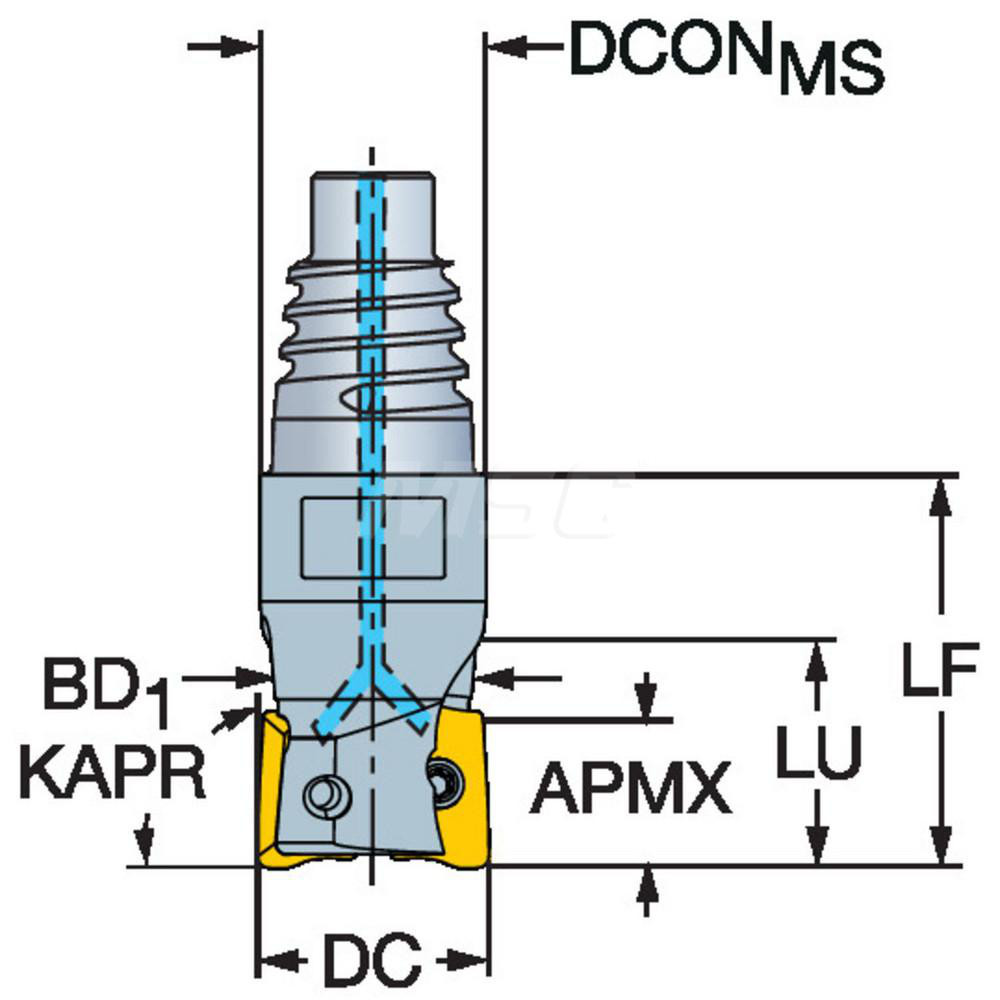

| Maximum Cutting Diameter (Inch) | 1 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Arbor Hole Diameter (Decimal Inch) | 0.9646 |
| Compatible Insert Size Code | R390-11.. |
| Cutter Style | RA390 |
| Cutting Direction | Right Hand |

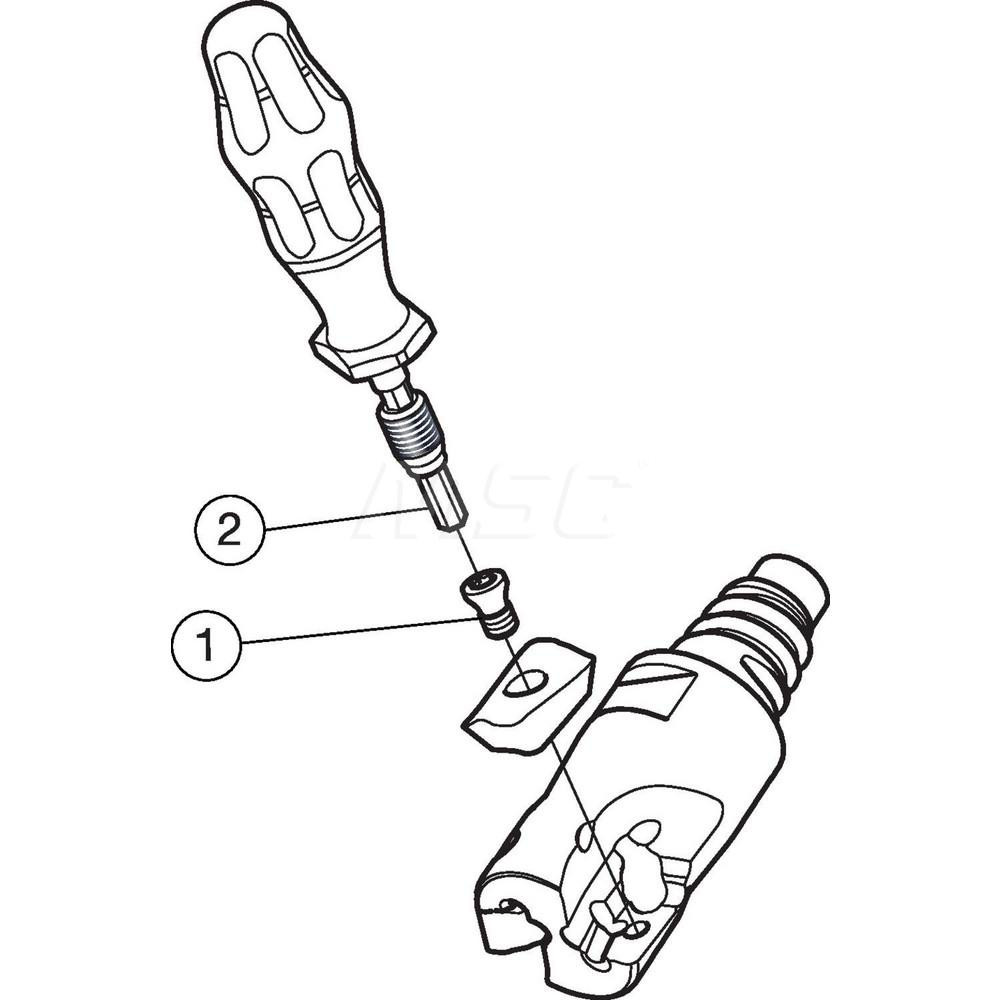

| Insert Holding Method | Screw Clamping |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Overall Height (Decimal Inch) | 1.3780 |
| Cutting Edge Length (Decimal Inch) | 0.3940 |
| Complete Insert Compatibility | R390-11.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 33182783 |
