Takes 2 Inserts, R210-09 04 12M-KM, R210-09 04 12M-MM, R210-09 04 12M-PM, R210-09 04 14E-KM, R210-09 04 14E-MM, R210-09 04 14E-PM Insert Style, R210-025A20-09M Toolholder, 7.0866" OAL, 0.315" Max Depth of Cut

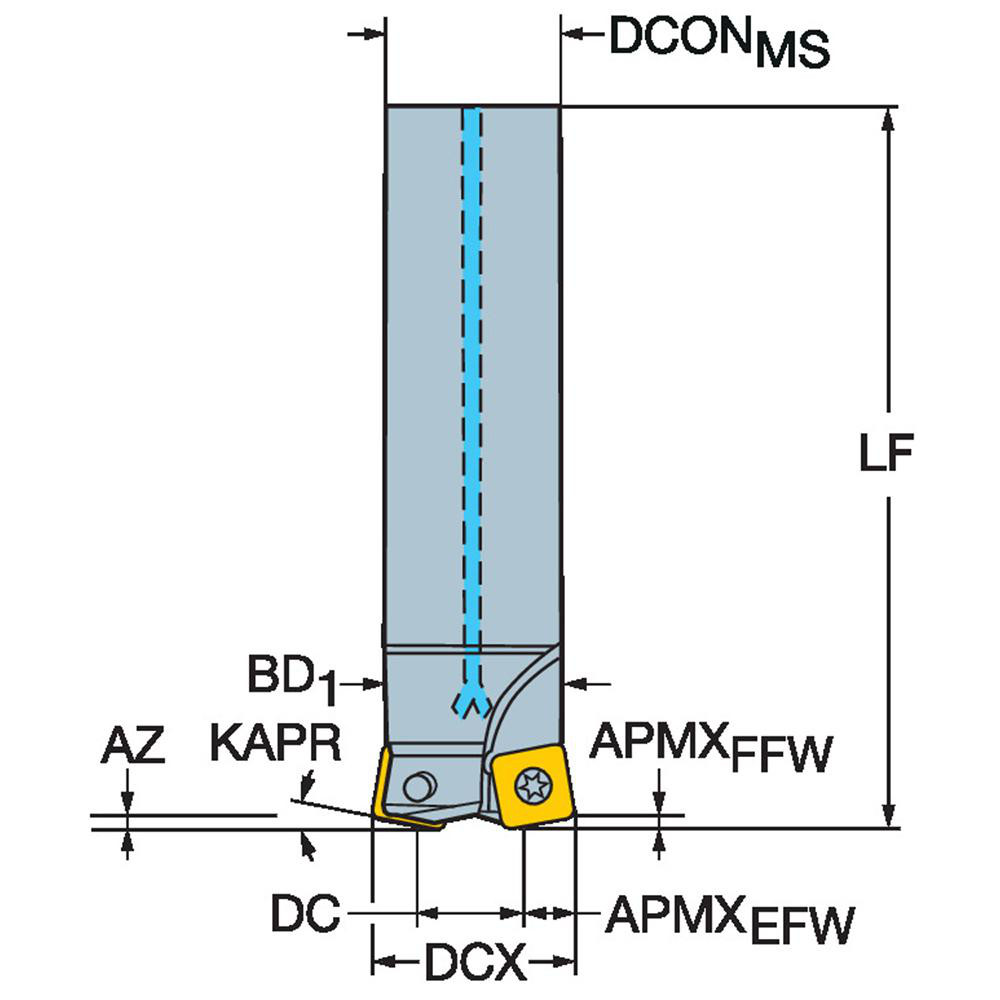

| Cutting Diameter (Decimal Inch) | 0.9844 |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 8.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Number Of Cutter Inserts | 2 |
| Insert Style | R210-09 04 14E-KM; R210-09 04 12M-KM; R210-09 04 12M-MM; R210-09 04 12M-PM; R210-09 04 14E-PM; R210-09 04 14E-MM |

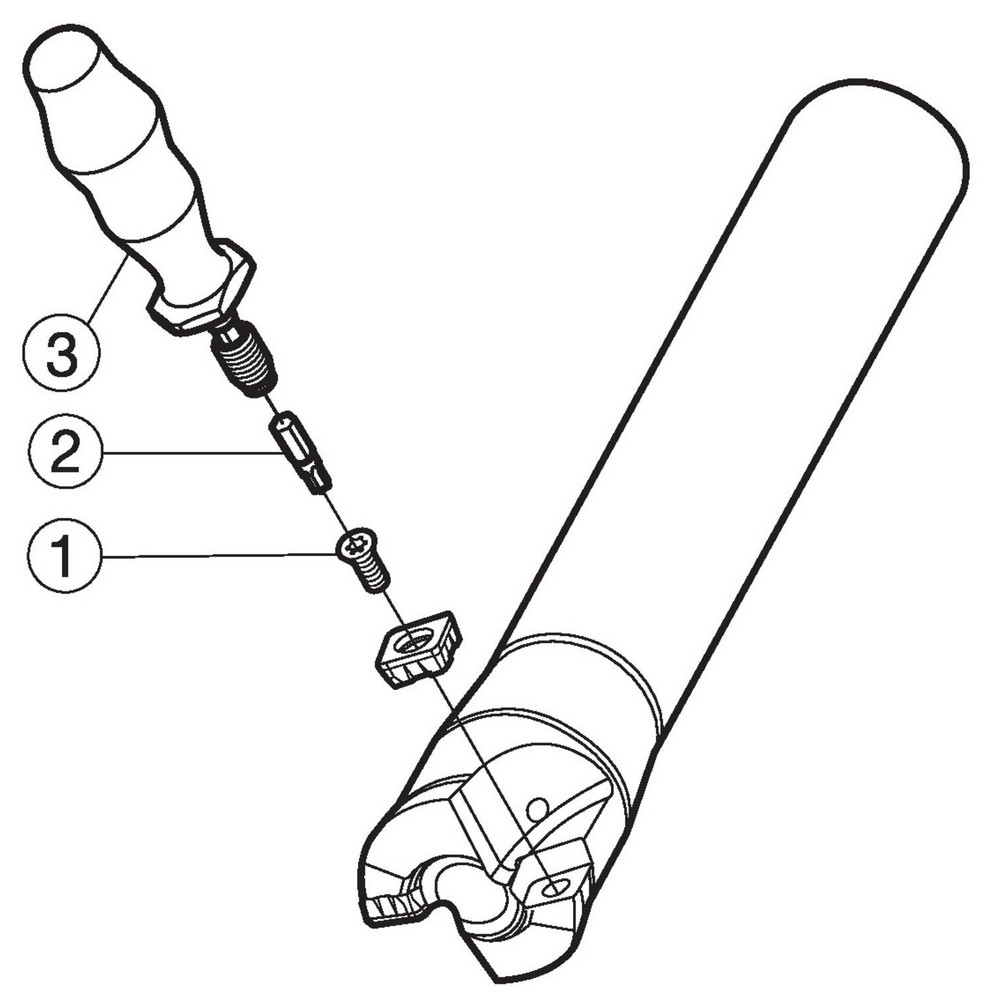

| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 7.0866 |
| Toolholder Style | R210-025A20-09M |
| UNSPSC Code | 23291600 |
| ISO Number | R210-025A20-09M |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 54952205 |
