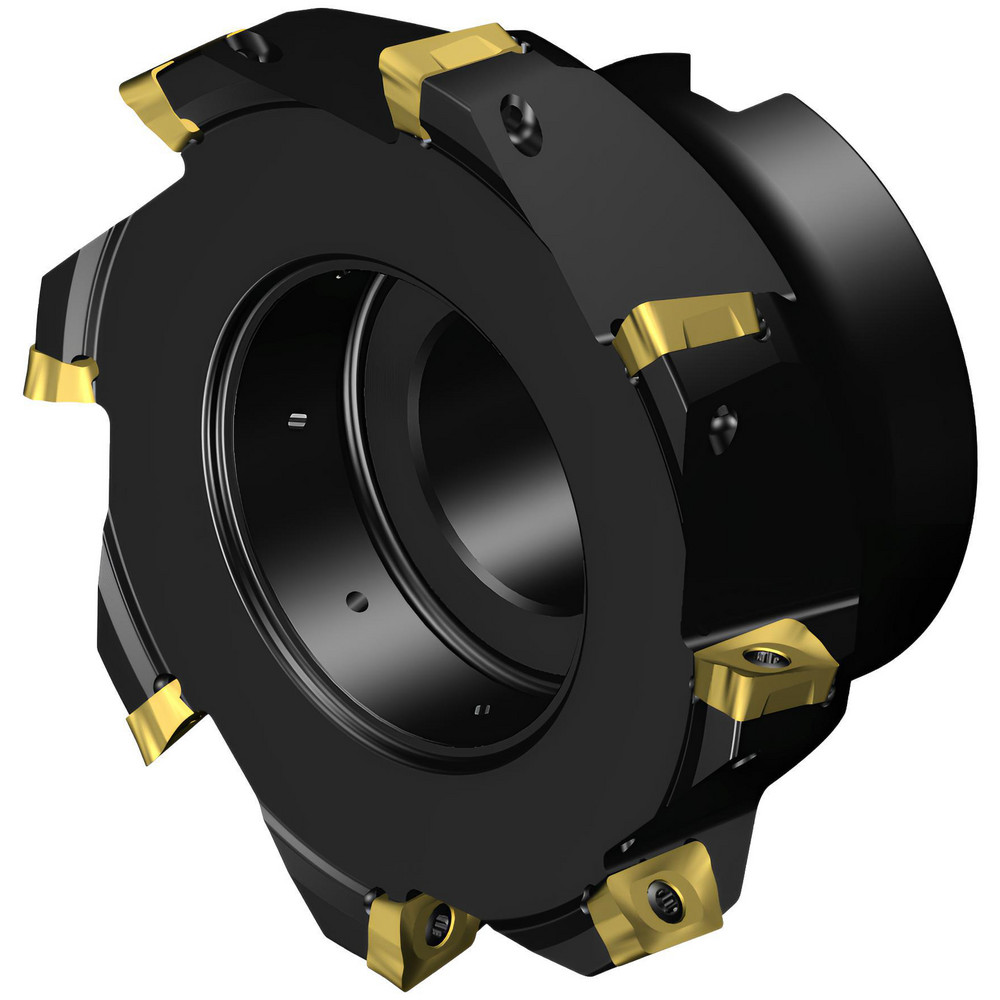

Takes 7 Inserts, 90° Lead Angle, 50mm High, R390-18.. Insert Style

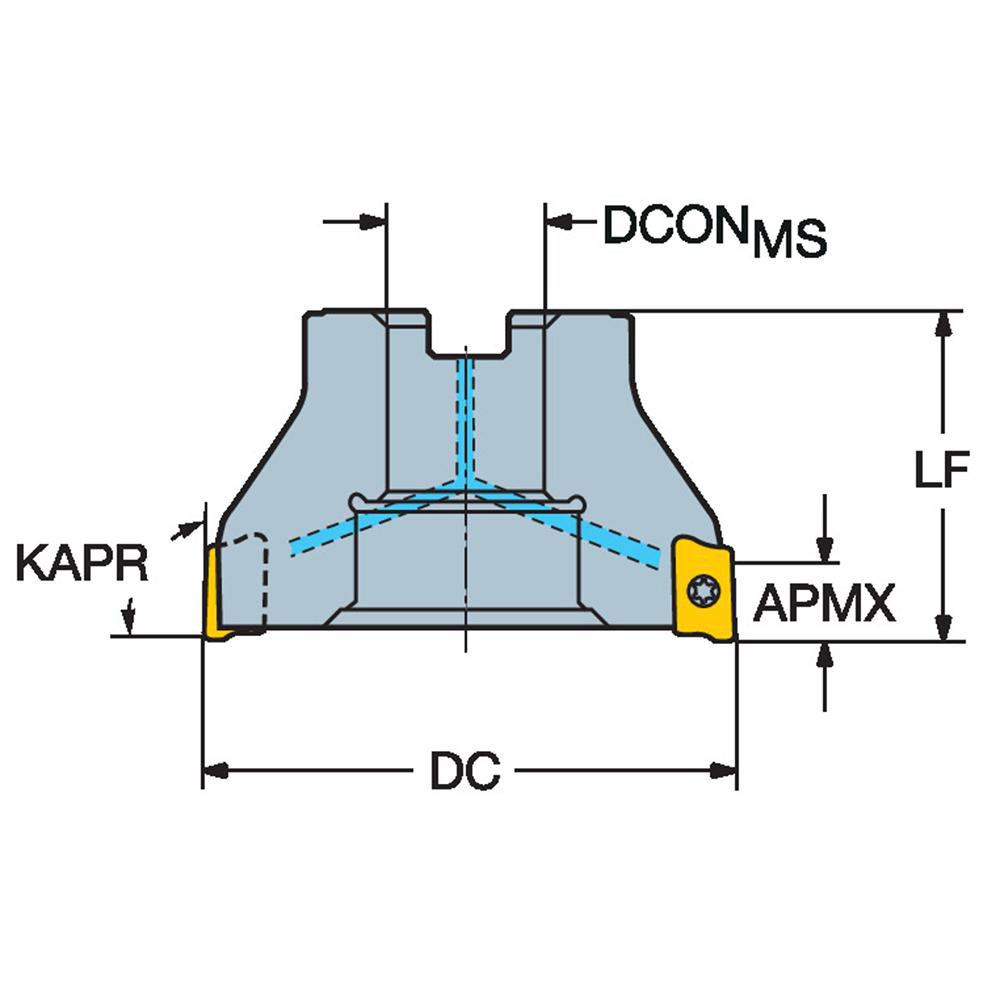

| Maximum Cutting Diameter (Decimal Inch) | 3.9370 |
|---|---|
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 15.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.6063 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Compatible Insert Size Code | R390-18.. |
| Cutter Style | RA390..Jxx |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Overall Height (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | R390-18.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Number Of Cutter Inserts | 7 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 49520745 |
