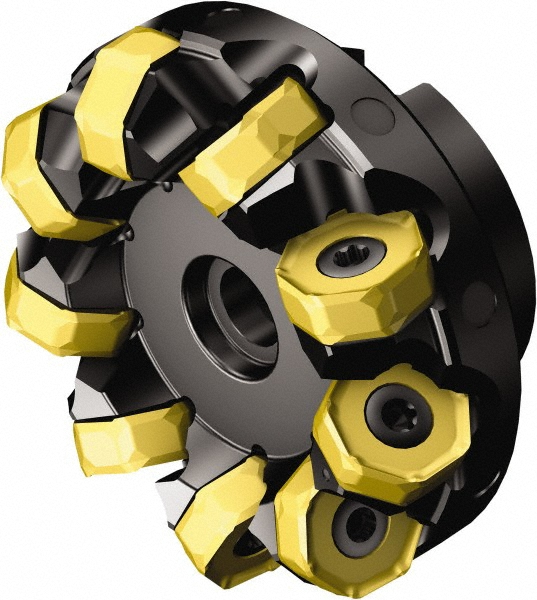

Takes 7 Inserts, 745R-2109 Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series Coromill 745
| Minimum Cutting Diameter (mm) | 100.00 |
|---|---|
| Maximum Cutting Diameter (mm) | 115.20 |
| Maximum Depth of Cut (mm) | 5.20 |
| Arbor Hole Diameter (mm) | 32.00 |

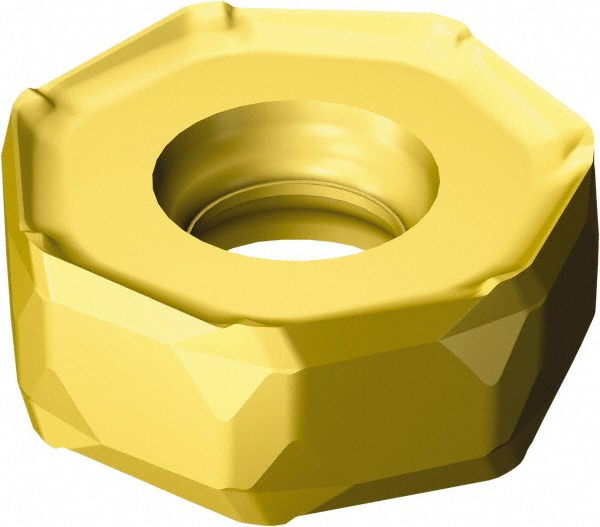

| Compatible Insert Size Code | 745R-2109 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | Coromill 745 |
| Hub Diameter (mm) | 79.00 |
| Hub Diameter (Decimal Inch) | 3.1102 |
| Overall Height (Decimal Inch) | 50.00 |
| Maximum Body Diameter (Decimal Inch) | 4.4843 |
| Maximum RPM | 4765 |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 7 |
| Coolant Through | Yes |
| Number Of Flutes | 7 |
| UNSPSC Code | 23291600 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 30613590 |
