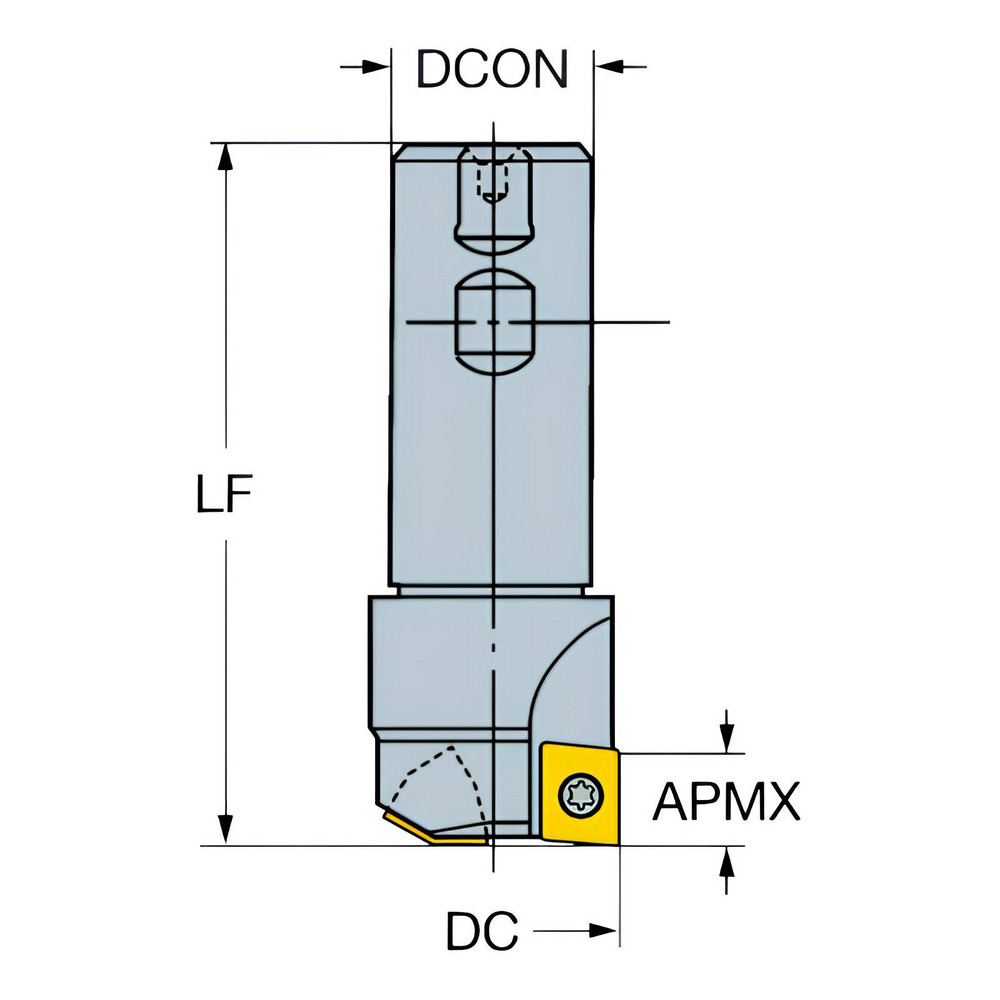

Takes 1 Inserts, 90° Lead Angle, 73mm High, R216.2-080204-1A Insert Style
| Maximum Cutting Diameter (Decimal Inch) | 0.4724 |
|---|---|
| Maximum Cutting Diameter (mm) | 12.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Compatible Insert Size Code | R216.2-080204-1A |
| Cutter Style | R216.2 (WELDON) |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | U-Max |
| Overall Height (Decimal Inch) | 2.8740 |
| Complete Insert Compatibility | R216.2-080204-1A |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Number Of Cutter Inserts | 1 |
| Country of Origin | China |
| MSC Number | MSC# 49526122 |
