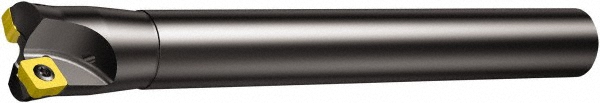

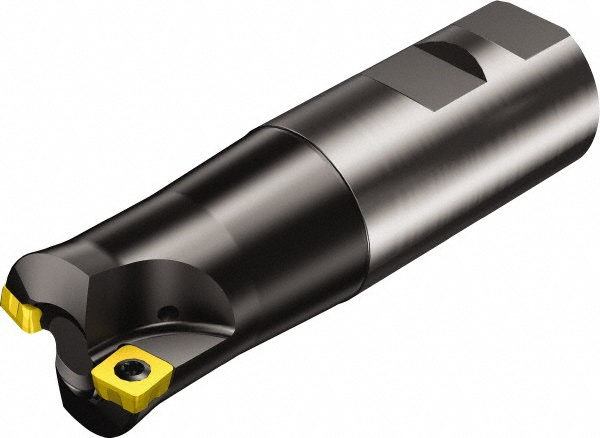

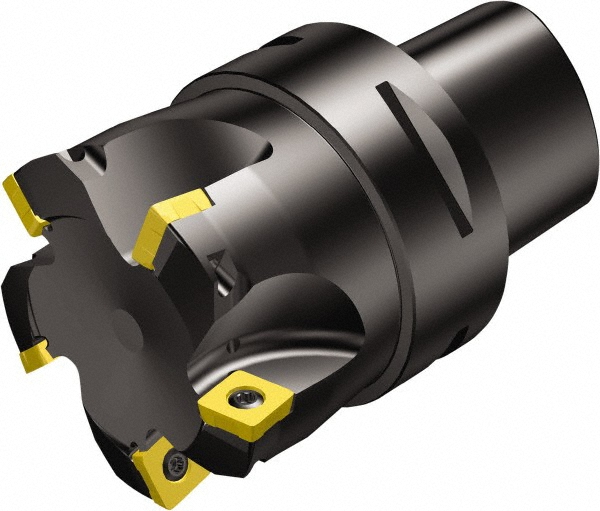

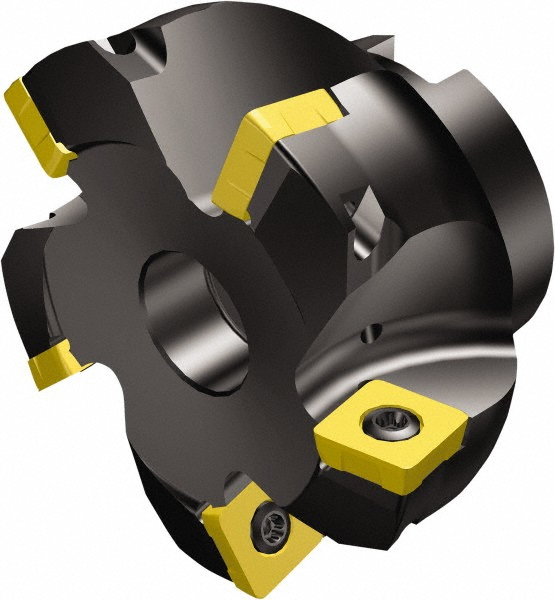

Takes 3 Inserts, 10° Lead Angle, 10" High, R210-090412M Insert Style, Through Coolant, Series CoroMill 210

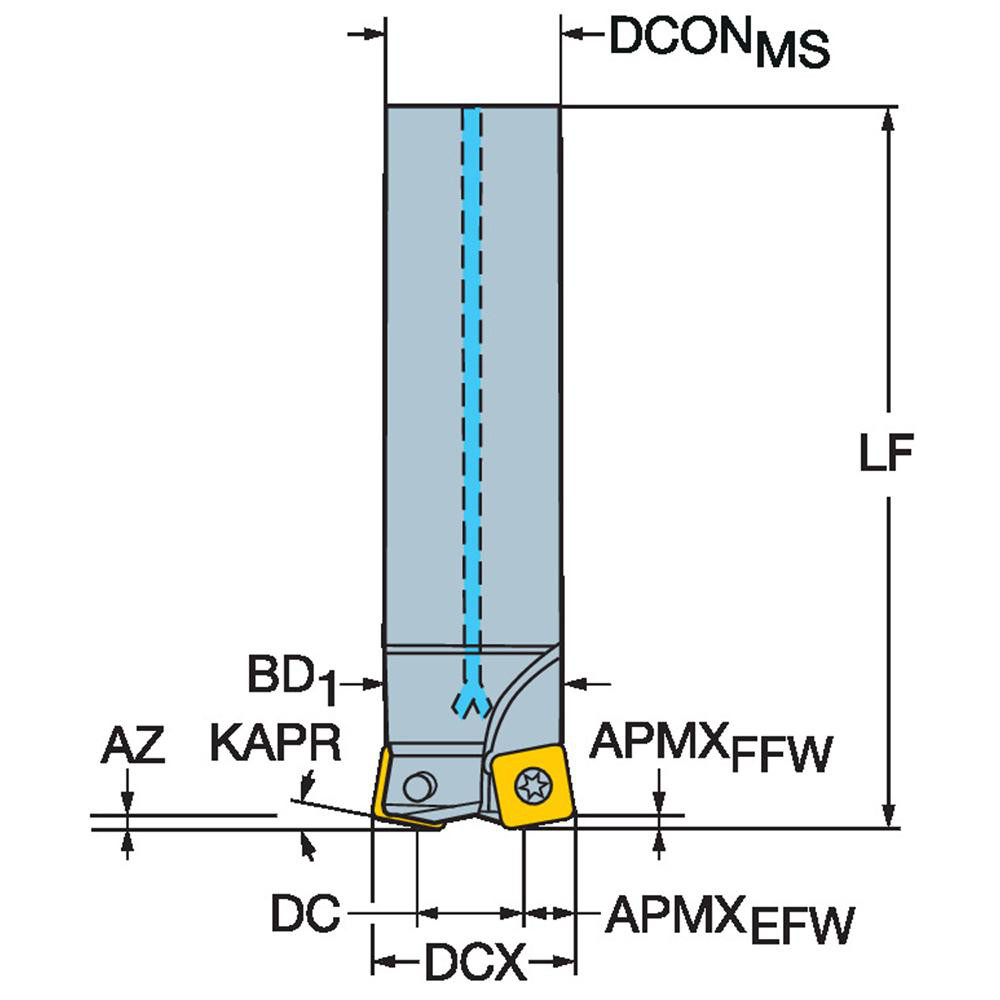

| Maximum Cutting Diameter (Decimal Inch) | 0.6949 |
|---|---|
| Maximum Cutting Diameter (mm) | 17.65 |
| Maximum Depth of Cut (mm) | 1.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |

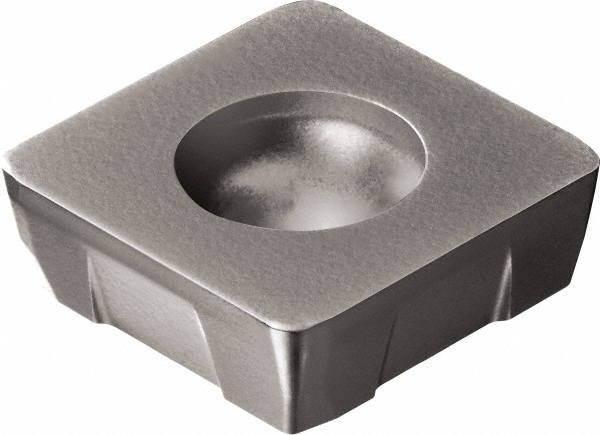

| Compatible Insert Size Code | R210-090412M |
| Cutter Style | RA210 |
| Cutting Direction | Right Hand |

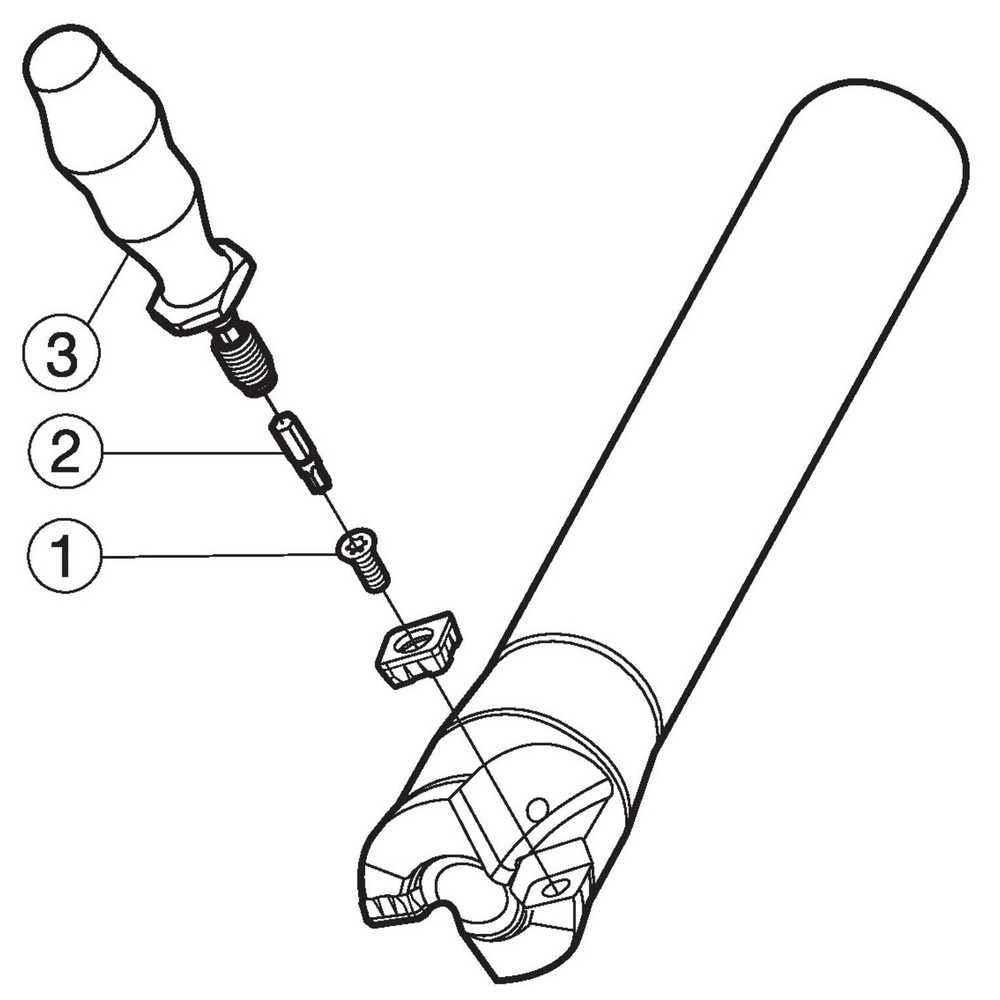

| Insert Holding Method | Screw; Clamp |
| Lead Angle | 10 |
| Rake | Positive |
| Series | CoroMill 210 |
| Maximum Body Diameter (Decimal Inch) | 0.6949 |
| Overall Height (Decimal Inch) | 10.0000 |
| Overall Height (Inch) | 10 |
| Hub Diameter (mm) | 25.40 |
| Hub Diameter (Decimal Inch) | 1.0000 |
| Hub Diameter (Inch) | 1 |
| Pitch Type | Coarse |
| Cutting Edge Length (Decimal Inch) | 0.0472 |
| Complete Insert Compatibility | R210-090412M- |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 52071156 |
