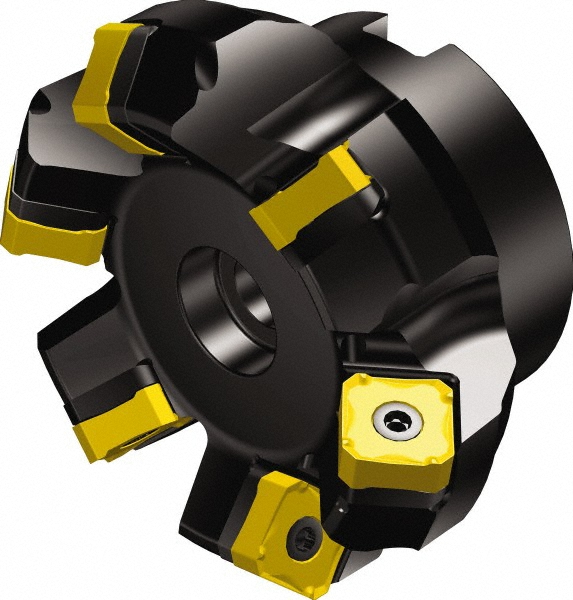

Takes 5 Inserts, 345R-13T5 Insert, Right Hand Cut, Through Coolant, Series CoroMill 345
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0540 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |

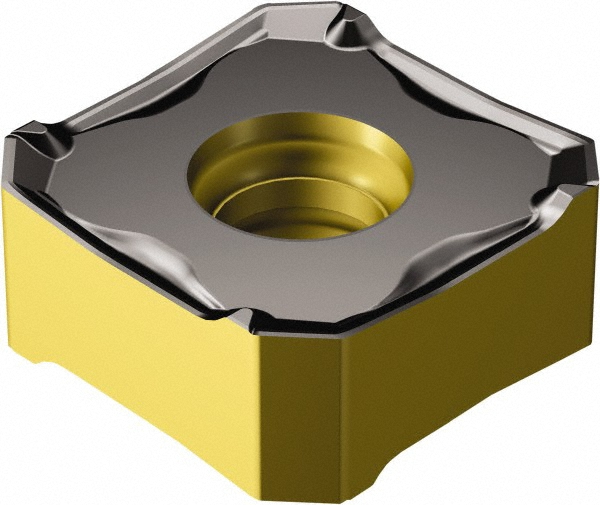

| Compatible Insert Size Code | 345R-13T5 |
| Cutter Style | A345..Rxx |
| Cutting Direction | Right Hand |
| Series | CoroMill 345 |
| Keyway Width (Decimal Inch) | 0.3839 |
| Overall Height (Decimal Inch) | 1.7717 |
| Maximum RPM | 15400 |
| Complete Insert Compatibility | 345R-13T5 |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
| UNSPSC Code | 23291600 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 54952627 |
