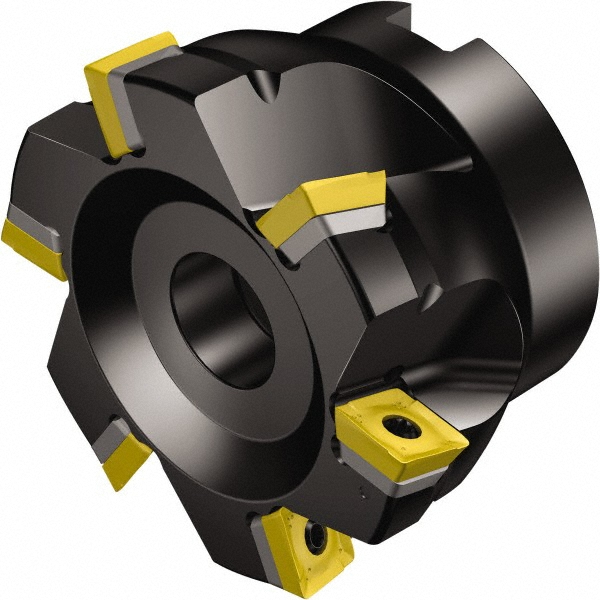

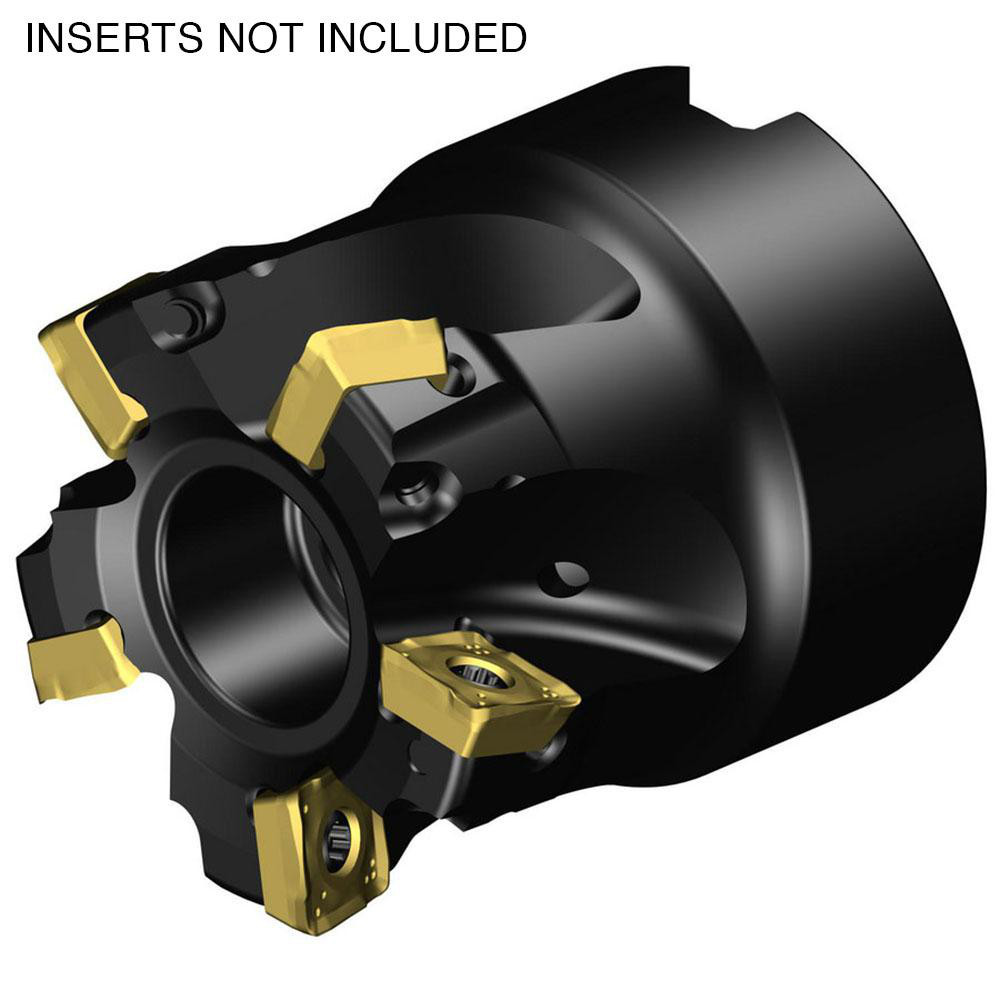

Takes 7 Inserts, 90° Lead Angle, 1.575" High, 490R-08T308 Insert Style, Through Coolant, Series CoroMill 490

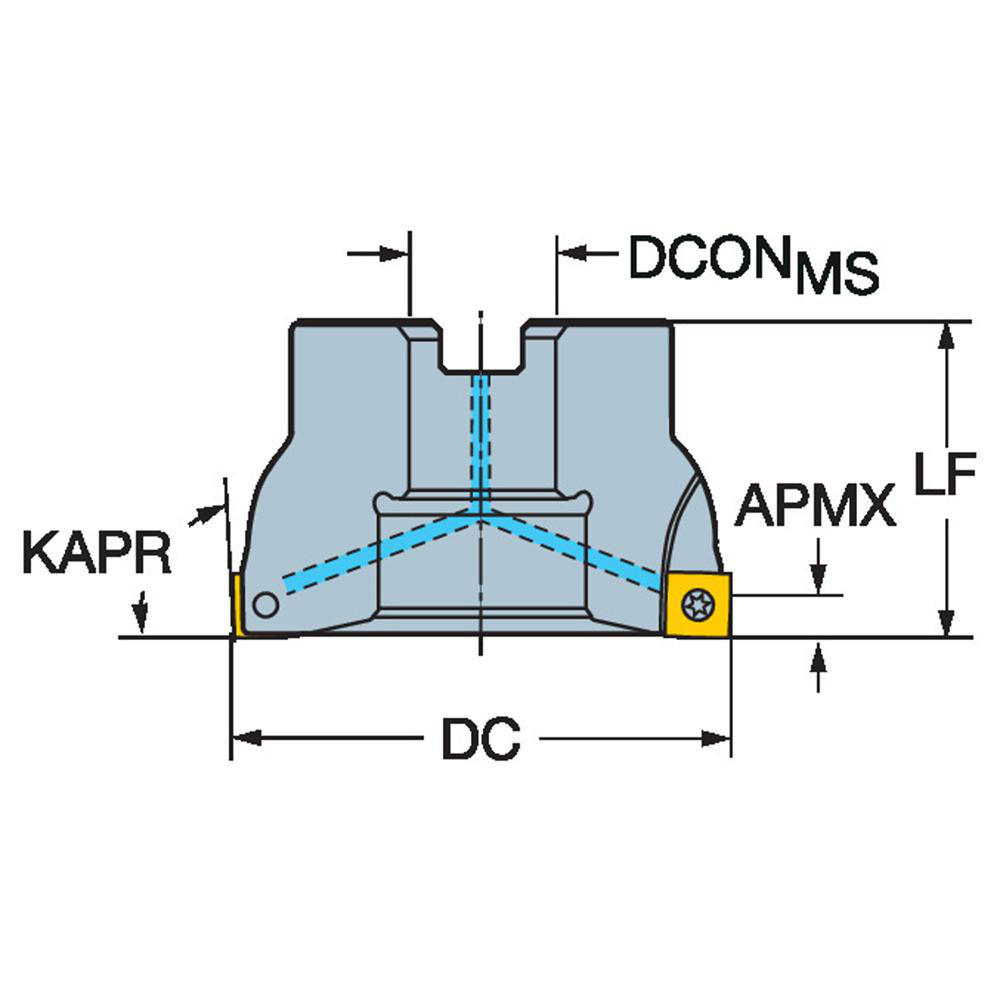

| Maximum Cutting Diameter (Inch) | 2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |

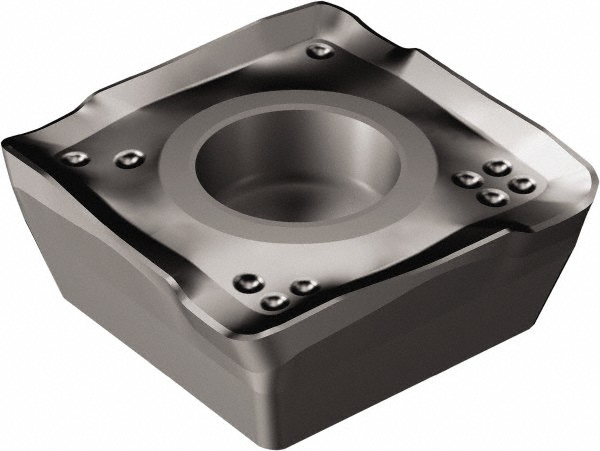

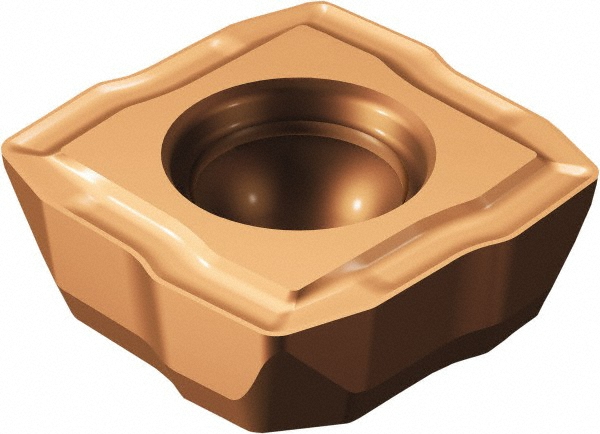

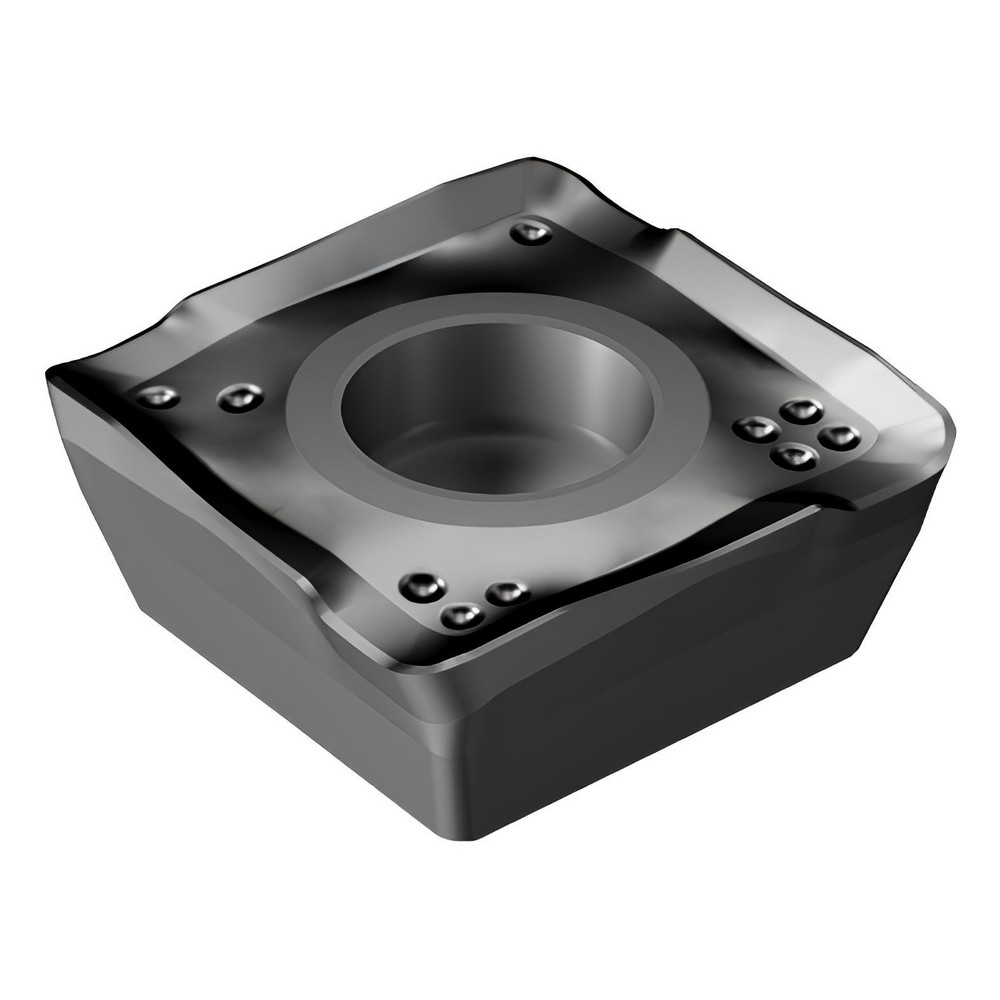

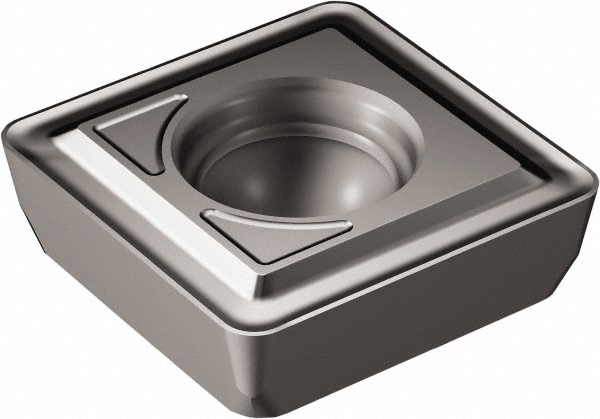

| Compatible Insert Size Code | 490R-08T308 |
| Cutter Style | A490 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | CoroMill 490 |
| Overall Height (Decimal Inch) | 1.5750 |
| Cutting Edge Length (Decimal Inch) | 0.2165 |
| Complete Insert Compatibility | 490R-08T308 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 7 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 66912791 |
