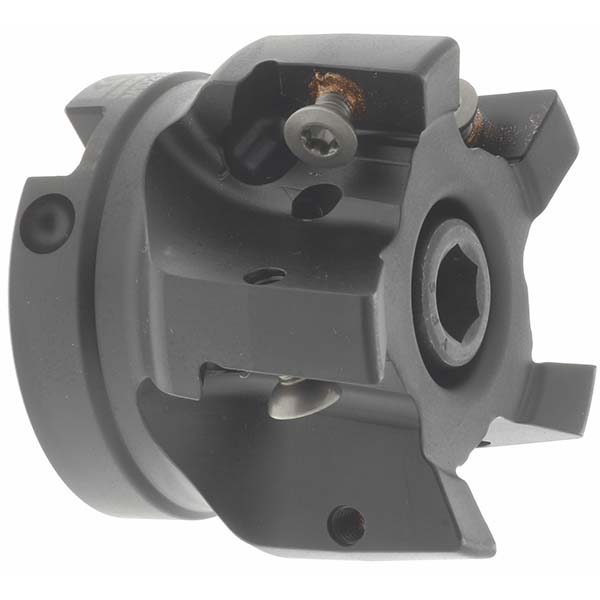

Takes 5 Inserts, 45° Lead Angle, 40mm High, R245-12T3.. Insert Style, Series CoroMill 245

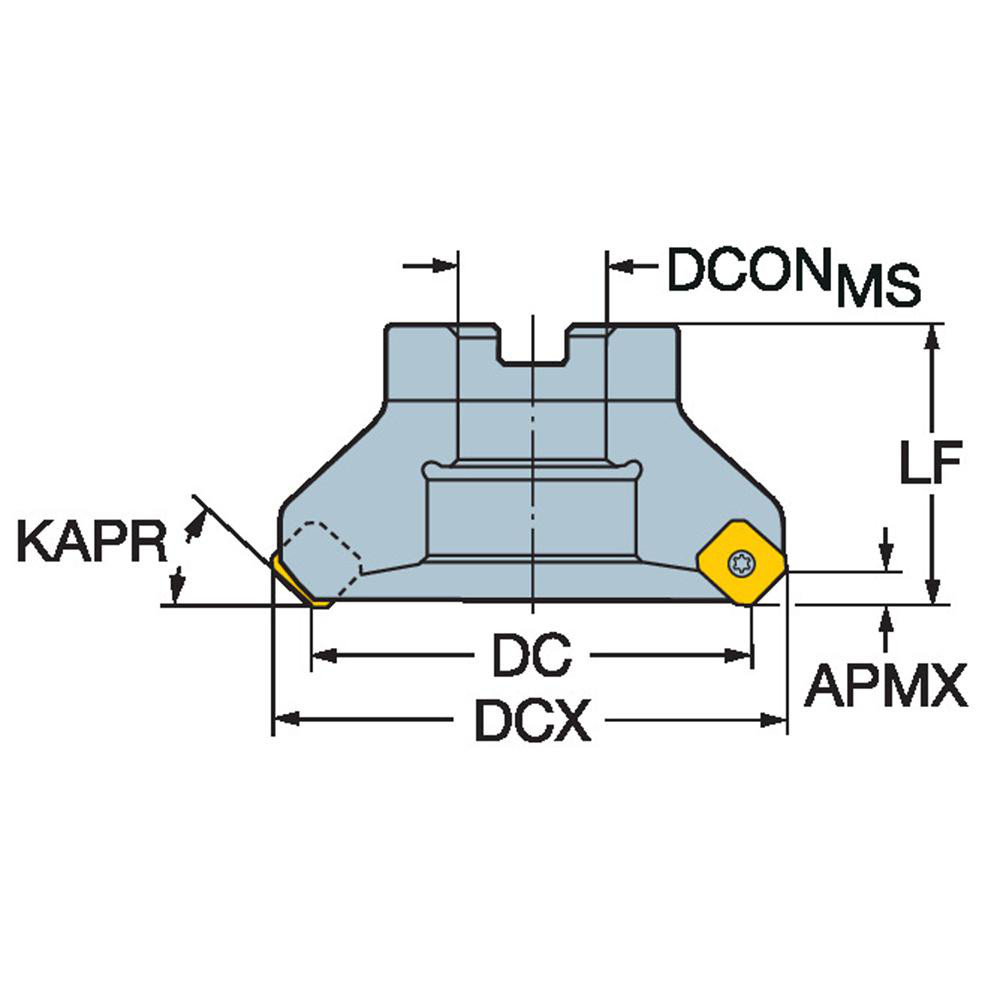

| Maximum Cutting Diameter (Inch) | 2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (mm) | 50.80 |
| Maximum Depth of Cut (mm) | 6.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.2400 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |

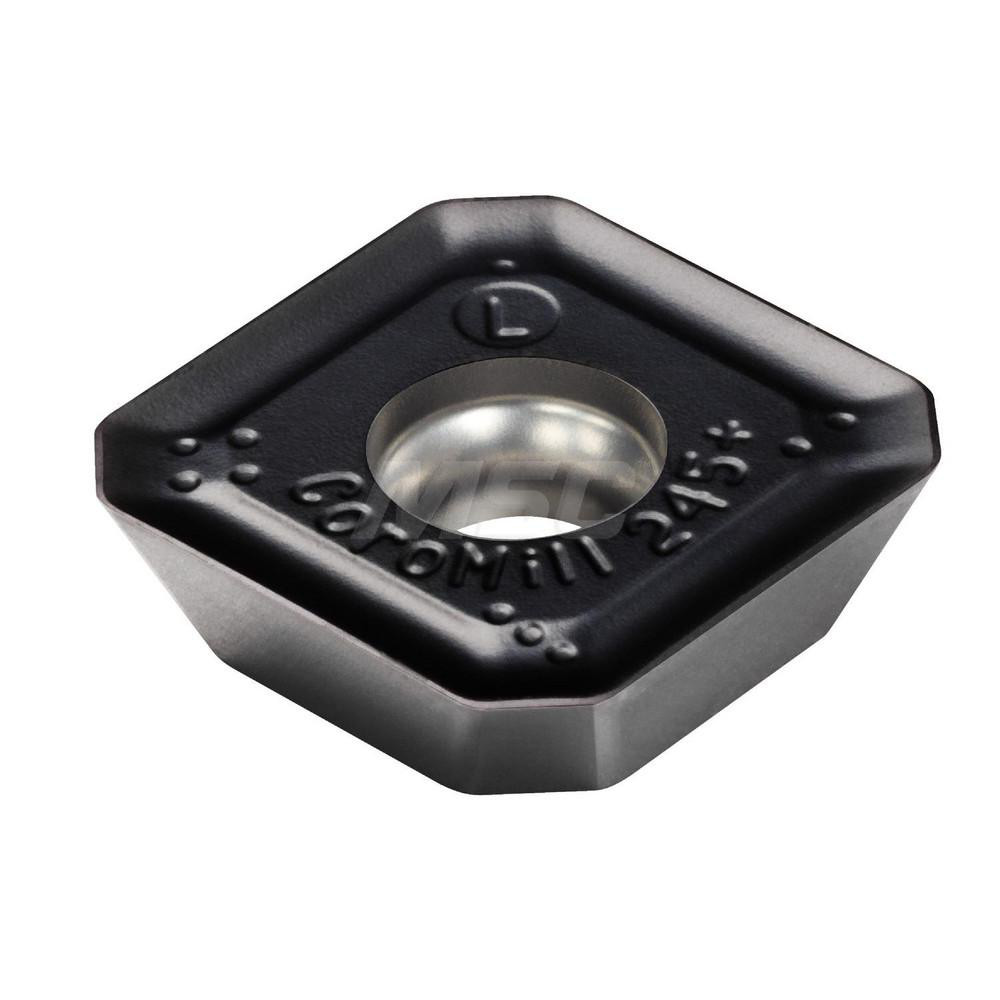

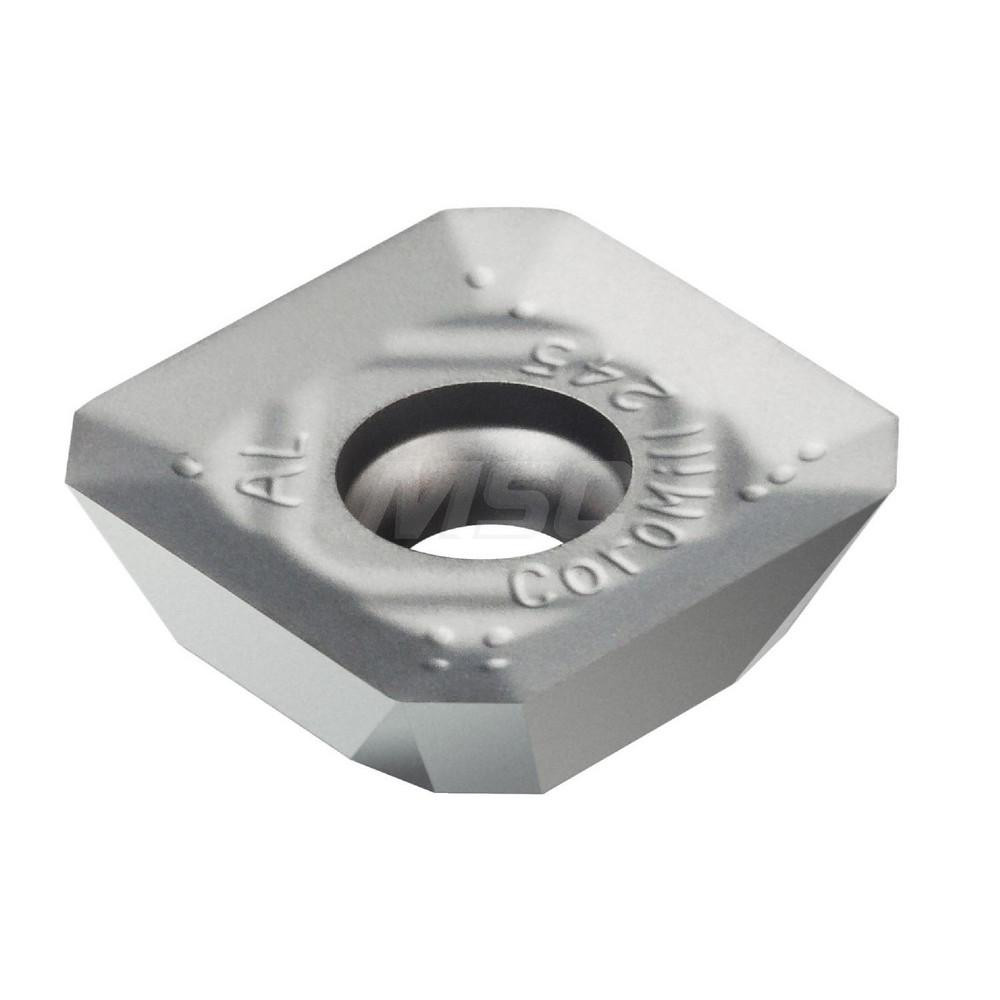

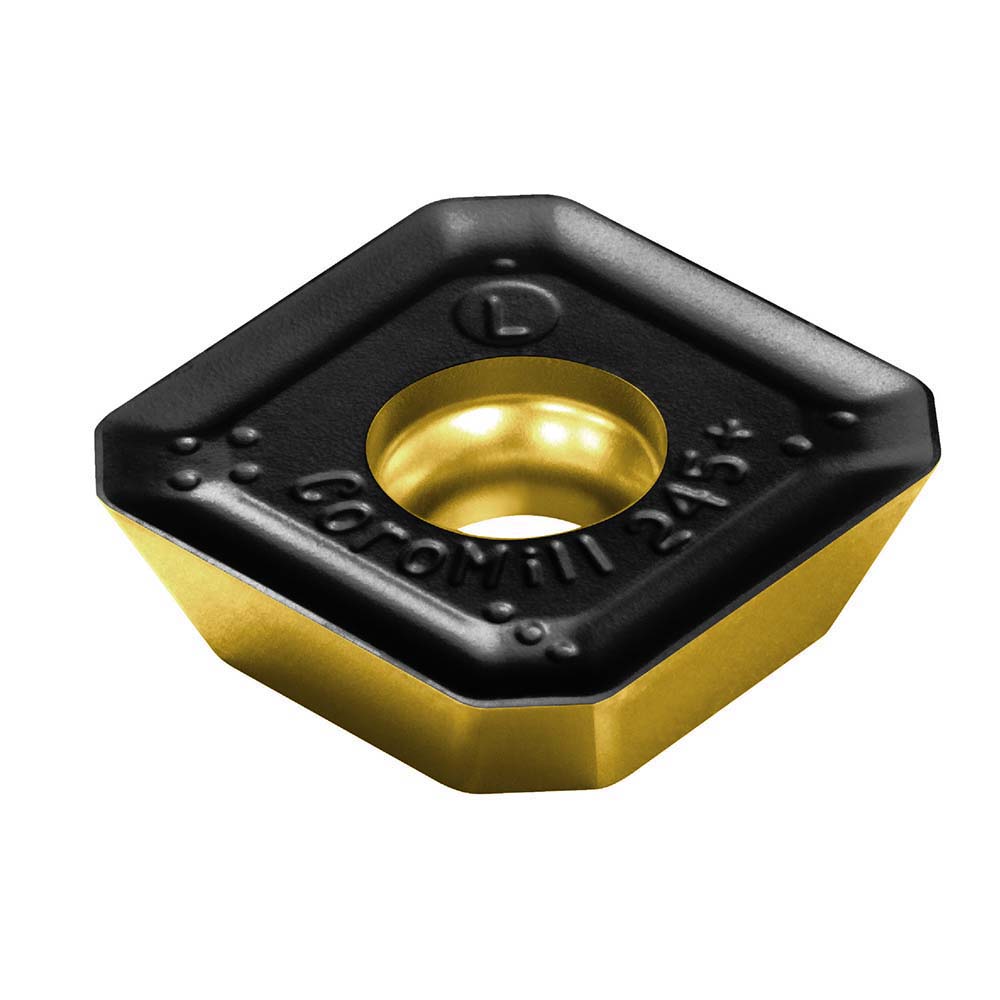

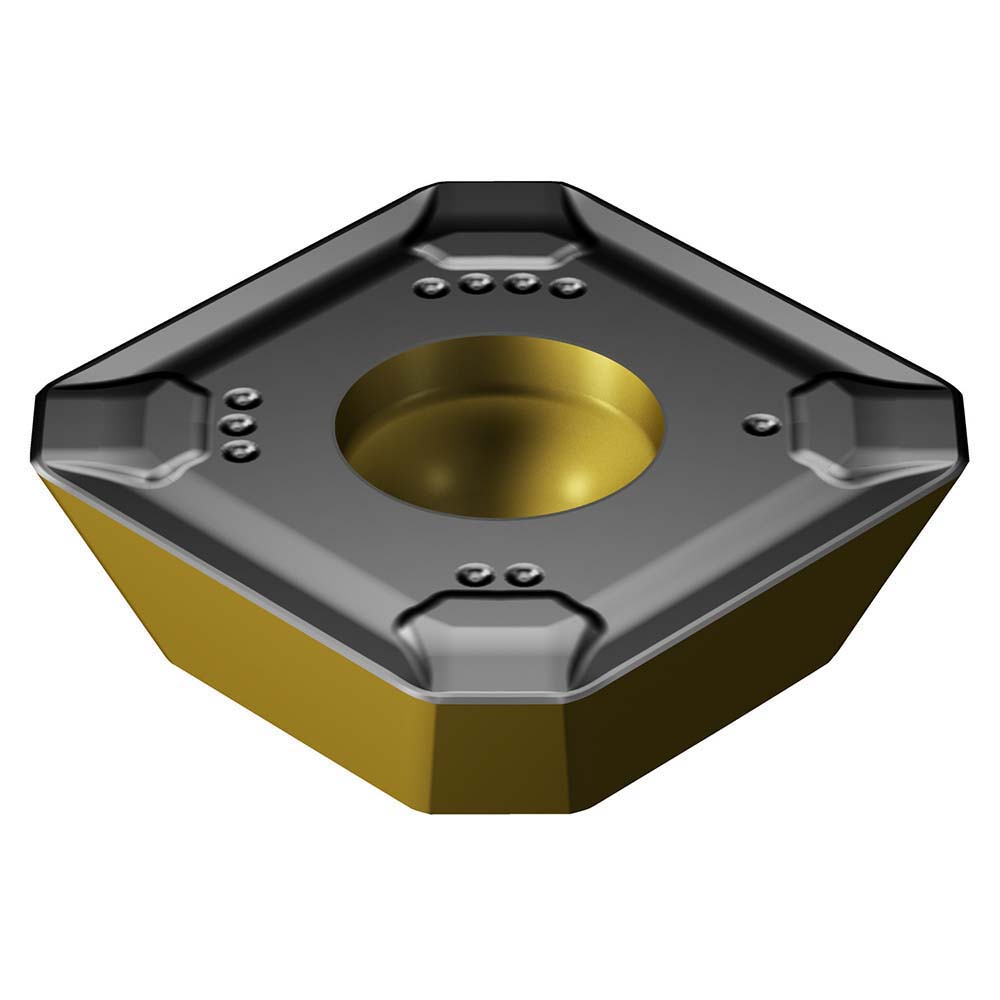

| Compatible Insert Size Code | R245-12T3.. |
| Cutter Style | RA245 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 45 |
| Rake | Positive |
| Series | CoroMill 245 |
| Maximum Body Diameter (Decimal Inch) | 2.0000 |
| Overall Height (Decimal Inch) | 1.5748 |
| Keyway Width (mm) | 8.15 |
| Keyway Width (Decimal Inch) | 0.3209 |
| Hub Diameter (mm) | 19.05 |
| Hub Diameter (Inch) | 3/4 |
| Pitch Type | Coarse |
| Cutting Edge Length (Decimal Inch) | 0.2400 |
| Complete Insert Compatibility | R245-12T3.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 93232593 |
