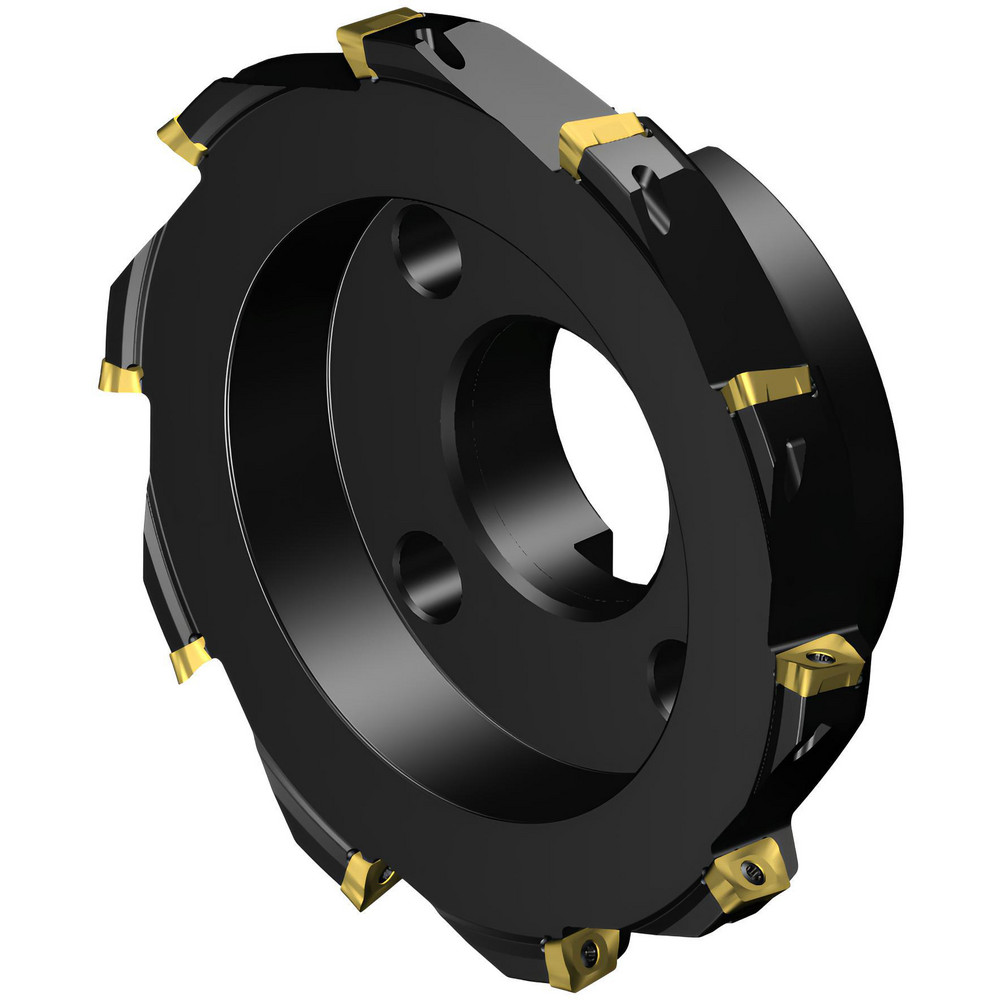

Takes 27 Inserts, 90° Lead Angle, 68.6mm High, R390-18.. Insert Style
| Maximum Cutting Diameter (Decimal Inch) | 7.8740 |
|---|---|
| Maximum Cutting Diameter (mm) | 200.00 |
| Maximum Depth of Cut (mm) | 43.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.6929 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Compatible Insert Size Code | R390-18.. |
| Cutter Style | R390..Qxx (LE) |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Overall Height (Decimal Inch) | 2.7008 |
| Complete Insert Compatibility | R390-18.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Number Of Cutter Inserts | 27 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 49525058 |
