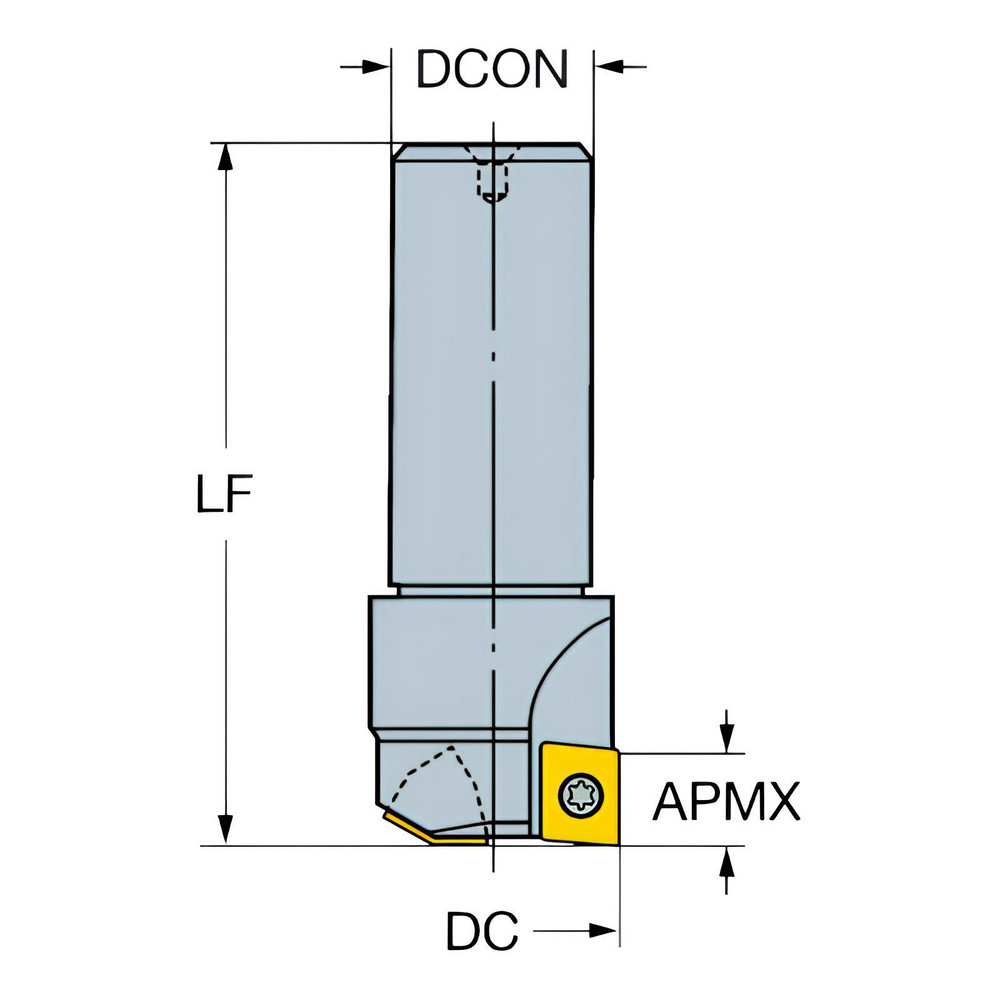

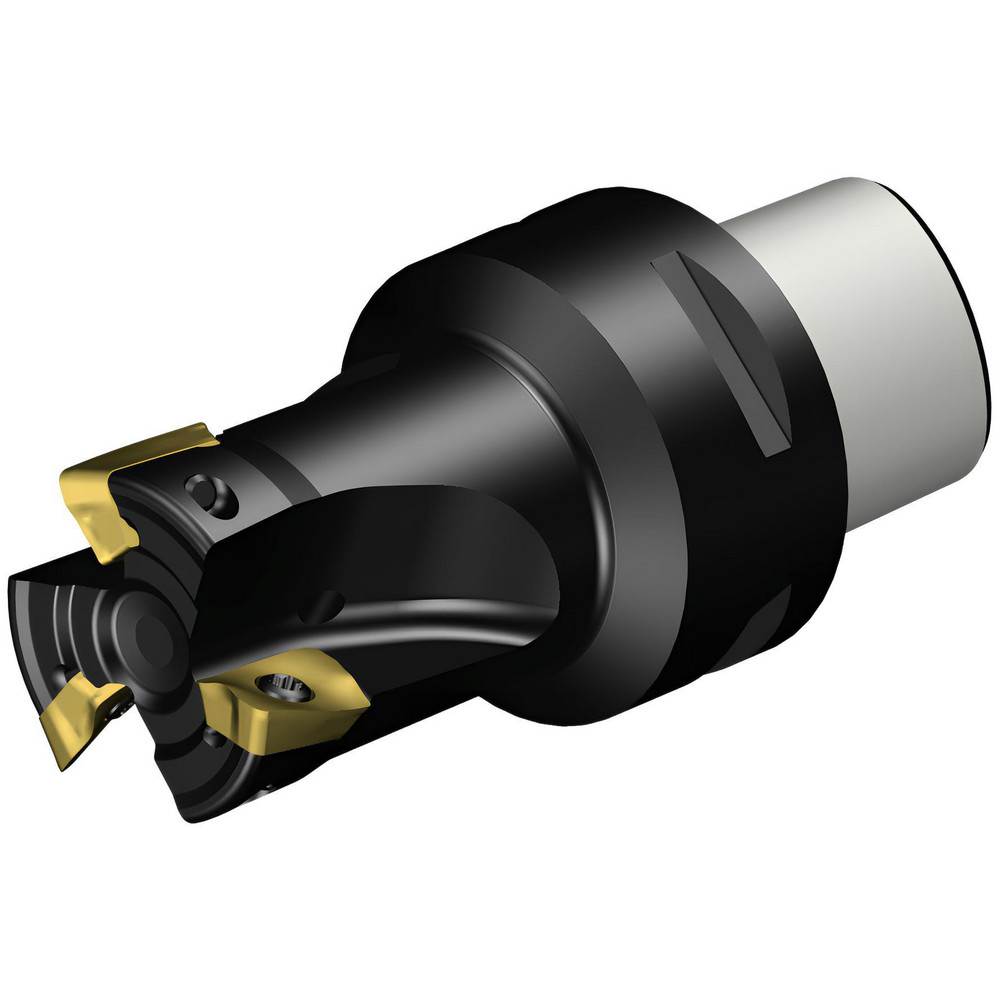

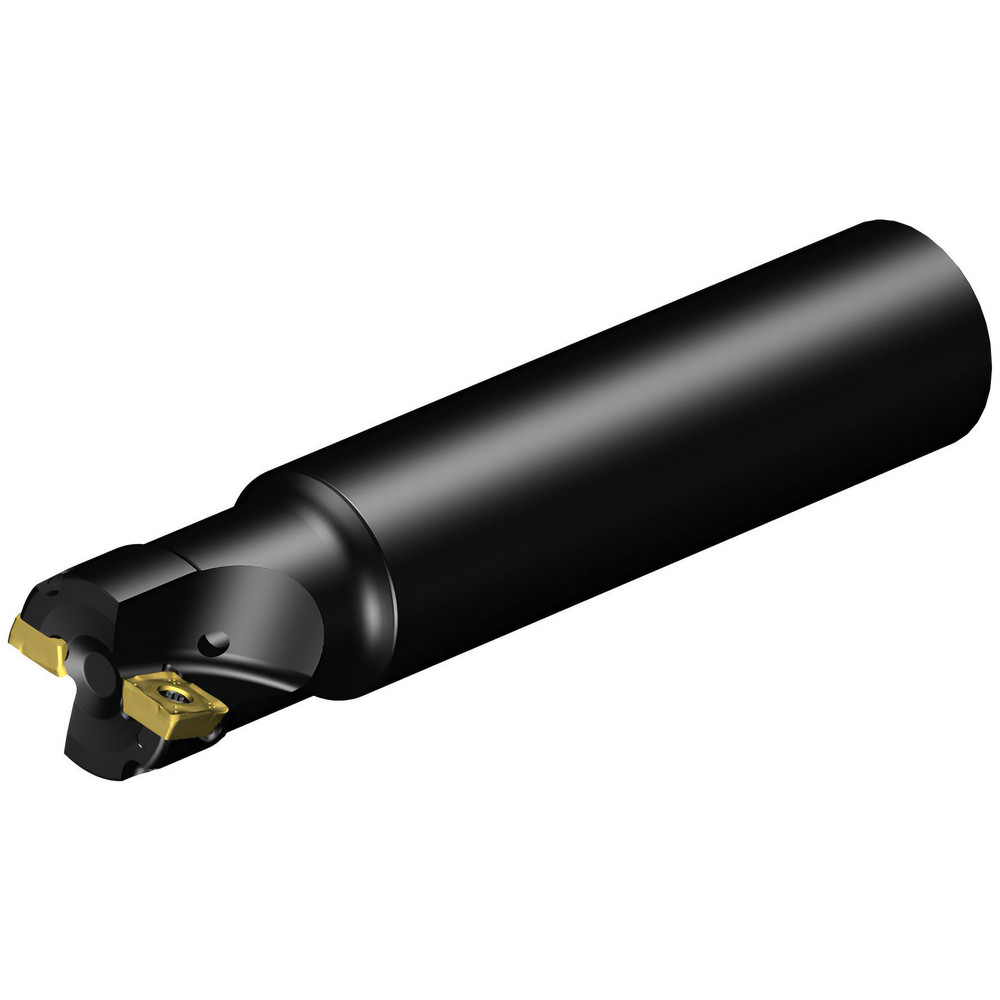

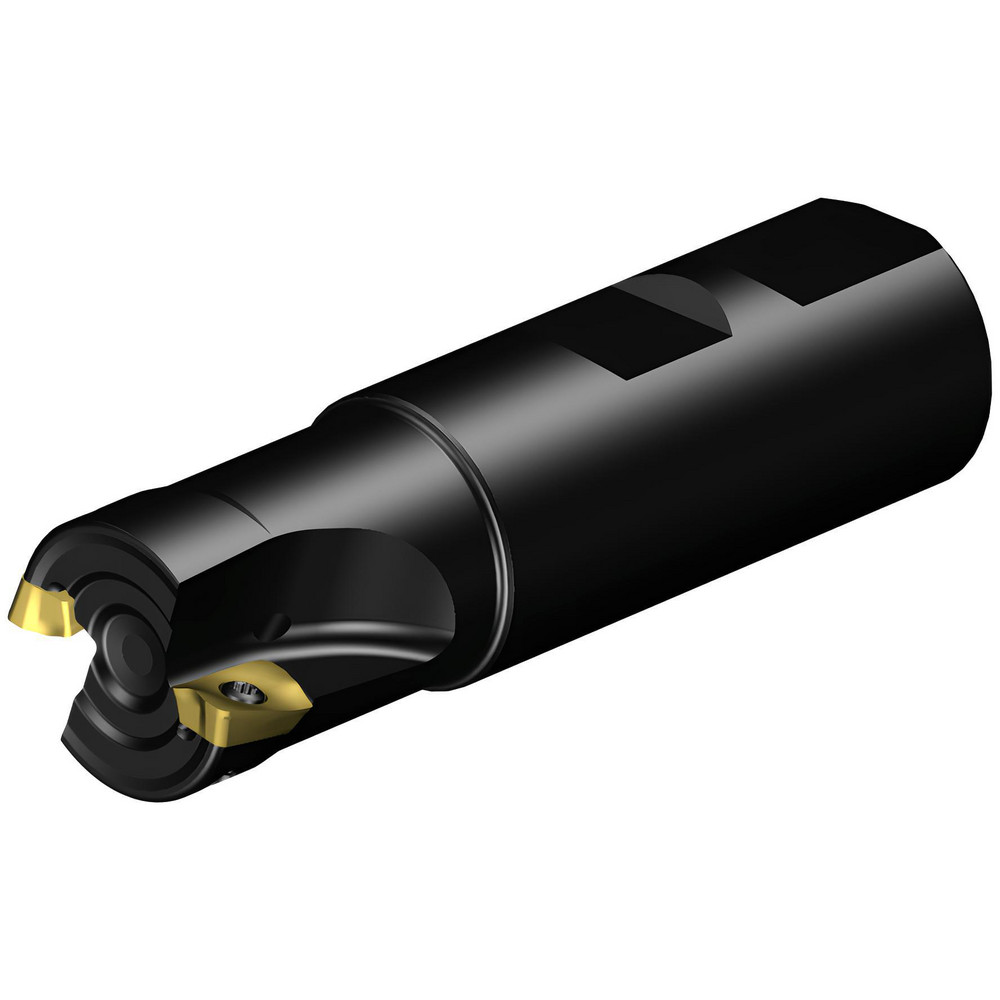

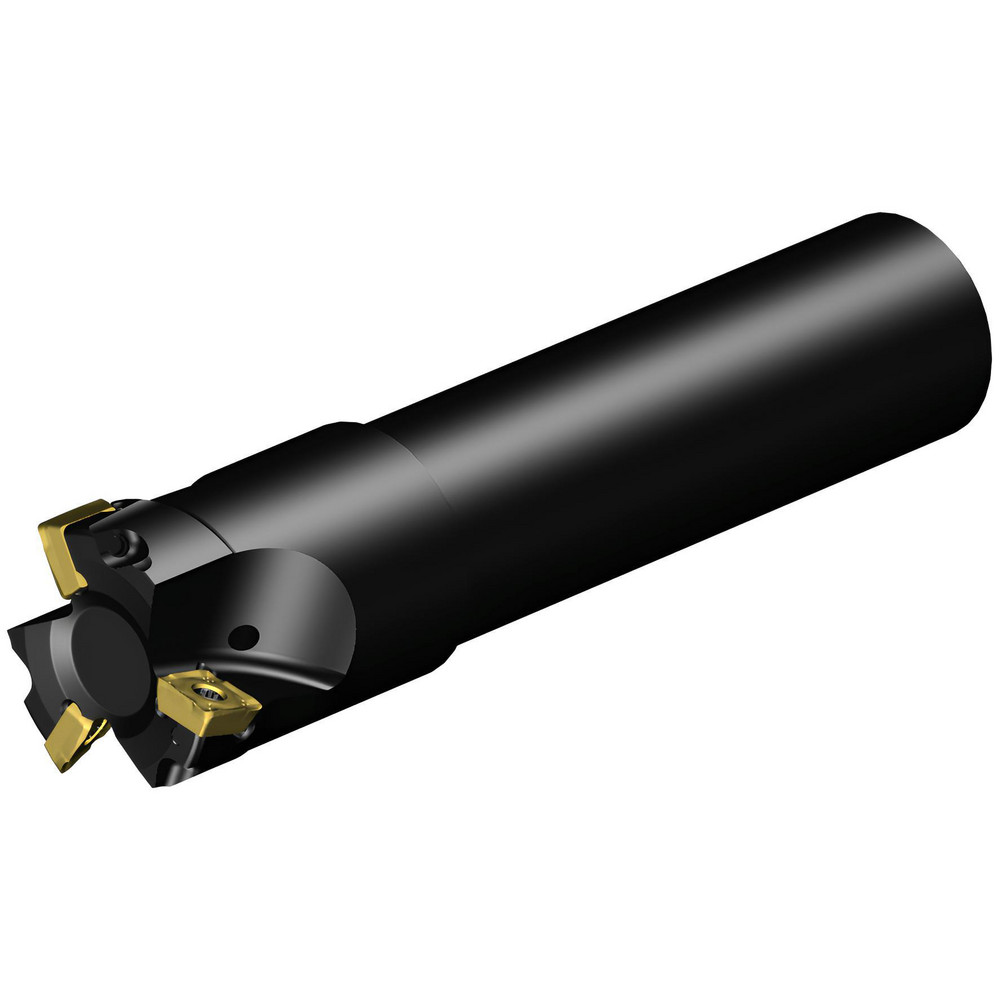

90° Lead Angle, 120mm High, R216.2-07T3, R216.2-15T308-1 Insert Style
| Maximum Cutting Diameter (Decimal Inch) | 0.9843 |
|---|---|
| Maximum Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Arbor Hole Diameter (mm) | 25.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.9843 |
| Compatible Insert Size Code | R216.2-07T3; R216.2-15T308-1 |
| Cutter Style | R216.2 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | U-Max |
| Overall Height (Decimal Inch) | 4.7244 |
| Complete Insert Compatibility | R216.2-07T3; R216.2-15T308-1 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Country of Origin | China |
| undefined | undefined |
| MSC Number | MSC# 49526155 |
