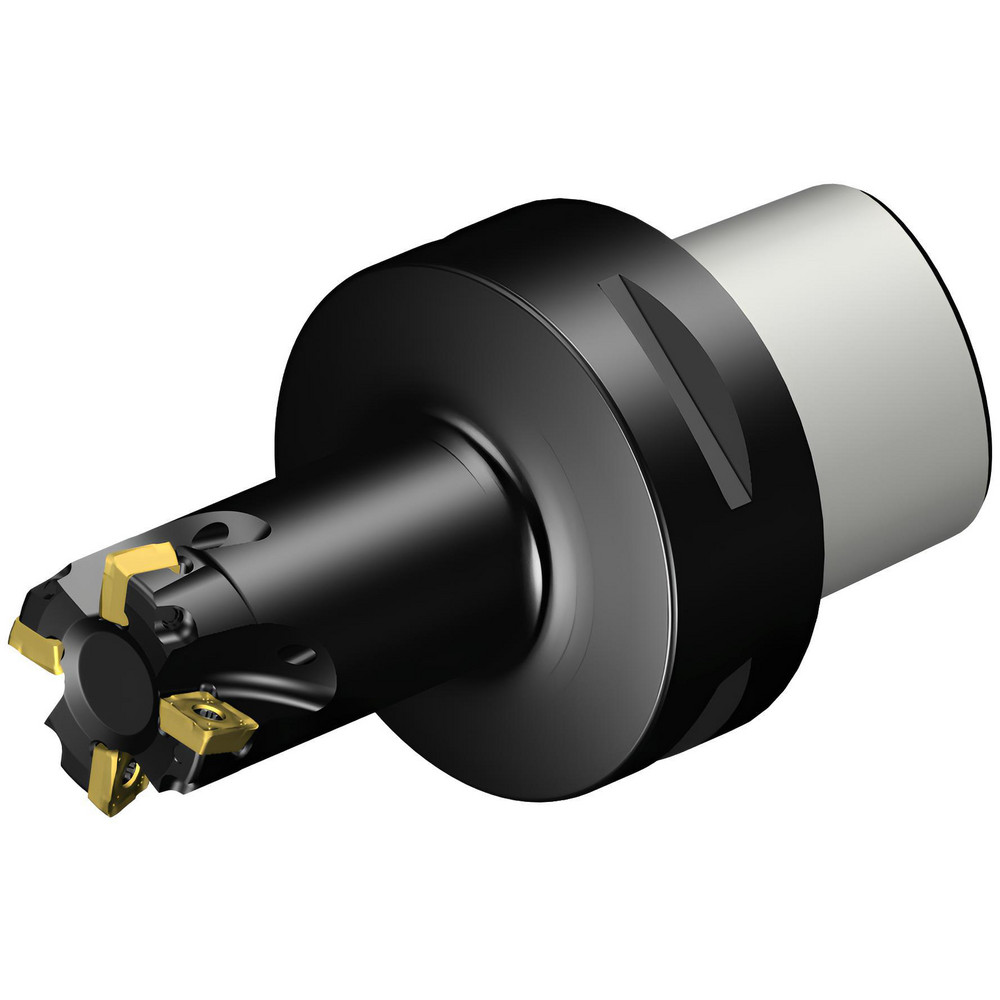

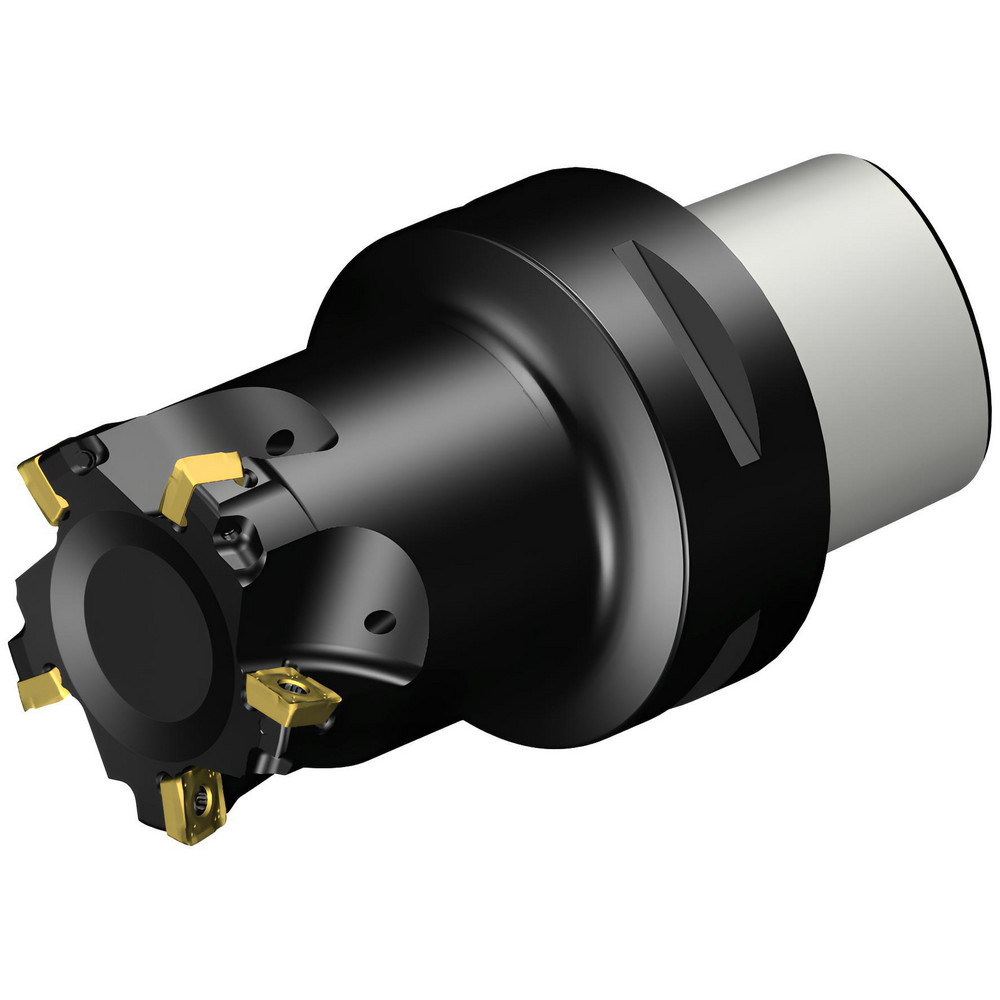

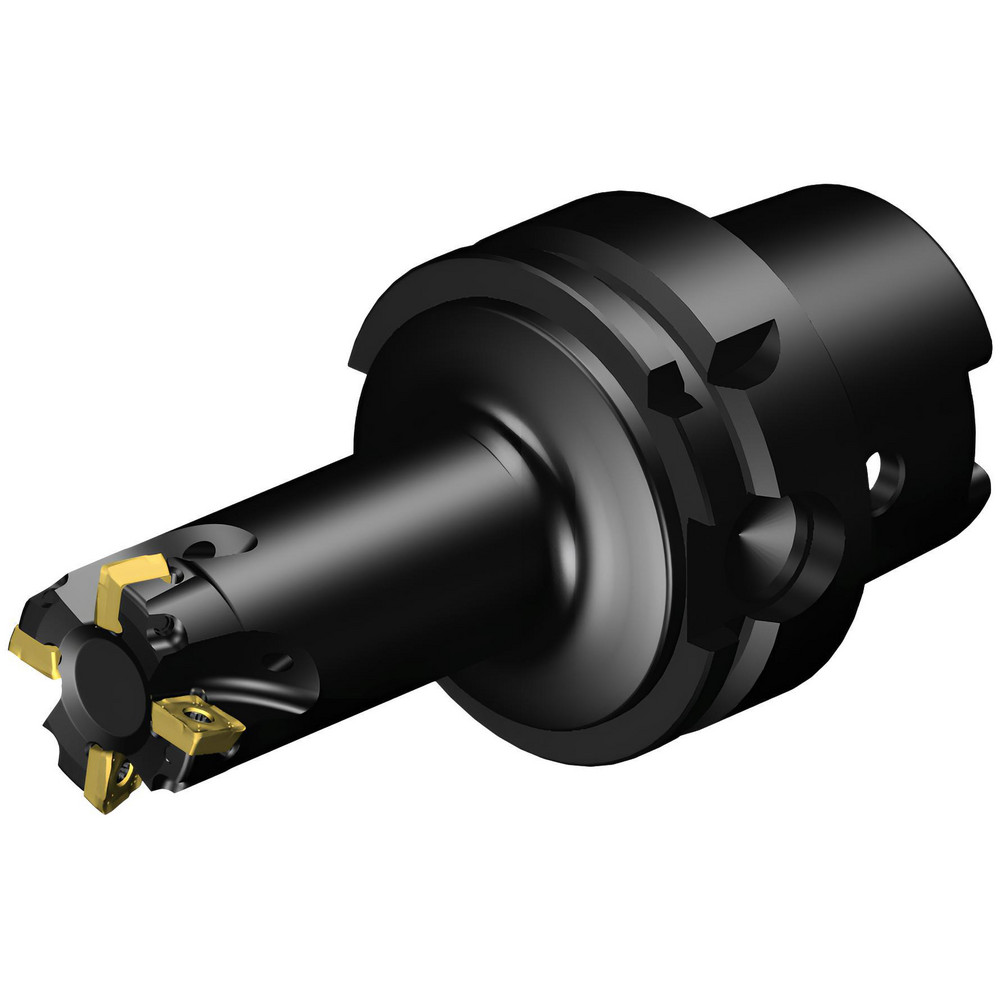

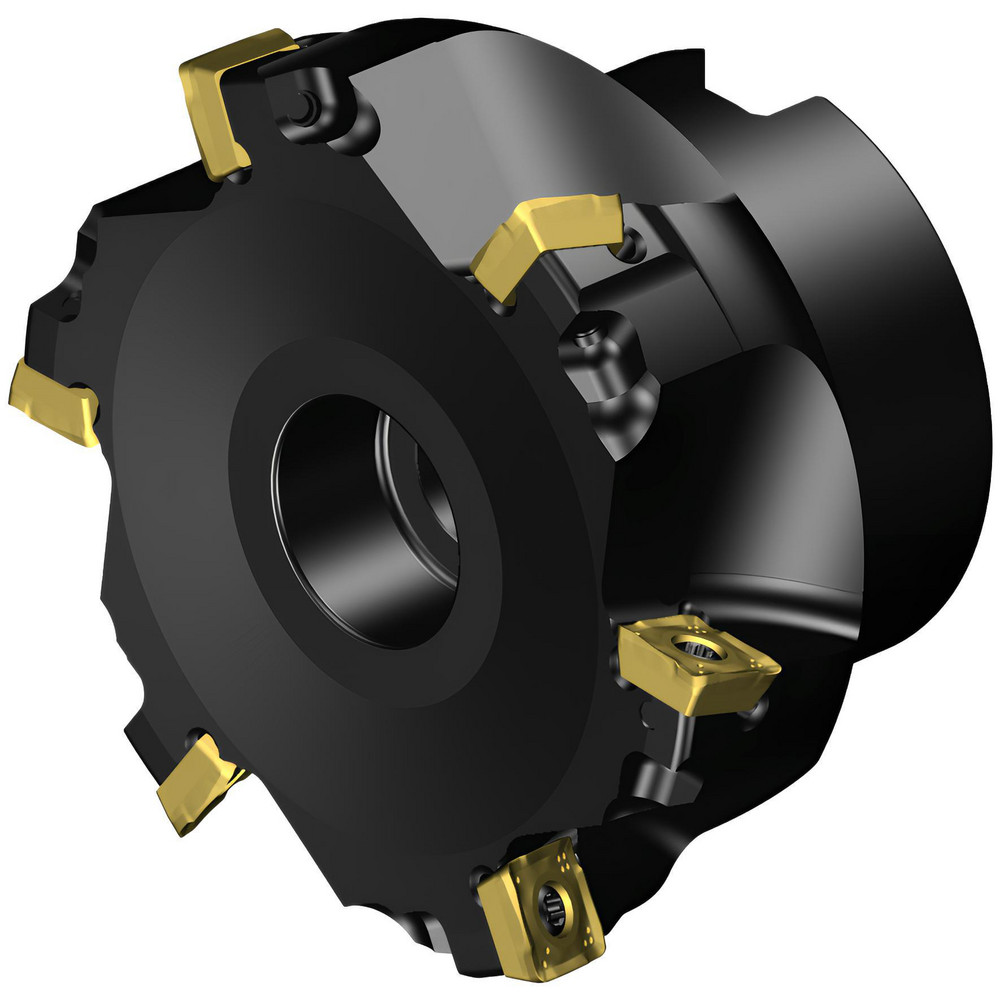

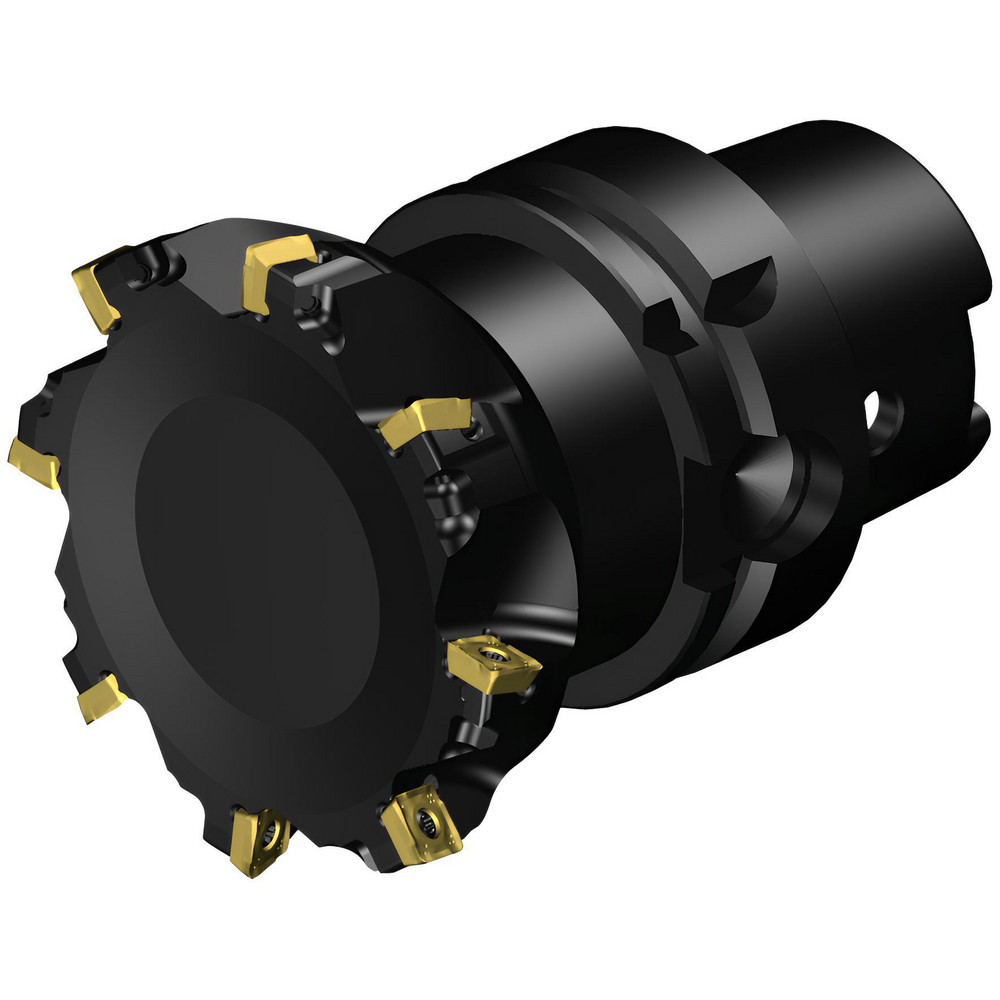

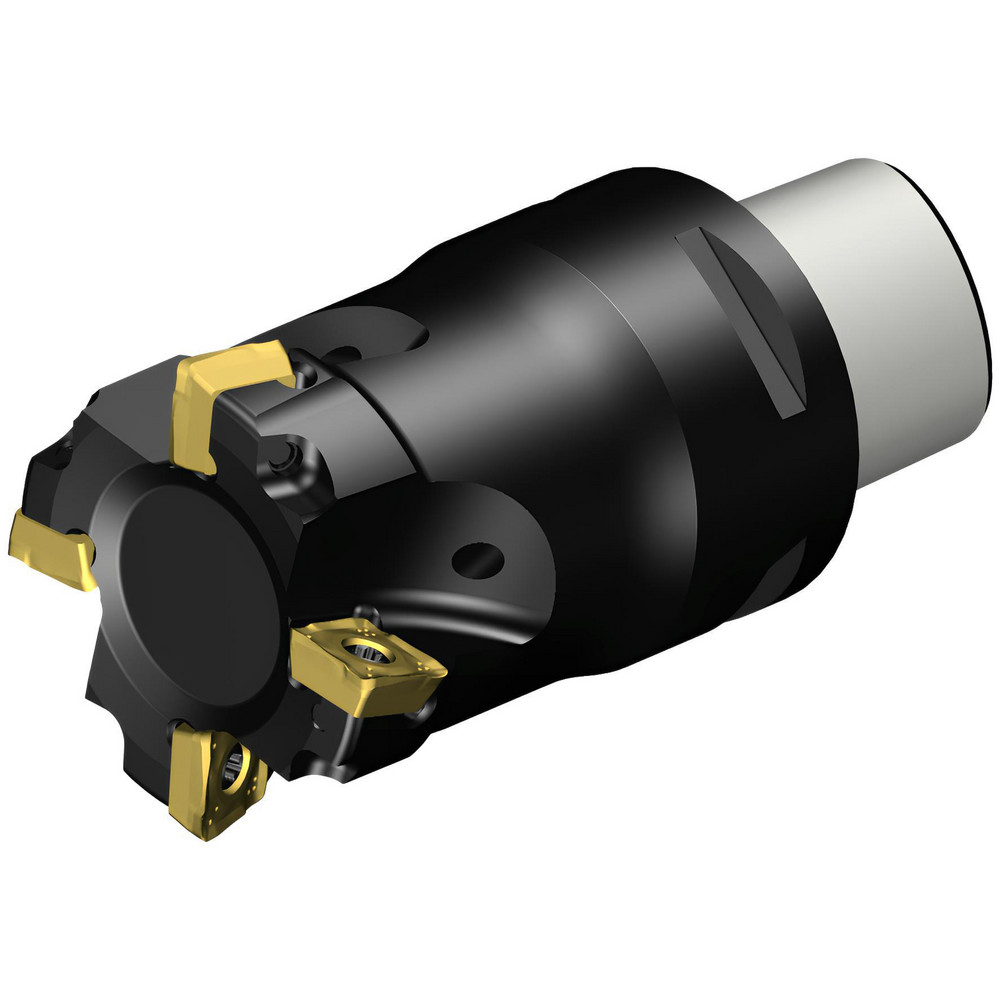

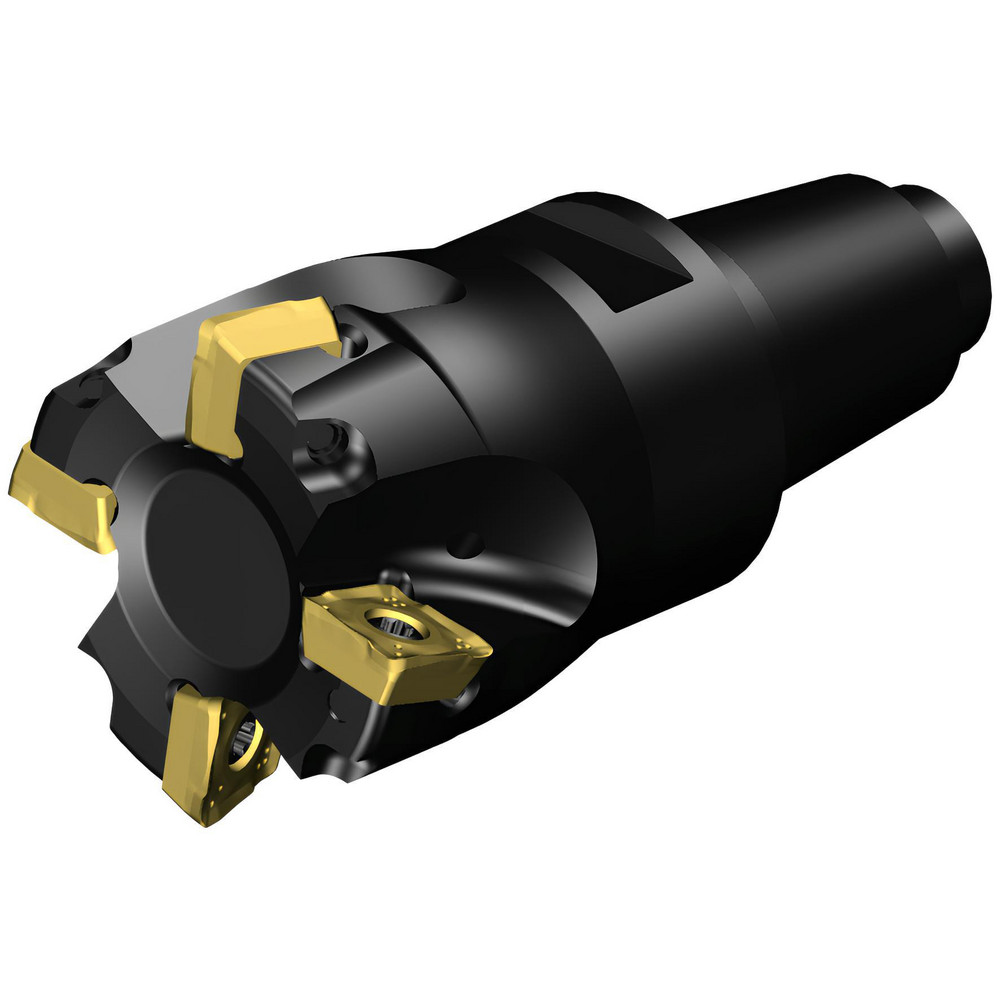

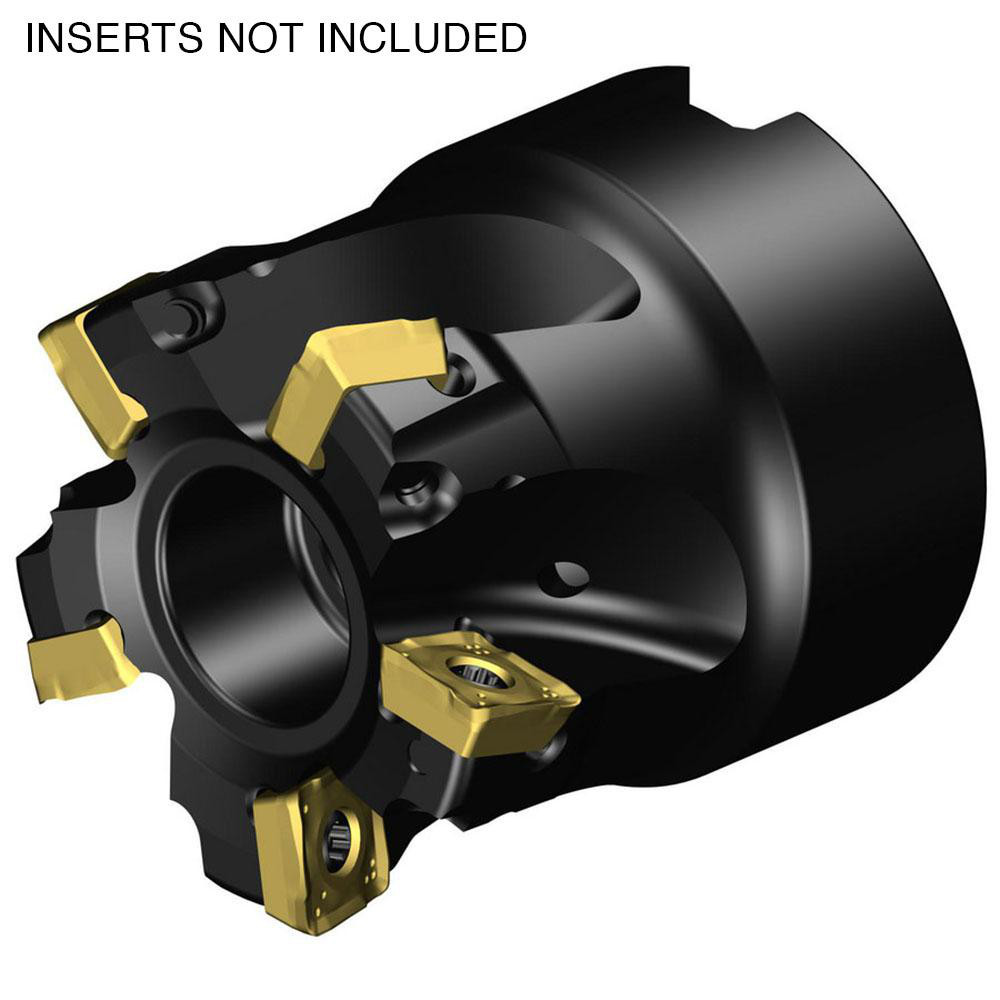

Takes 4 Inserts, 90° Lead Angle, 118mm High, 490R-08T308 Insert Style, Through Coolant

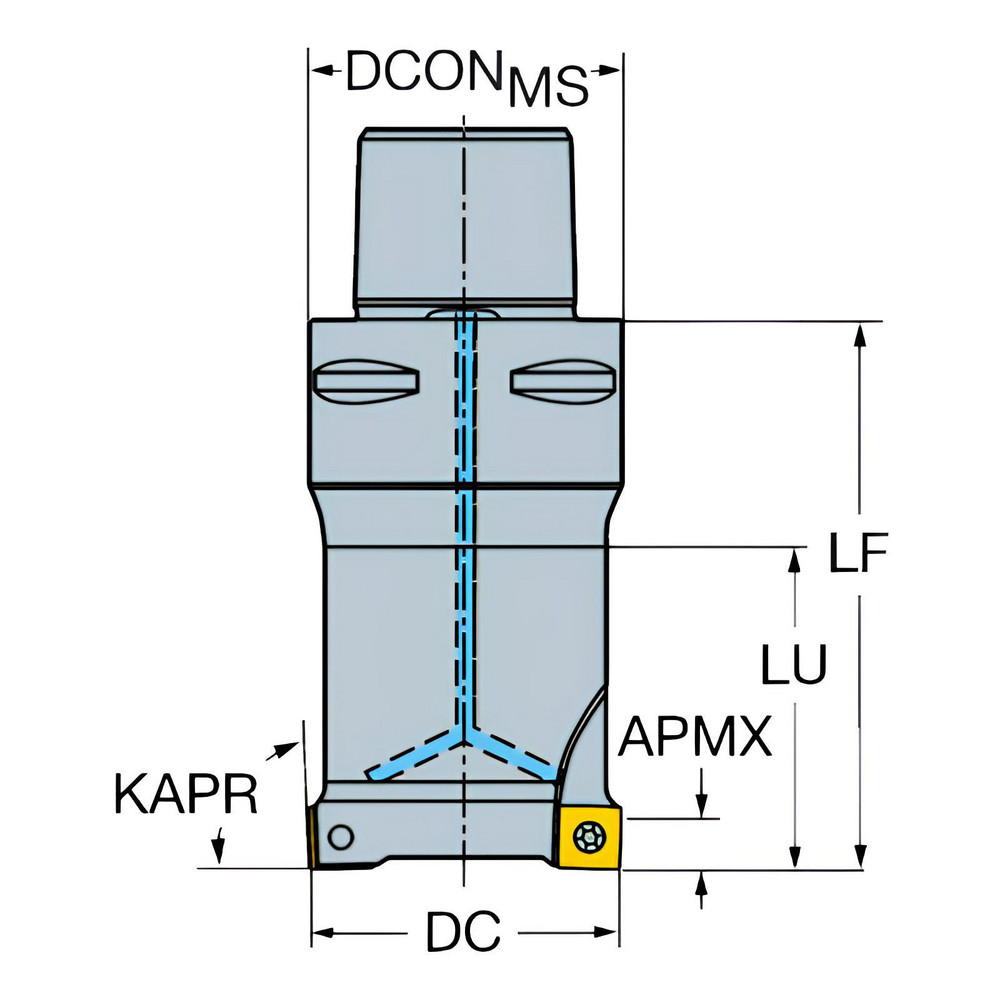

| Maximum Cutting Diameter (Decimal Inch) | 1.2598 |
|---|---|
| Maximum Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Compatible Insert Size Code | 490R-08T308 |
| Cutter Style | 490..Cx |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | CoroMill 490 |
| Overall Height (Decimal Inch) | 4.6457 |
| Complete Insert Compatibility | 490R-08T308 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Country of Origin | Sweden |
| MSC Number | MSC# 43023969 |
