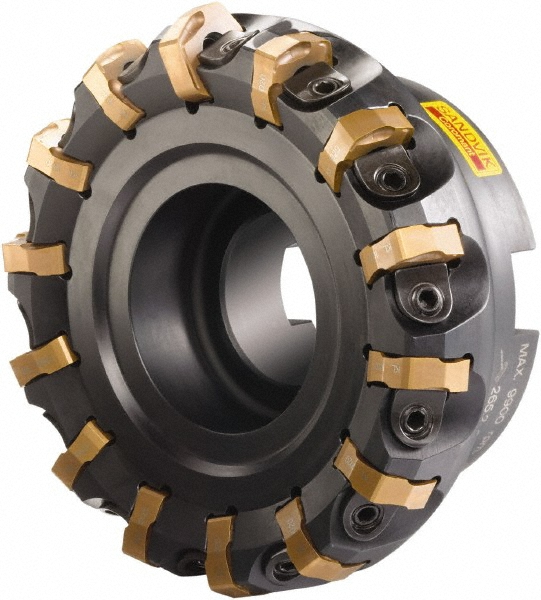

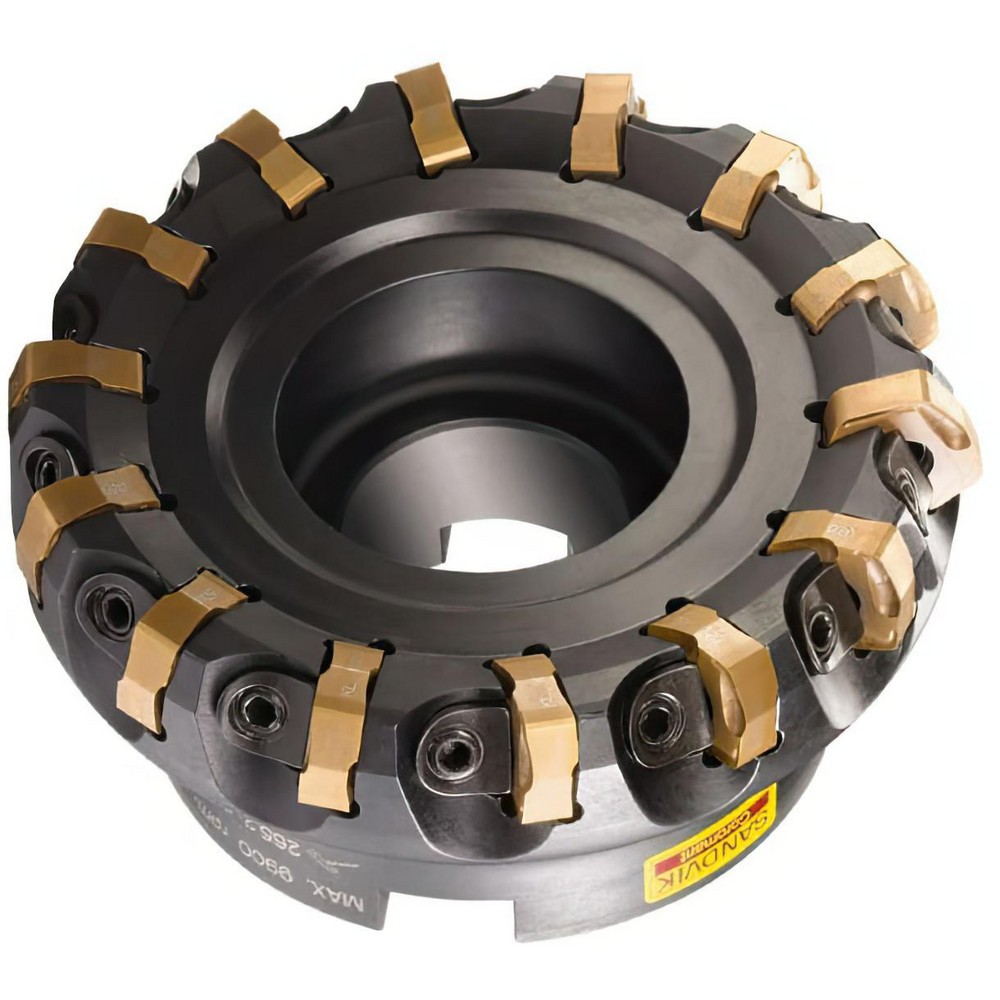

Takes 14 Inserts, R365-1505ZNE Insert, Right Hand Cut, Series CoroMill 365
| Minimum Cutting Diameter (Decimal Inch) | 4.0000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 4 |
| Maximum Cutting Diameter (Decimal Inch) | 4.2640 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Compatible Insert Size Code | R365-1505ZNE |
| Cutter Style | R/LA365..Rxx-W |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Series | CoroMill 365 |
| Keyway Width (Decimal Inch) | 0.6331 |
| Overall Height (Decimal Inch) | 1.9685 |
| Maximum RPM | 9800 |
| Complete Insert Compatibility | R365-1505ZNE |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 14 |
| Coolant Through | No |
| UNSPSC Code | 23291600 |
| Country of Origin | Sweden |
| MSC Number | MSC# 54949847 |
