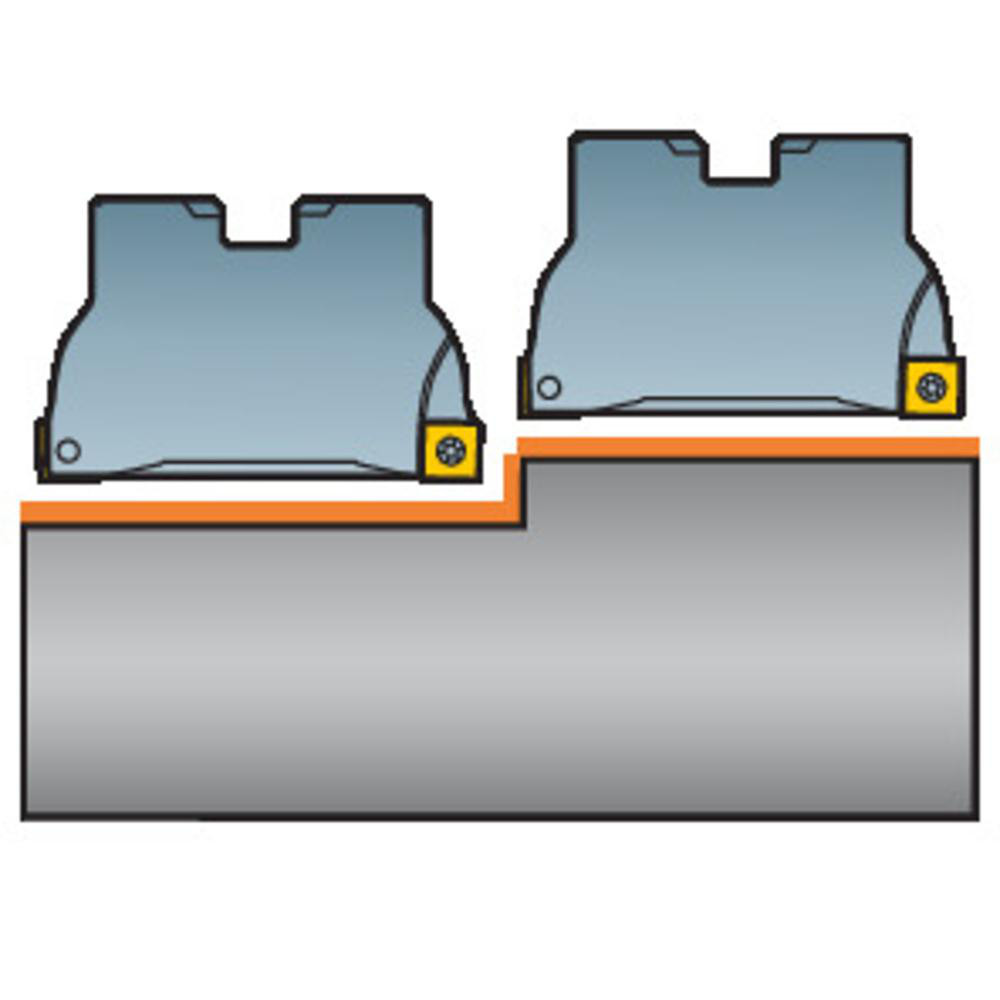

Takes 7 Inserts, 90° Lead Angle, 50.0126mm High, R390-17.. Insert Style, Series CoroMill 390

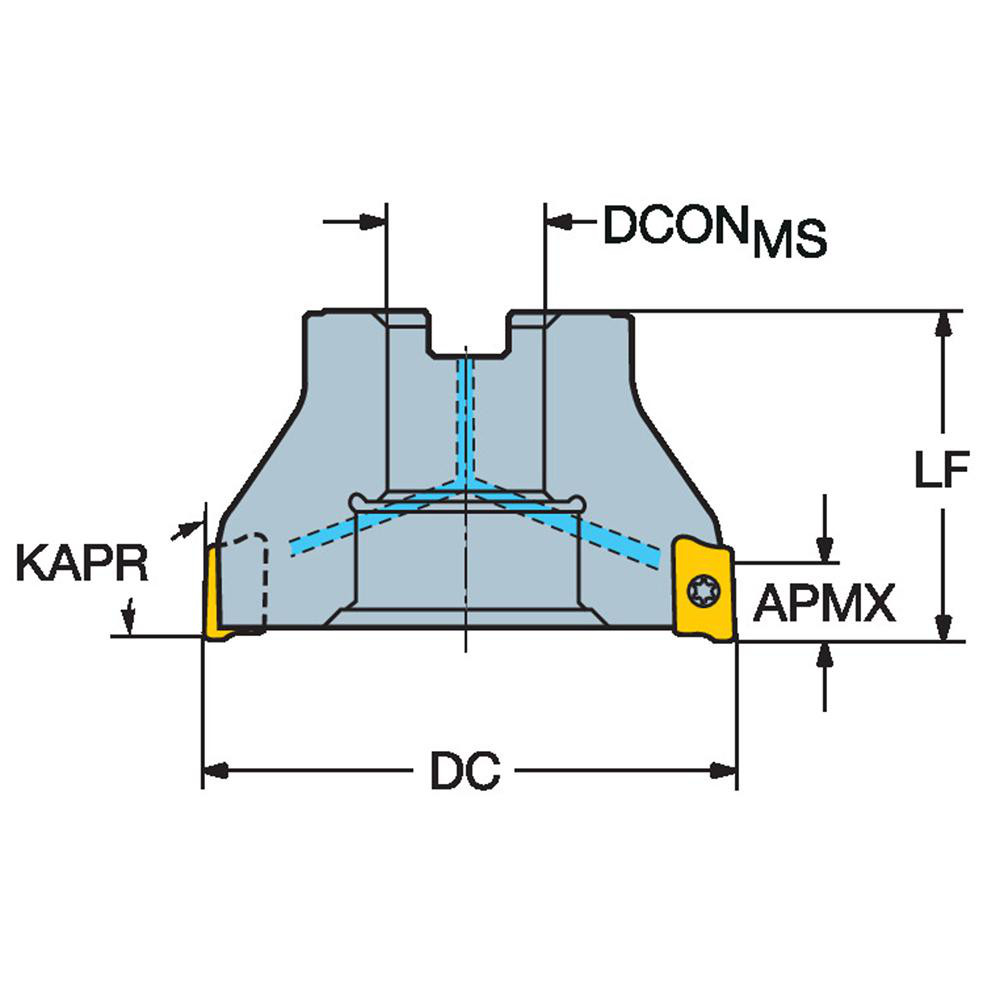

| Maximum Cutting Diameter (Inch) | 4 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Cutting Diameter (mm) | 101.60 |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6181 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | R390-17.. |
| Cutter Style | RA390 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Rake | Positive |
| Series | CoroMill 390 |
| Maximum Body Diameter (Decimal Inch) | 3.9370 |
| Overall Height (Decimal Inch) | 1.9690 |
| Keyway Width (mm) | 16.08 |
| Keyway Width (Decimal Inch) | 0.6331 |
| Hub Diameter (mm) | 38.10 |
| Hub Diameter (Inch) | 1-1/2 |
| Pitch Type | Close |
| Cutting Edge Length (Decimal Inch) | 0.6181 |
| Complete Insert Compatibility | R390-17.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Number Of Cutter Inserts | 7 |
| Number Of Flutes | 7 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 61465761 |
