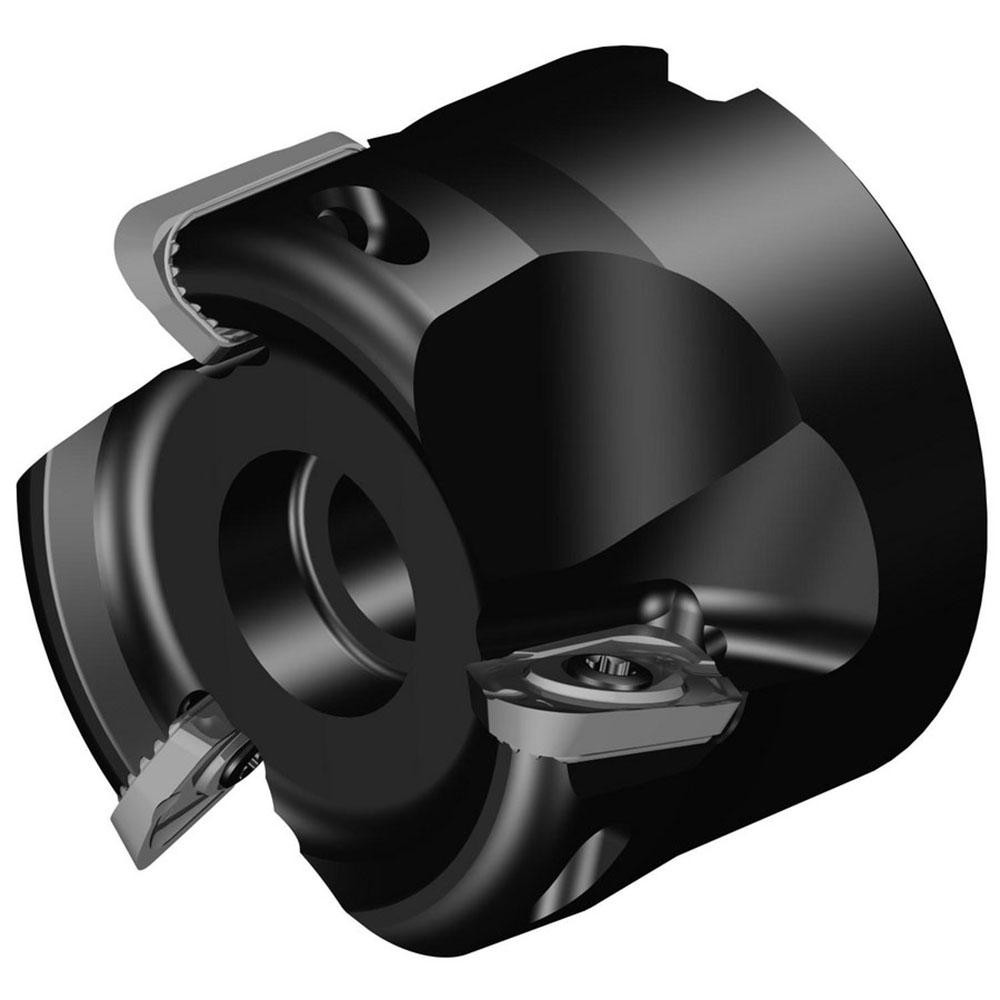

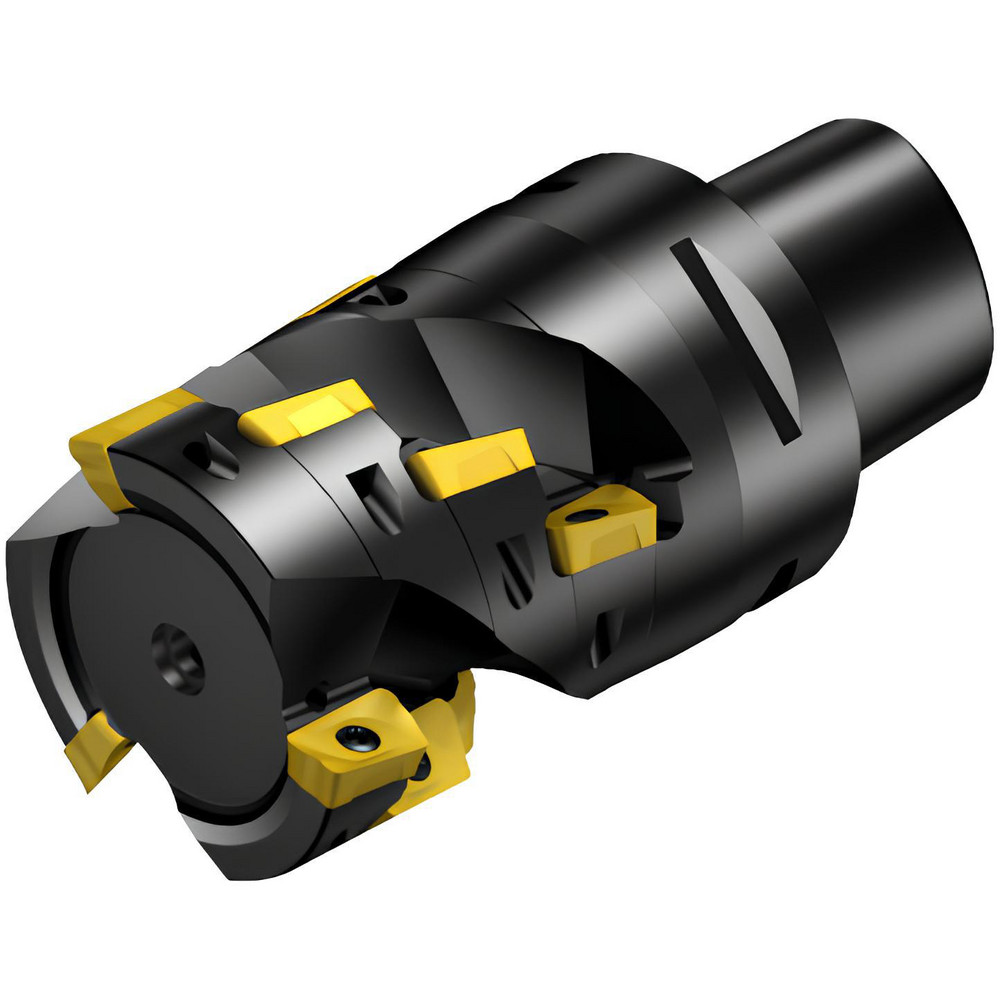

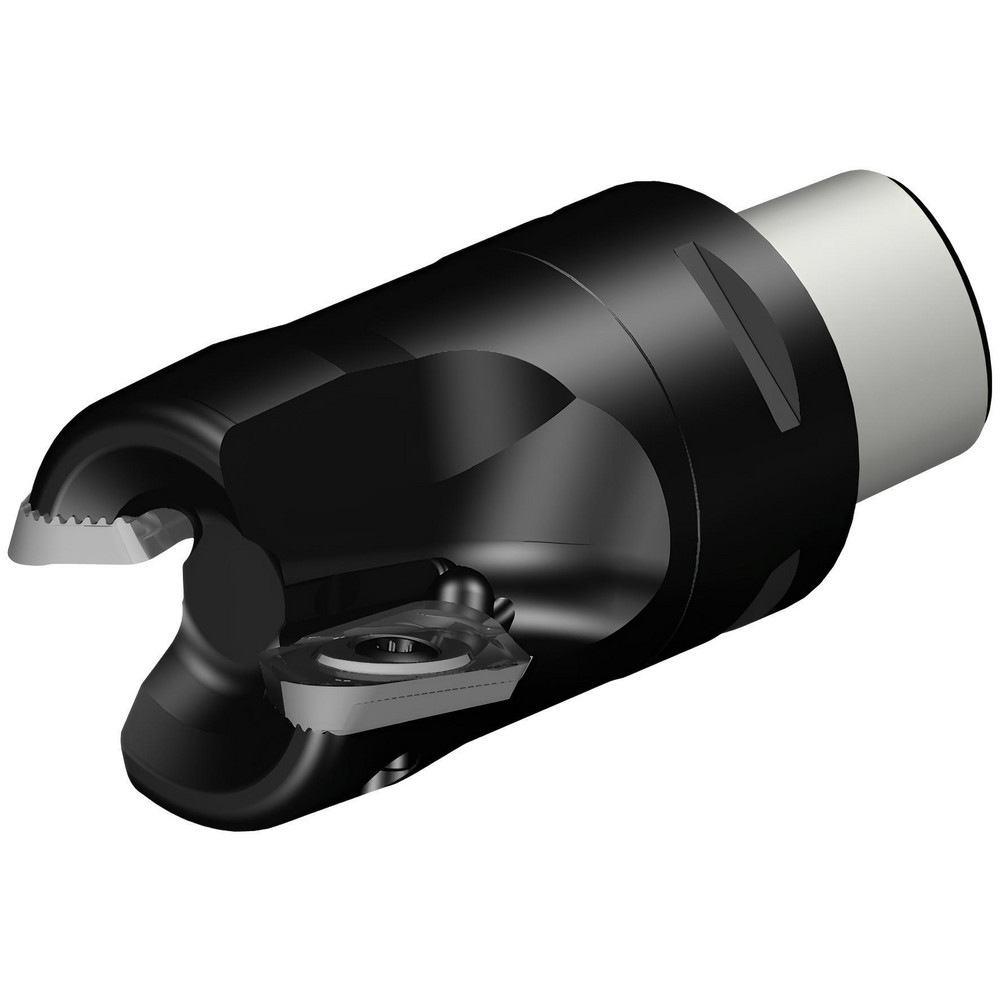

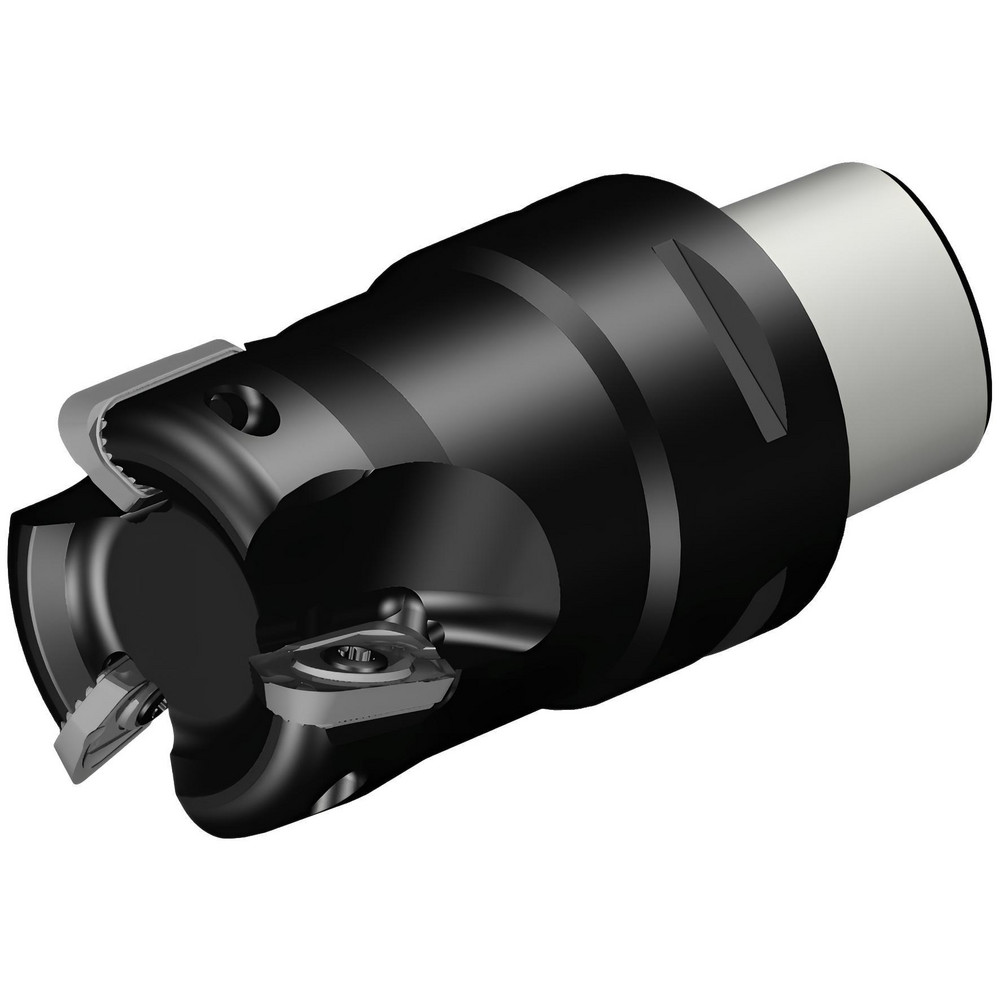

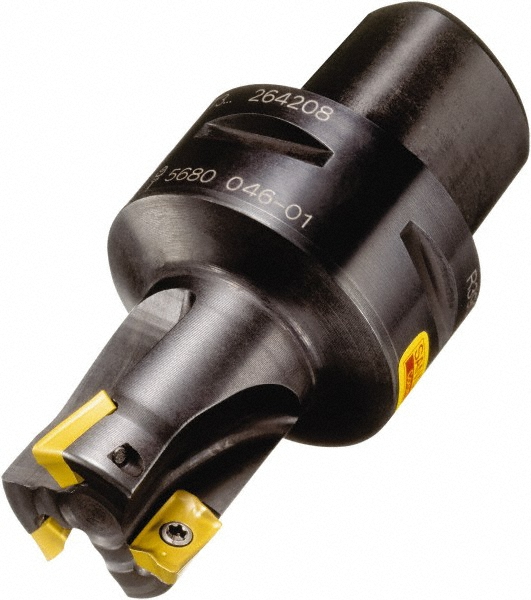

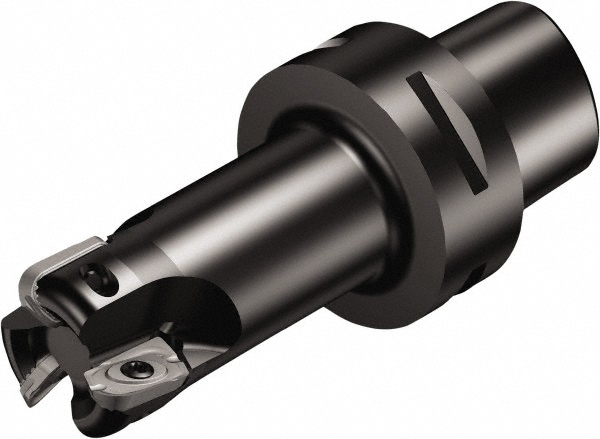

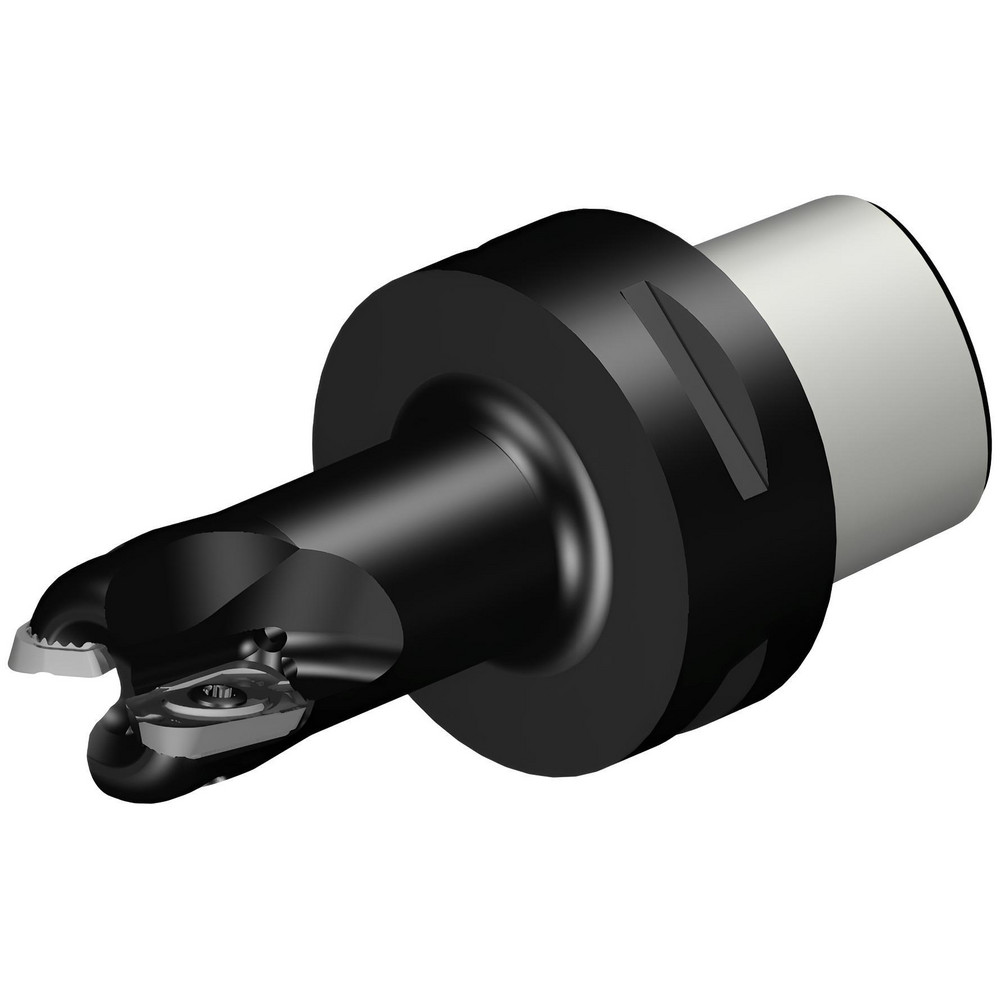

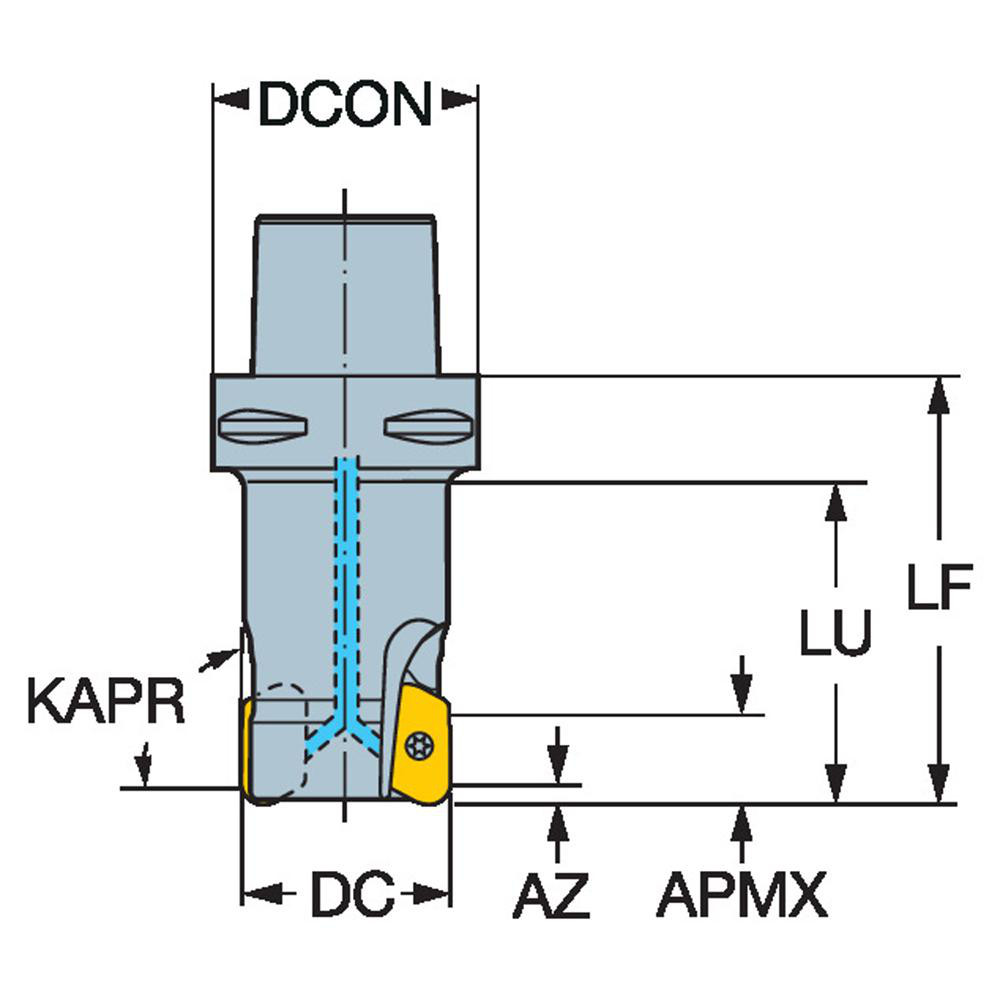

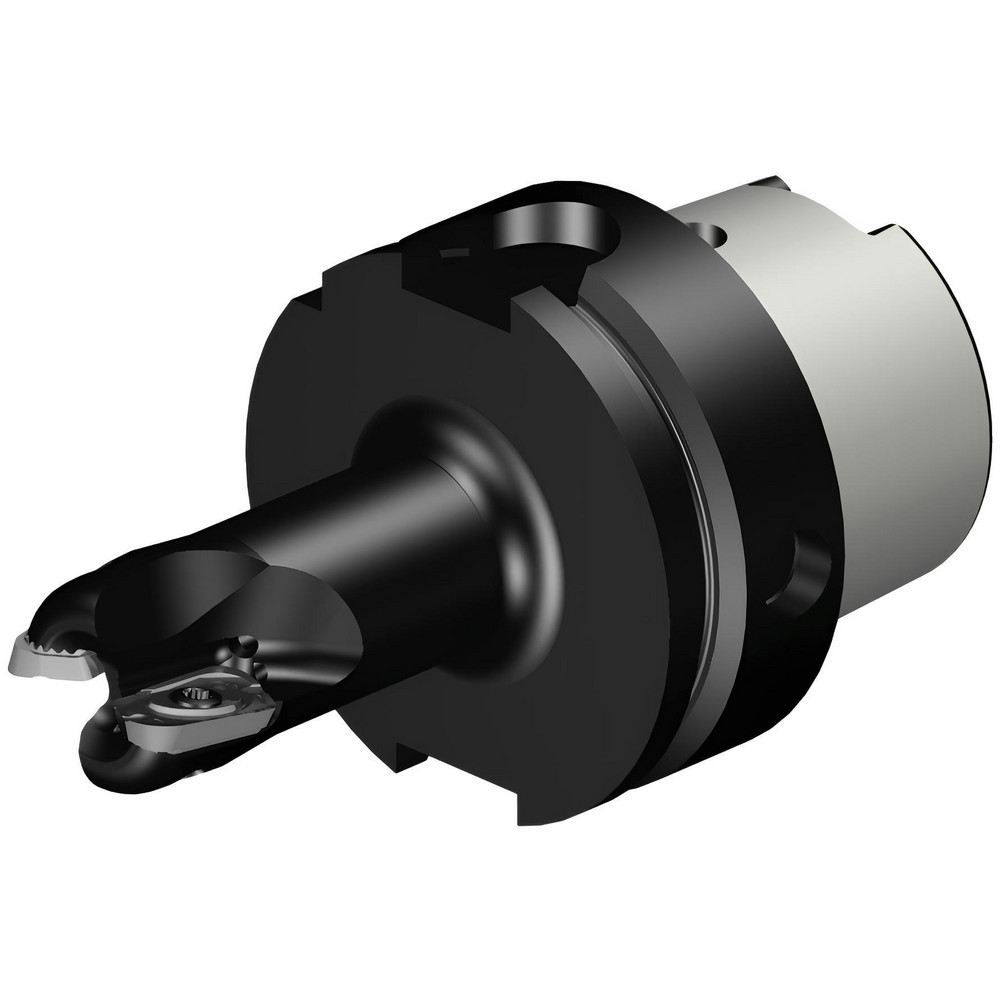

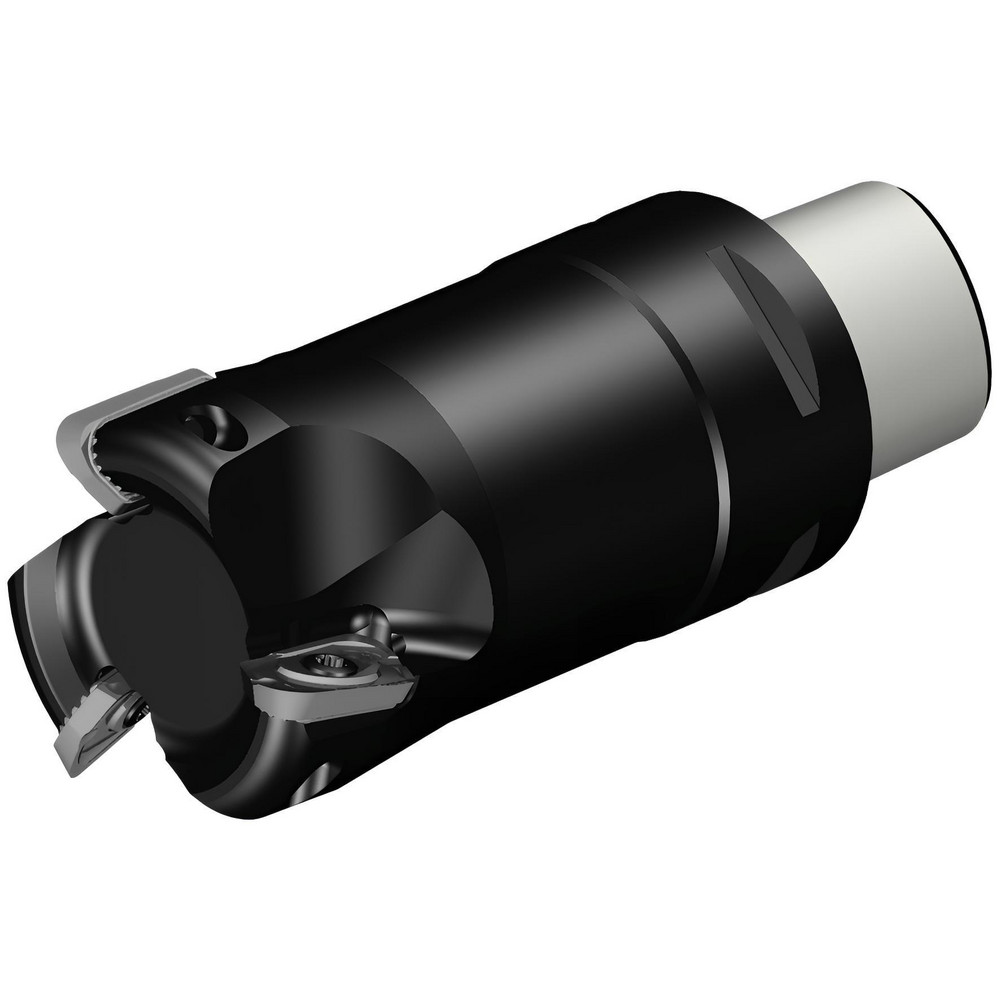

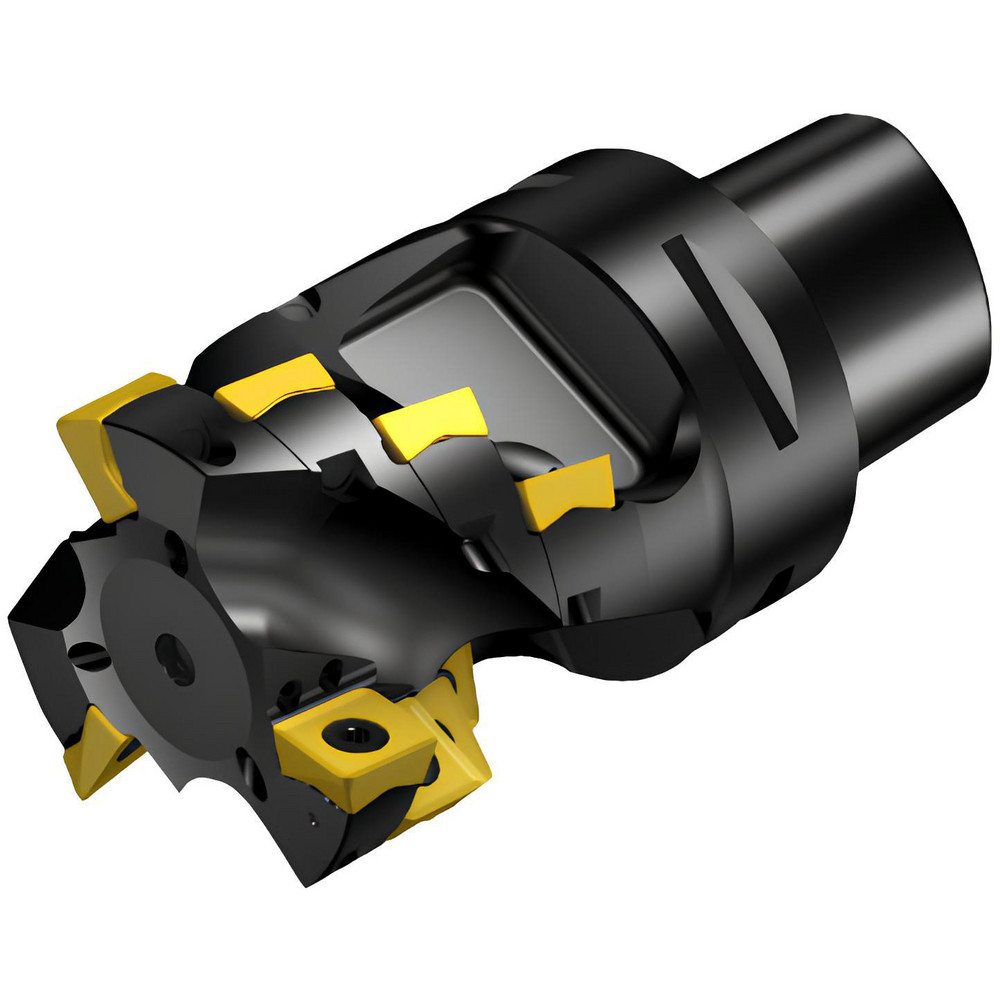

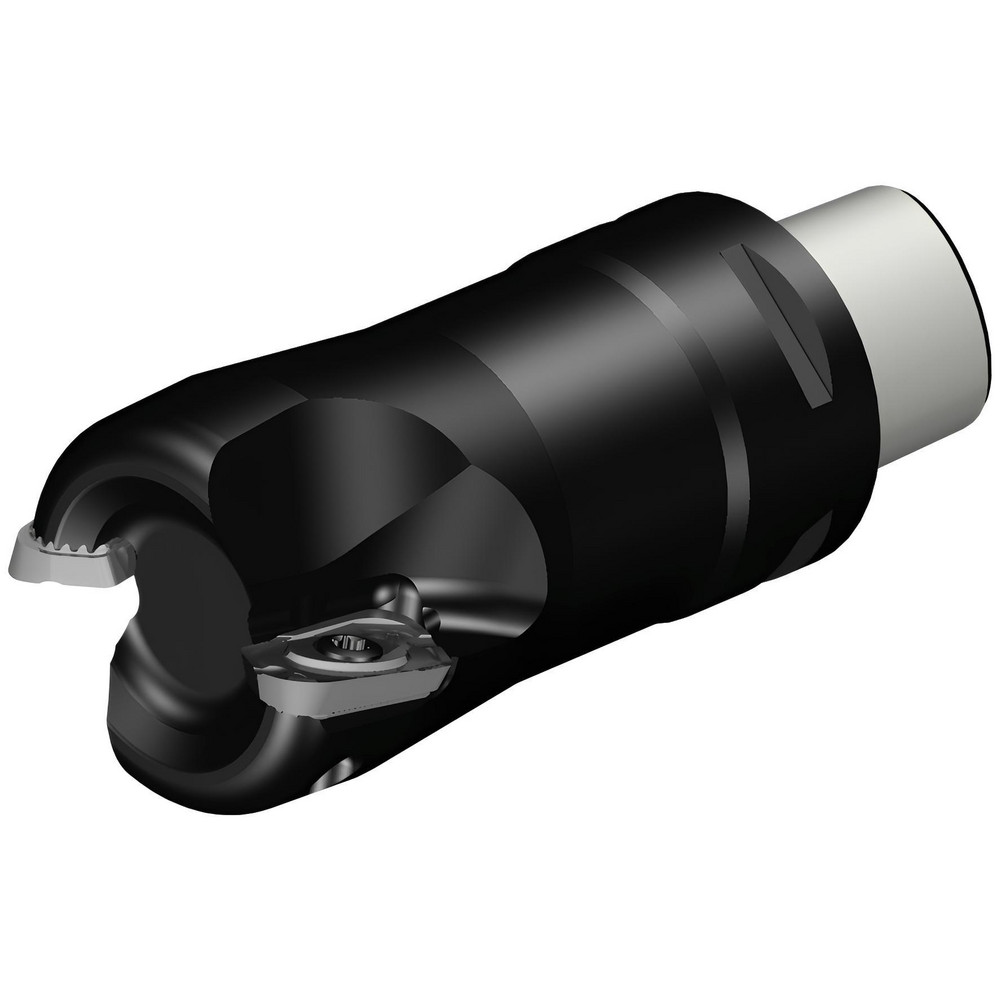

Takes 5 Inserts, 90° Lead Angle, 81mm High, R790-1604.. Insert Style, Through Coolant, Series CoroMill 790
| Maximum Cutting Diameter (Decimal Inch) | 1.7323 |
|---|---|
| Maximum Cutting Diameter (mm) | 44.00 |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Compatible Insert Size Code | R790-1604.. |
| Cutter Style | R790 |
| Cutting Direction | Right Hand |

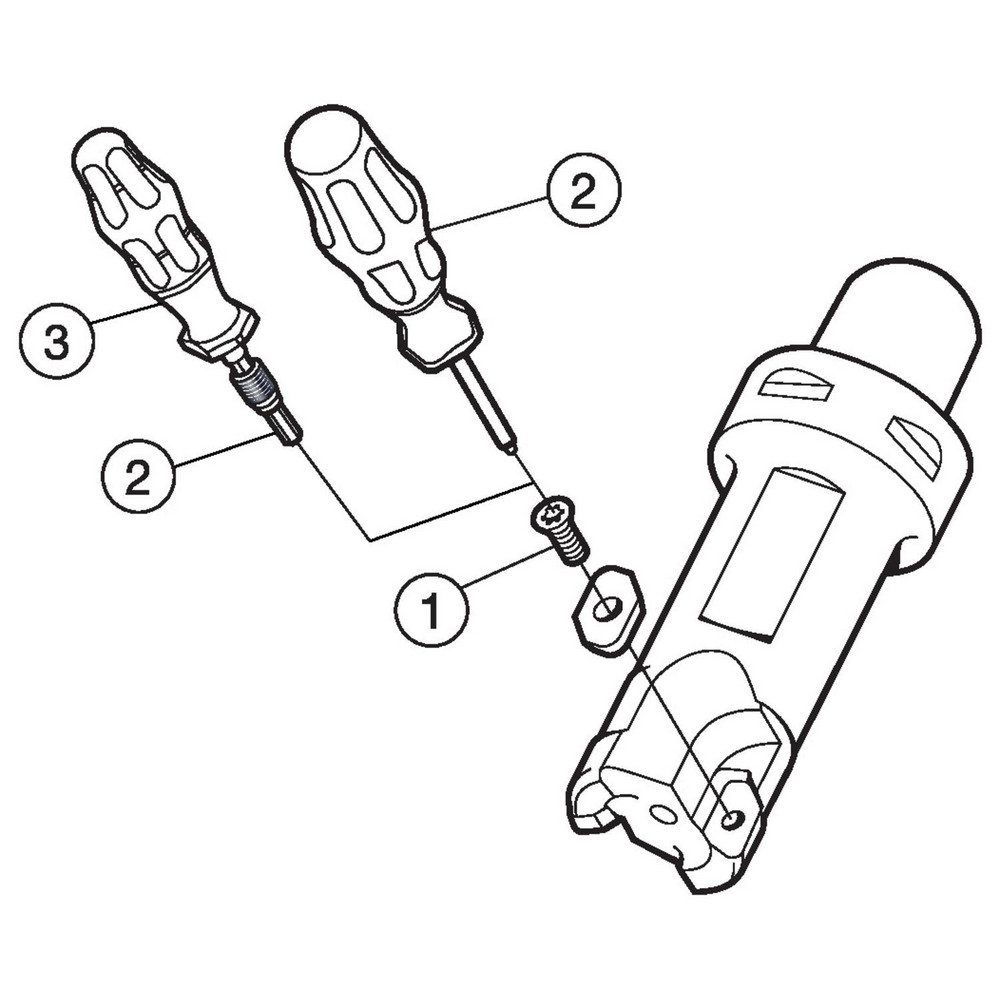

| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | CoroMill 790 |
| Overall Height (Decimal Inch) | 3.1890 |
| Cutting Edge Length (Decimal Inch) | 0.4724 |
| Complete Insert Compatibility | R790-1604.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 49336167 |
