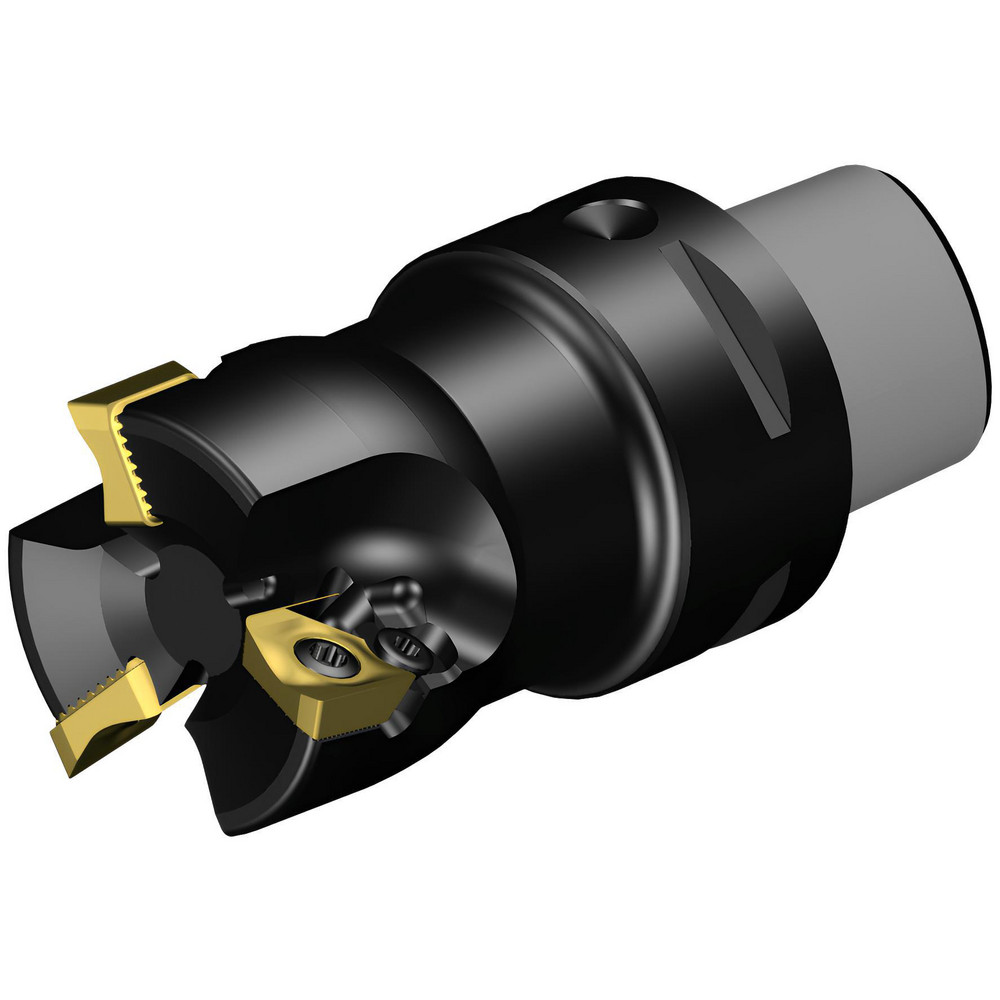

Takes 8 Inserts, 90° Lead Angle, 2.4803" High, R590-1105.. Insert Style, Through Coolant, Series CoroMill Century
| Maximum Cutting Diameter (Inch) | 5 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 5.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | R590-1105.. |
| Cutter Style | RA590 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | CoroMill Century |
| Overall Height (Decimal Inch) | 2.4803 |
| Cutting Edge Length (Decimal Inch) | 0.4331 |
| Complete Insert Compatibility | R590-1105.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 8 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 40327884 |
