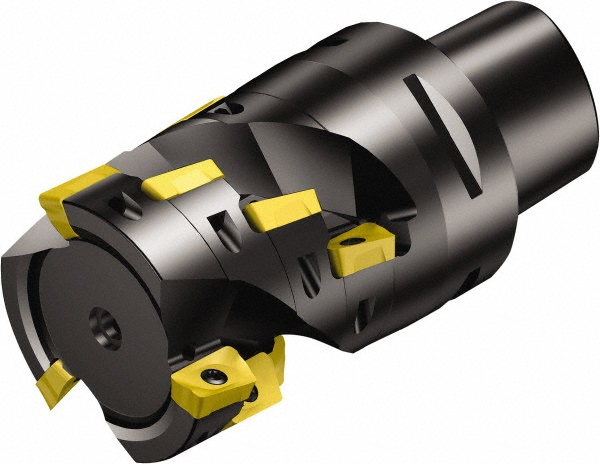

Takes 33 Inserts, 90° Lead Angle, 173.59mm High, R390-11.. Insert Style, Through Coolant

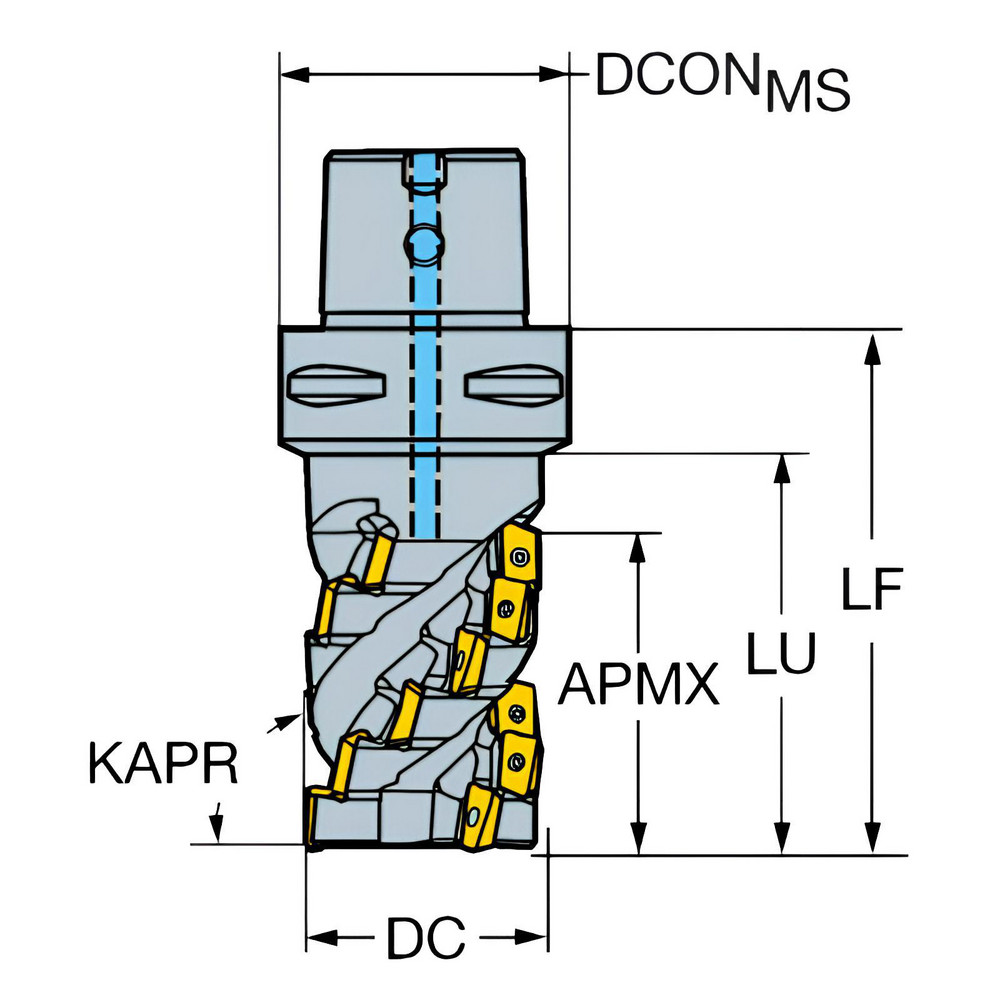

| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
|---|---|
| Maximum Cutting Diameter (mm) | 50.80 |
| Maximum Depth of Cut (mm) | 88.90 |
| Maximum Depth of Cut (Decimal Inch) | 3.5000 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Compatible Insert Size Code | R390-11.. |
| Cutter Style | RA390..Cx (LE) |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Overall Height (Decimal Inch) | 6.8341 |
| Complete Insert Compatibility | R390-11.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 33 |
| Country of Origin | Sweden |
