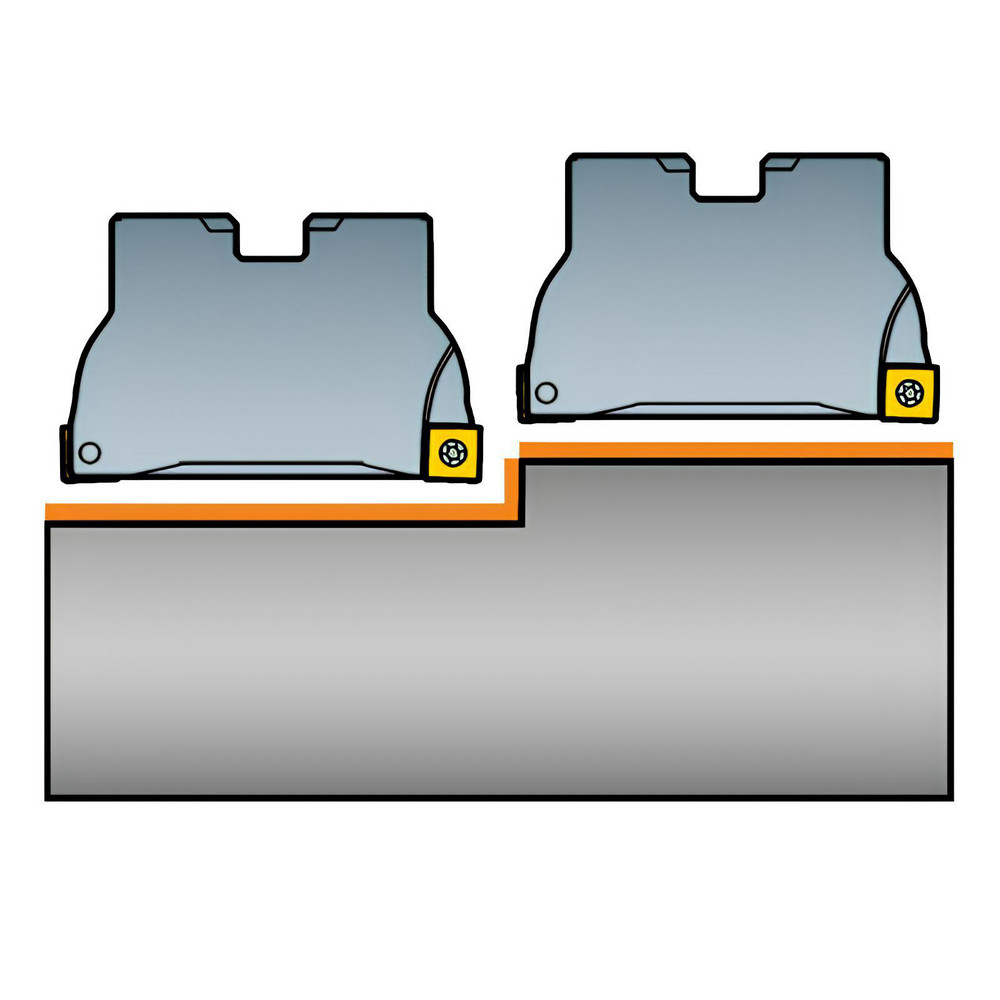

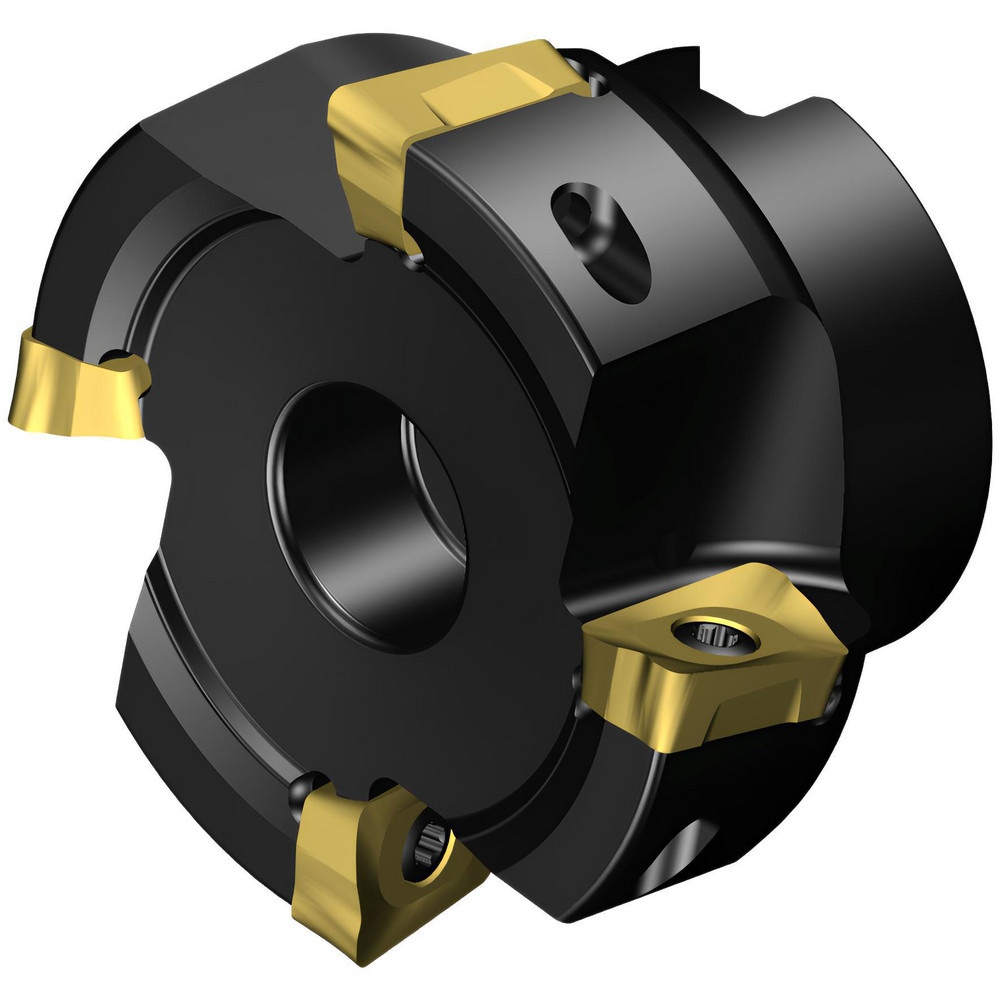

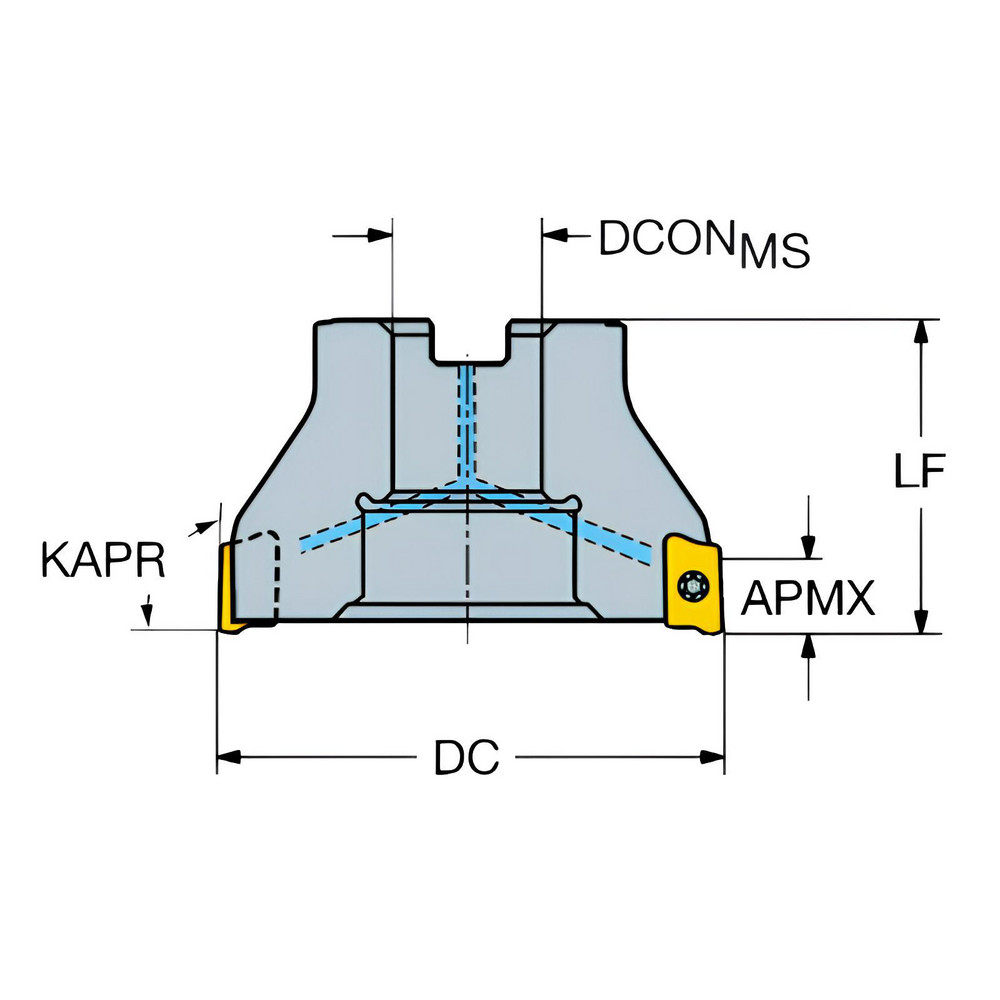

Takes 3 Inserts, 90° Lead Angle, 40mm High, R390-18.. Insert Style
| Maximum Cutting Diameter (Decimal Inch) | 1.9685 |
|---|---|
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 15.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.6063 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Compatible Insert Size Code | R390-18.. |
| Cutter Style | R390..Qxx |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Overall Height (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | R390-18.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Number Of Cutter Inserts | 3 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 49521412 |
