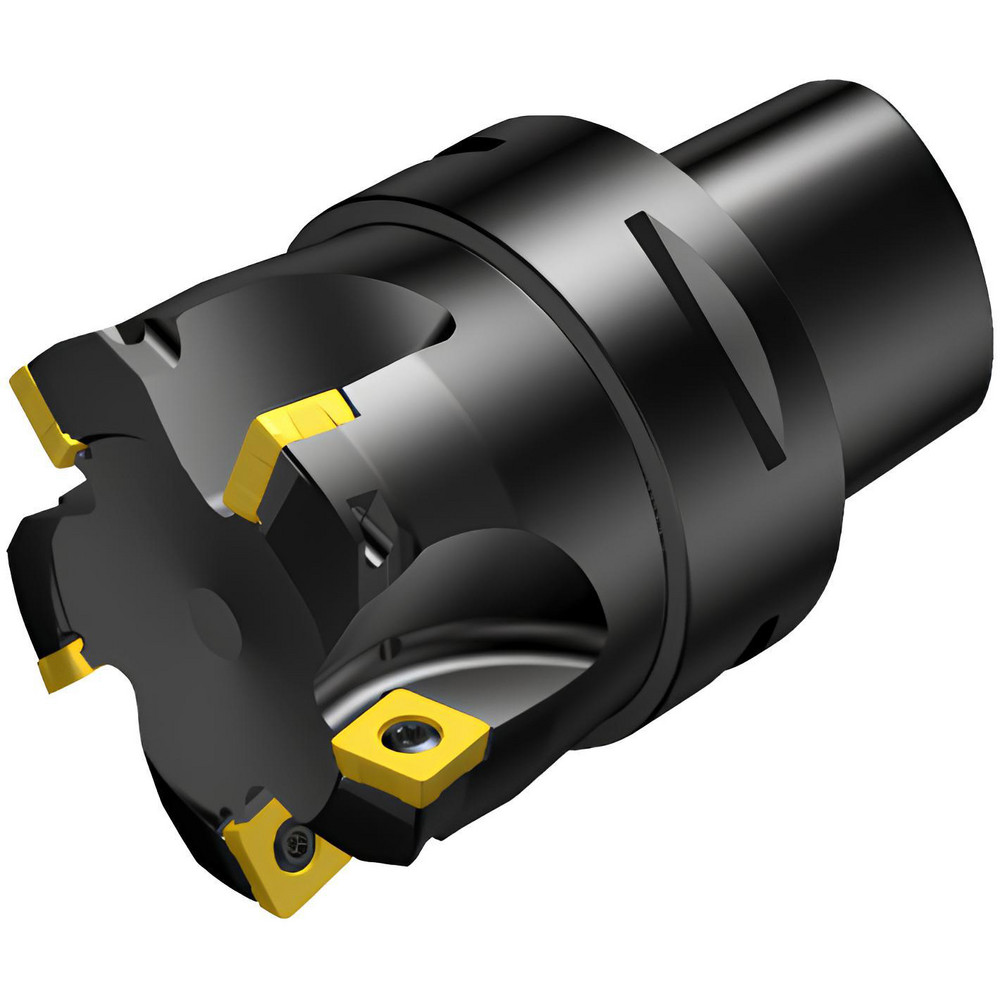

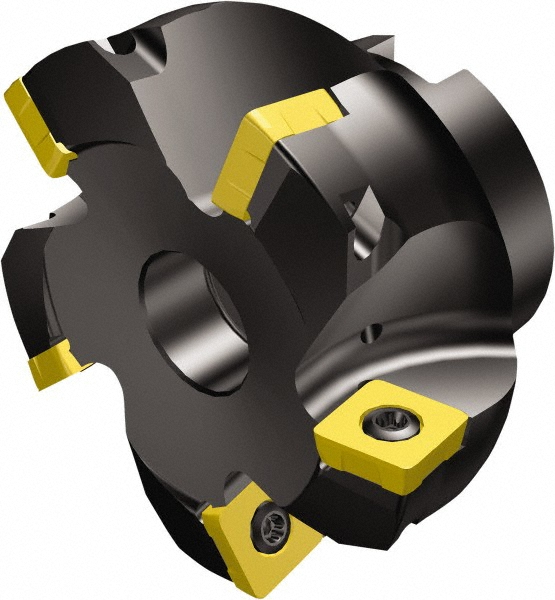

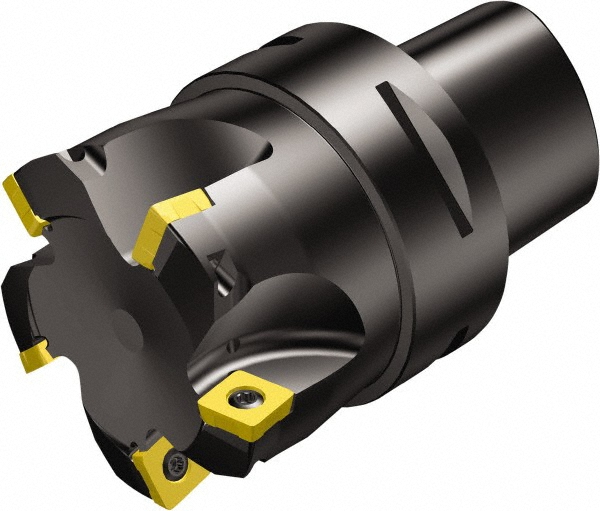

Takes 6 Inserts, 10° Lead Angle, 110mm High, R210-090412M Insert Style, Through Coolant, Series CoroMill 210

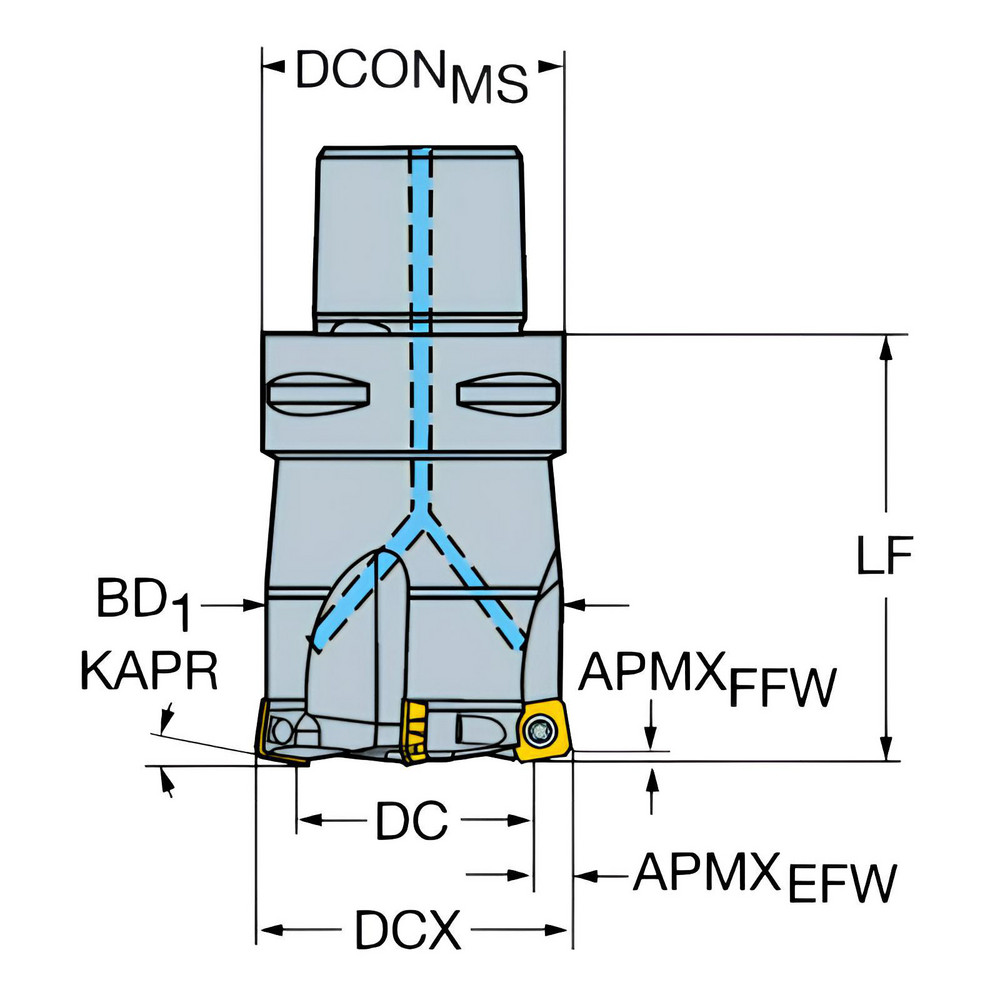

| Maximum Cutting Diameter (Decimal Inch) | 2.0433 |
|---|---|
| Maximum Cutting Diameter (mm) | 51.90 |

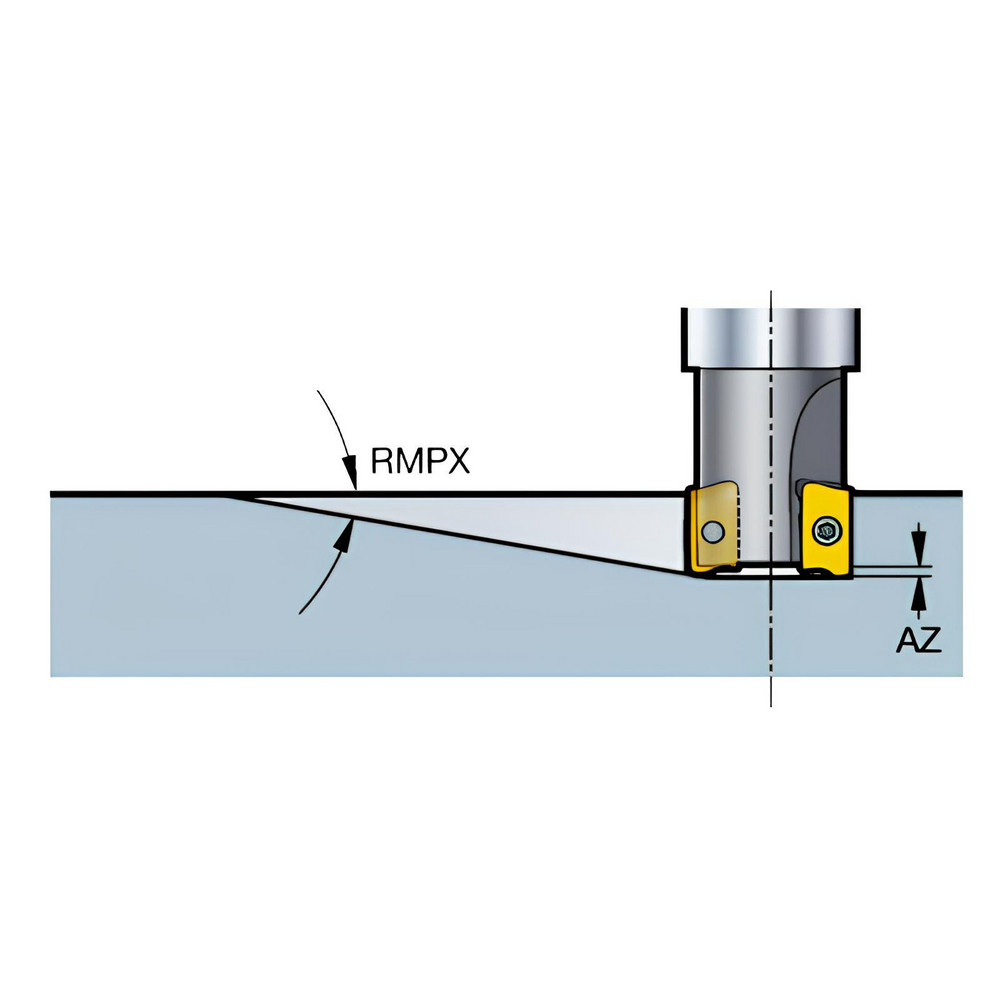

| Maximum Depth of Cut (mm) | 1.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Compatible Insert Size Code | R210-090412M |
| Cutter Style | R210..Cx |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 10 |
| Series | CoroMill 210 |
| Maximum Body Diameter (Decimal Inch) | 2.4787 |
| Overall Height (Decimal Inch) | 4.3307 |
| Complete Insert Compatibility | R210-090412M |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 43853019 |
