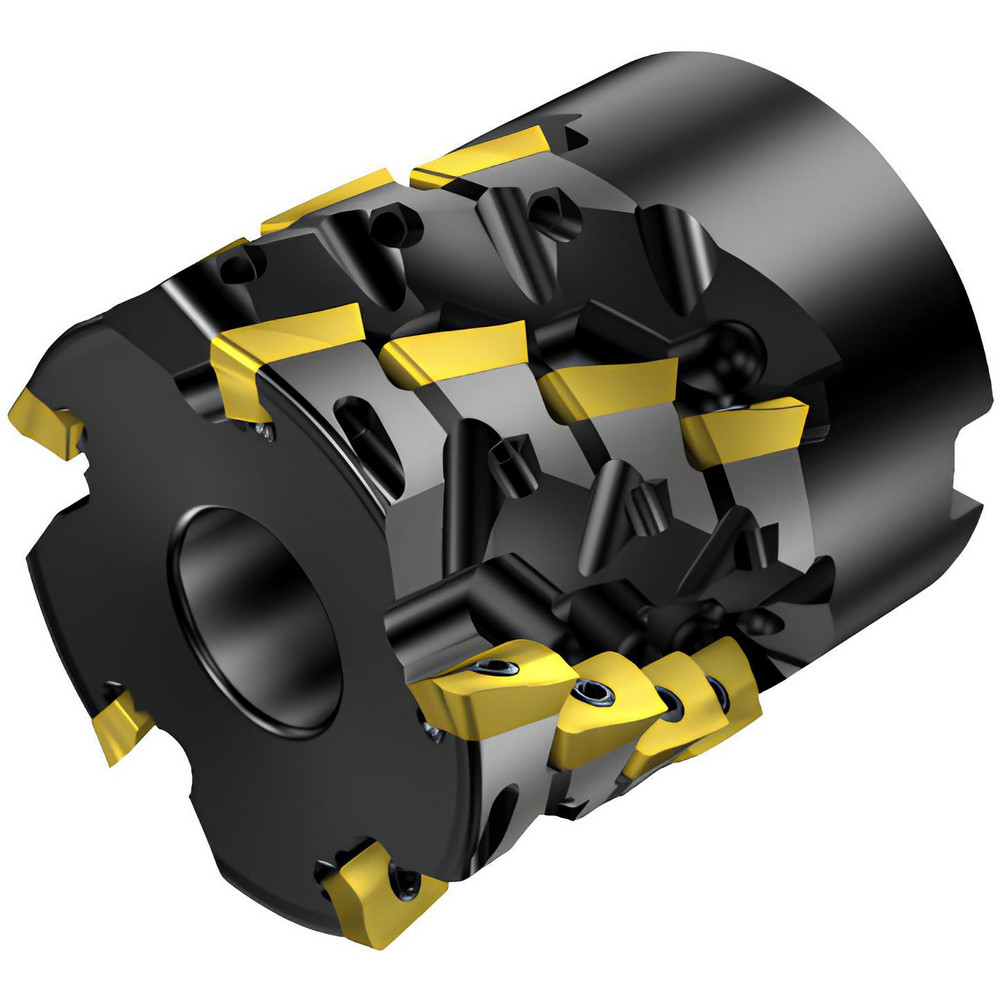

Takes 8 Inserts, 90° Lead Angle, 82.6mm High, R390-18.. Insert Style

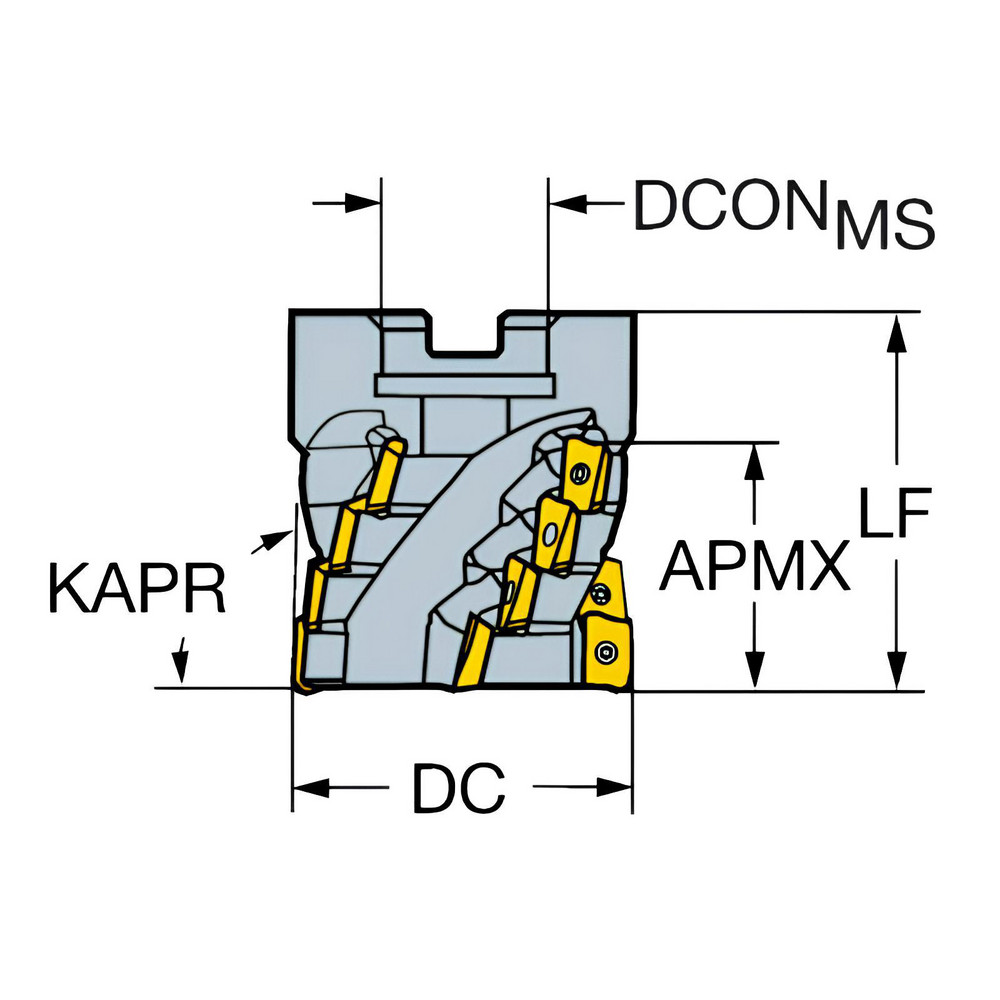

| Maximum Cutting Diameter (Decimal Inch) | 2.1260 |
|---|---|
| Maximum Cutting Diameter (mm) | 54.00 |
| Maximum Depth of Cut (mm) | 57.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.2441 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Compatible Insert Size Code | R390-18.. |
| Cutter Style | R390..Qxx (LE) |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Overall Height (Decimal Inch) | 3.2520 |
| Complete Insert Compatibility | R390-18.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Number Of Cutter Inserts | 8 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49525132 |
