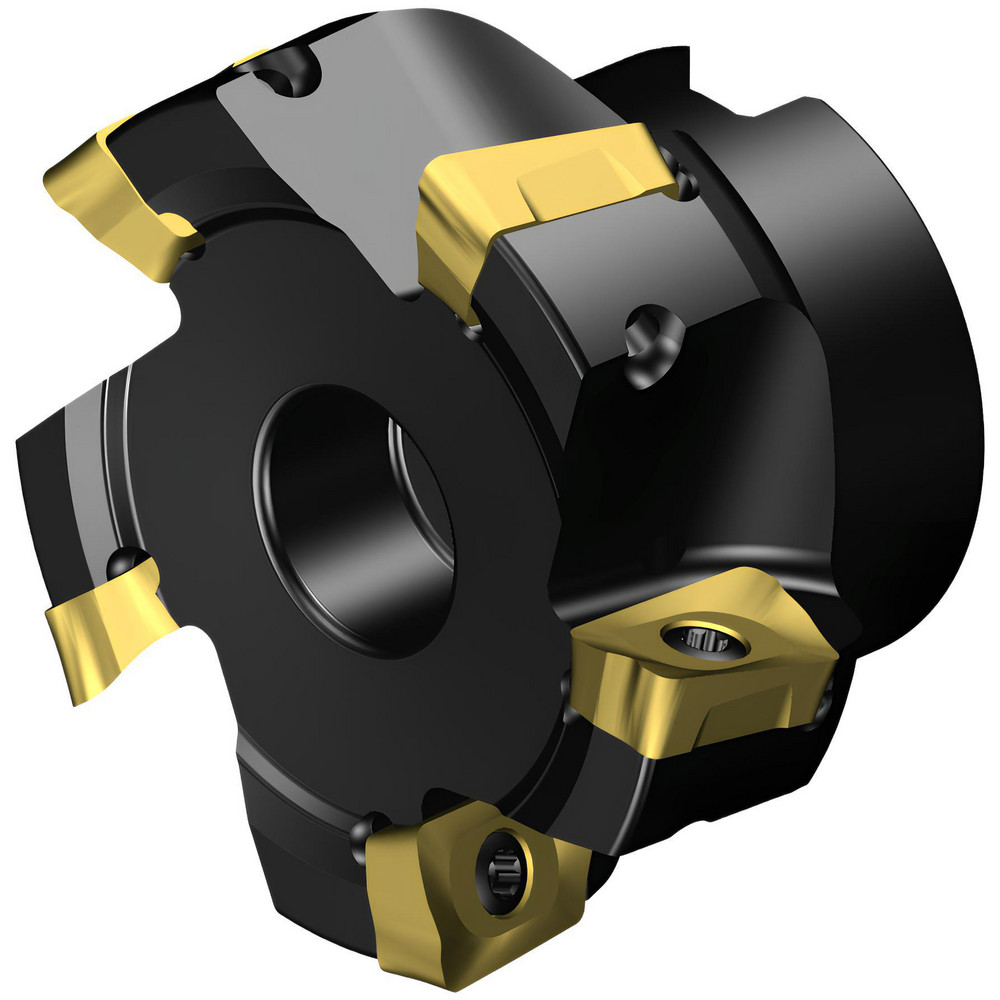

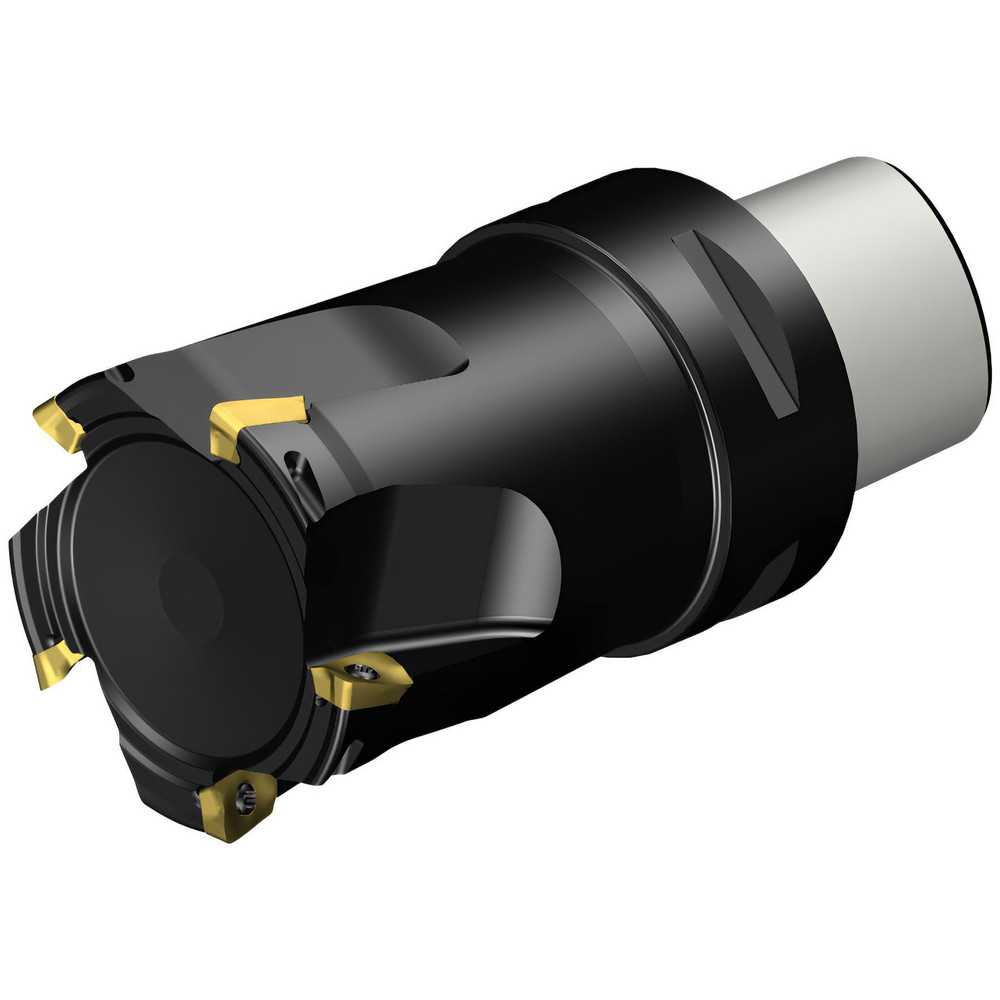

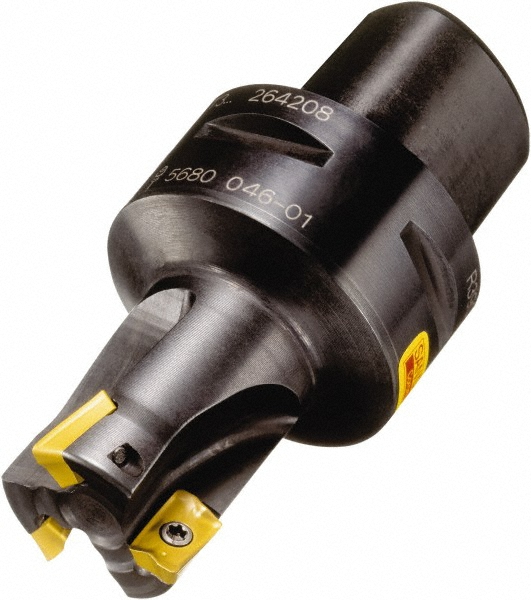

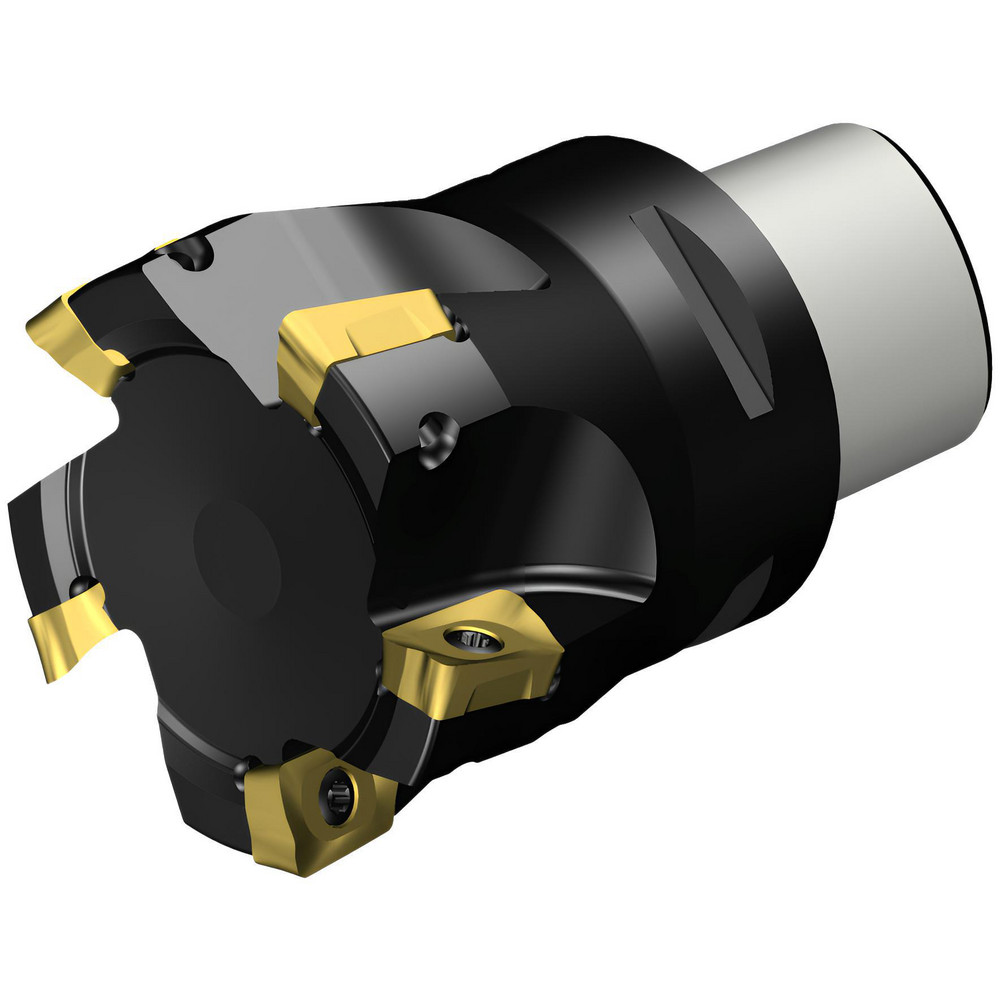

Takes 4 Inserts, 90° Lead Angle, 110mm High, R390-18.. Insert Style, Through Coolant

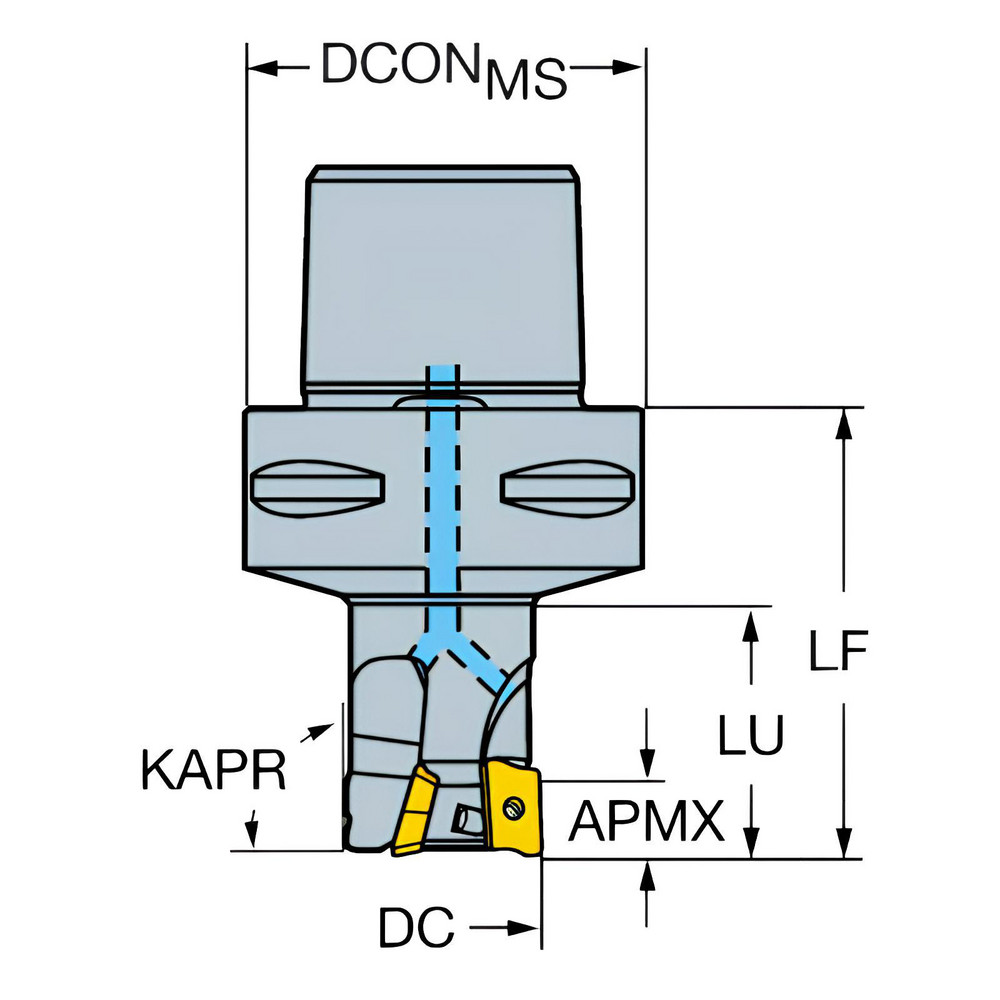

| Maximum Cutting Diameter (Decimal Inch) | 2.1260 |
|---|---|
| Maximum Cutting Diameter (mm) | 54.00 |
| Maximum Depth of Cut (mm) | 15.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.6063 |
| Arbor Hole Diameter (mm) | 50.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.9685 |
| Compatible Insert Size Code | R390-18.. |
| Cutter Style | R390..Cx |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Overall Height (Decimal Inch) | 4.3307 |
| Complete Insert Compatibility | R390-18.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49521404 |
