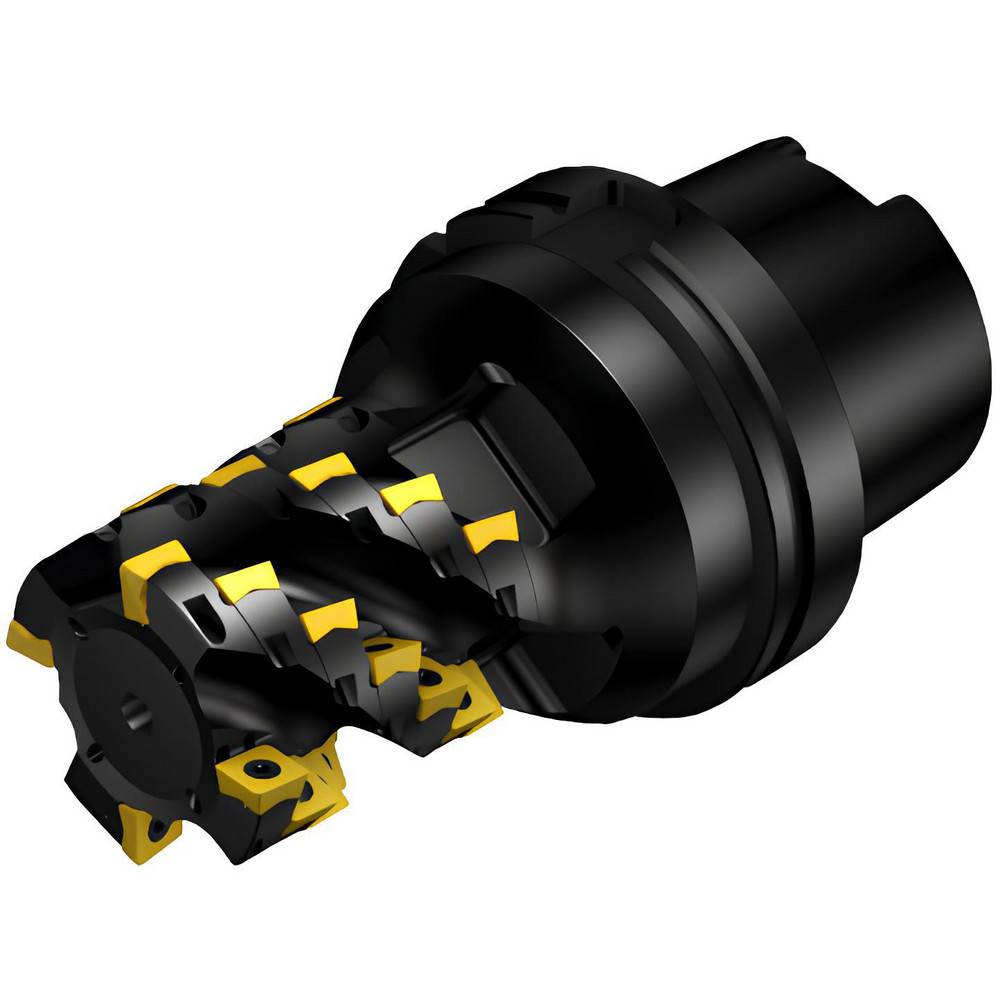

Takes 4 Inserts, 90° Lead Angle, 180mm High, 690-100508M-E-SL, 690-100510M-P-SL Insert Style, Through Coolant, Series CoroMill 690

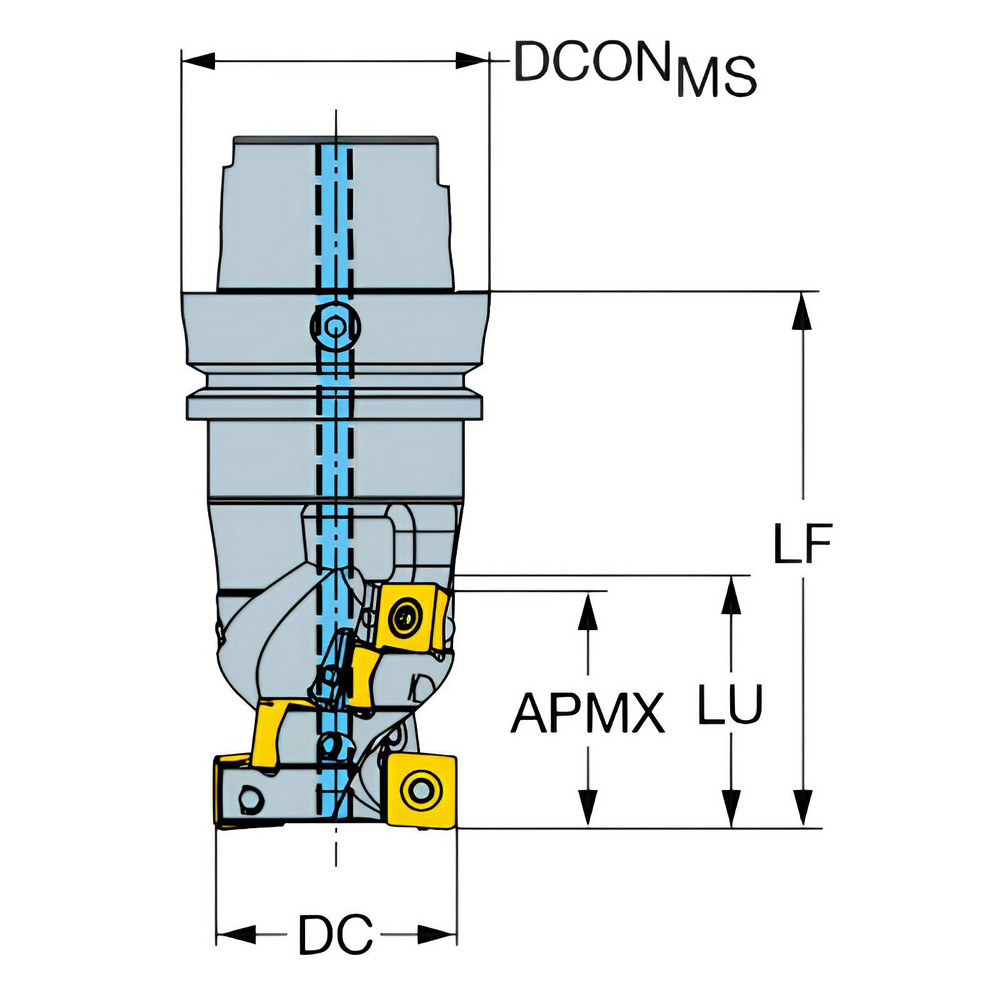

| Maximum Cutting Diameter (Decimal Inch) | 2.4803 |
|---|---|
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 105.00 |
| Maximum Depth of Cut (Decimal Inch) | 4.1339 |
| Arbor Hole Diameter (mm) | 125.00 |
| Arbor Hole Diameter (Decimal Inch) | 4.9213 |
| Compatible Insert Size Code | 690-100510M-P-SL; 690-100508M-E-SL |
| Cutter Style | 690 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | CoroMill 690 |
| Overall Height (Decimal Inch) | 7.0866 |
| Cutting Edge Length (Decimal Inch) | 4.1339 |
| Complete Insert Compatibility | 690-100510M-P-SL; 690-100508M-E-SL |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 49336670 |
