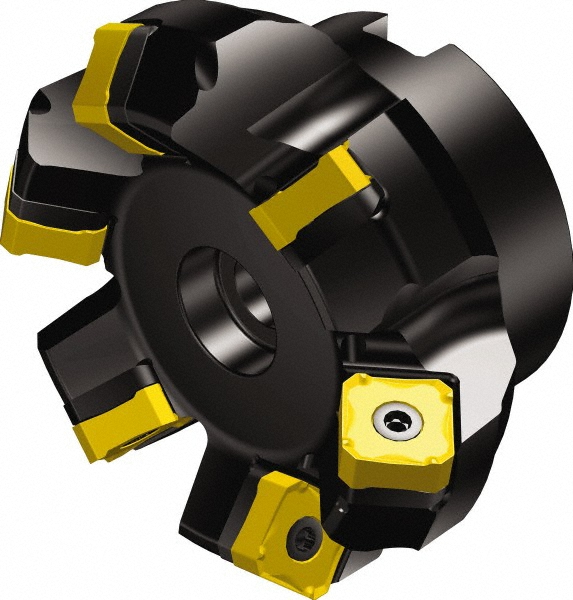

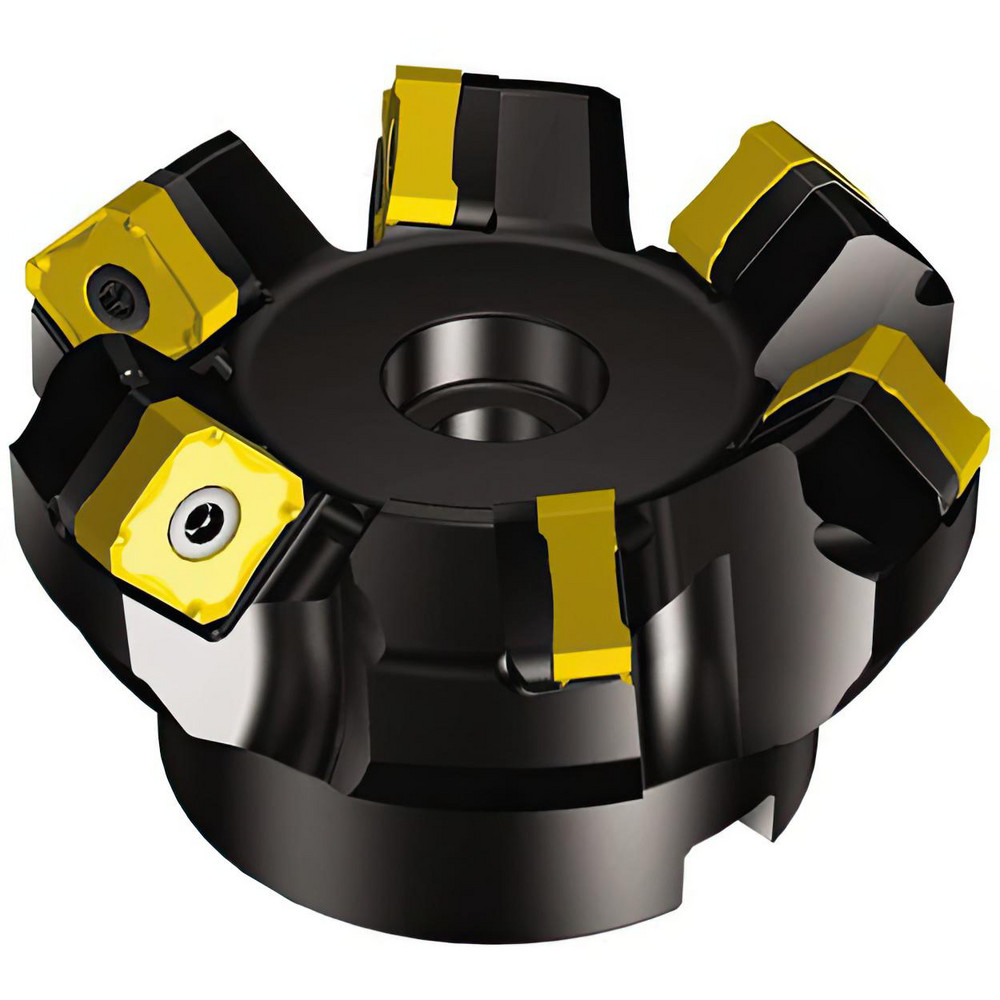

Takes 6 Inserts, 345R-13T5 Insert, Right Hand Cut, Through Coolant, Series CoroMill 345
| Minimum Cutting Diameter (mm) | 63.00 |
|---|---|
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Compatible Insert Size Code | 345R-13T5 |
| Cutter Style | 345..Qxx |
| Cutting Direction | Right Hand |
| Series | CoroMill 345 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Overall Height (Decimal Inch) | 1.7717 |
| Maximum RPM | 15500 |
| Complete Insert Compatibility | 345R-13T5 |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Yes |
| UNSPSC Code | 23291600 |
| Country of Origin | Sweden |
| MSC Number | MSC# 54949573 |
