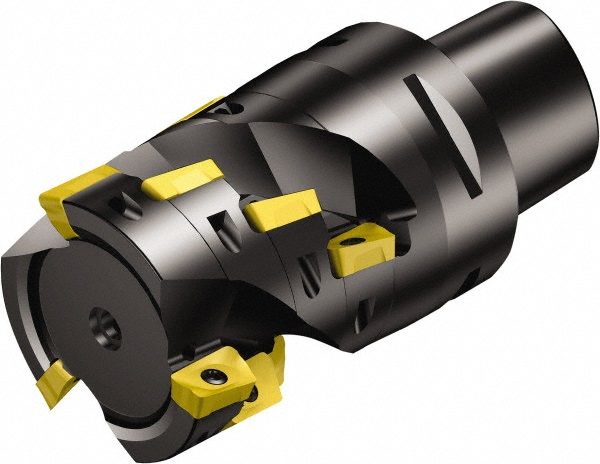

90° Lead Angle, 194mm High, 690-100508M-E-SL, 690-100510M-P-SL Insert Style, Through Coolant

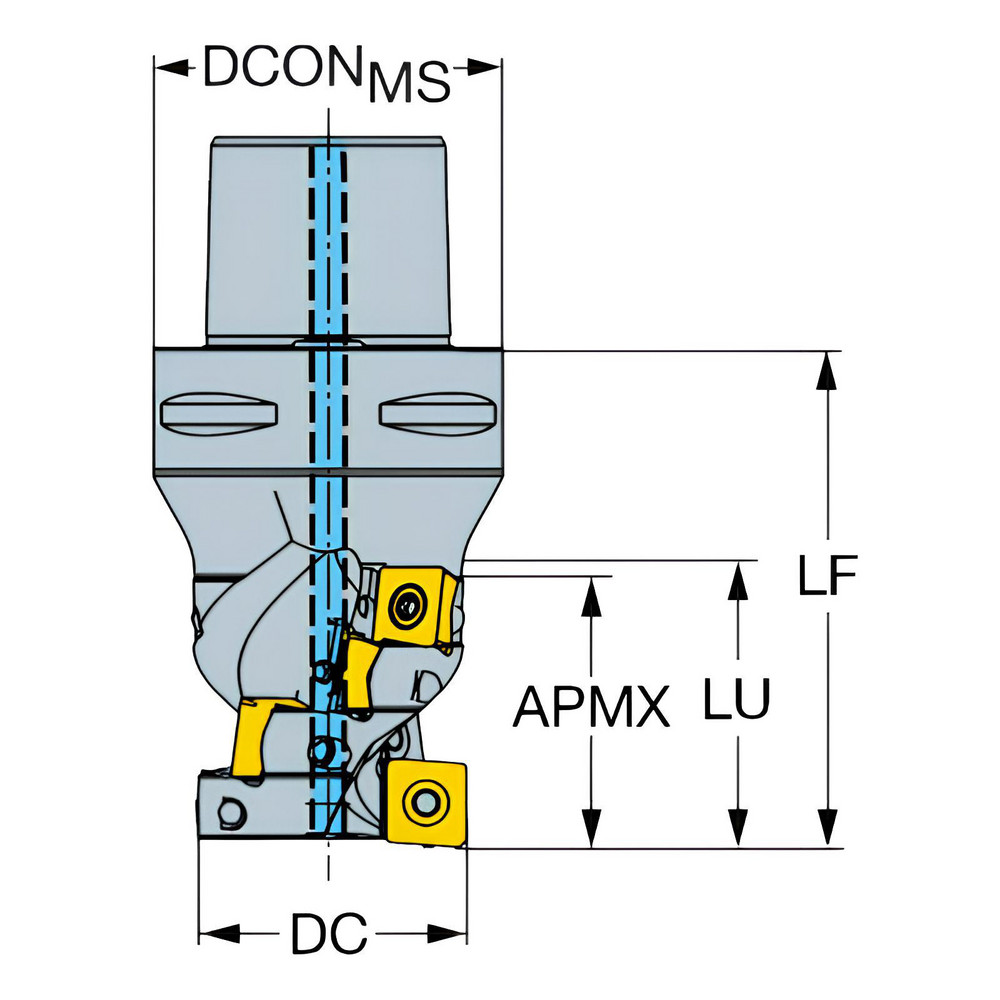

| Maximum Cutting Diameter (Decimal Inch) | 2.4803 |
|---|---|
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 112.00 |
| Maximum Depth of Cut (Decimal Inch) | 4.4094 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Compatible Insert Size Code | 690-100510M-P-SL; 690-100508M-E-SL |
| Cutter Style | 690..Cx |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | CoroMill 690 |
| Overall Height (Decimal Inch) | 7.6378 |
| Complete Insert Compatibility | 690-100510M-P-SL; 690-100508M-E-SL |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 49526437 |
