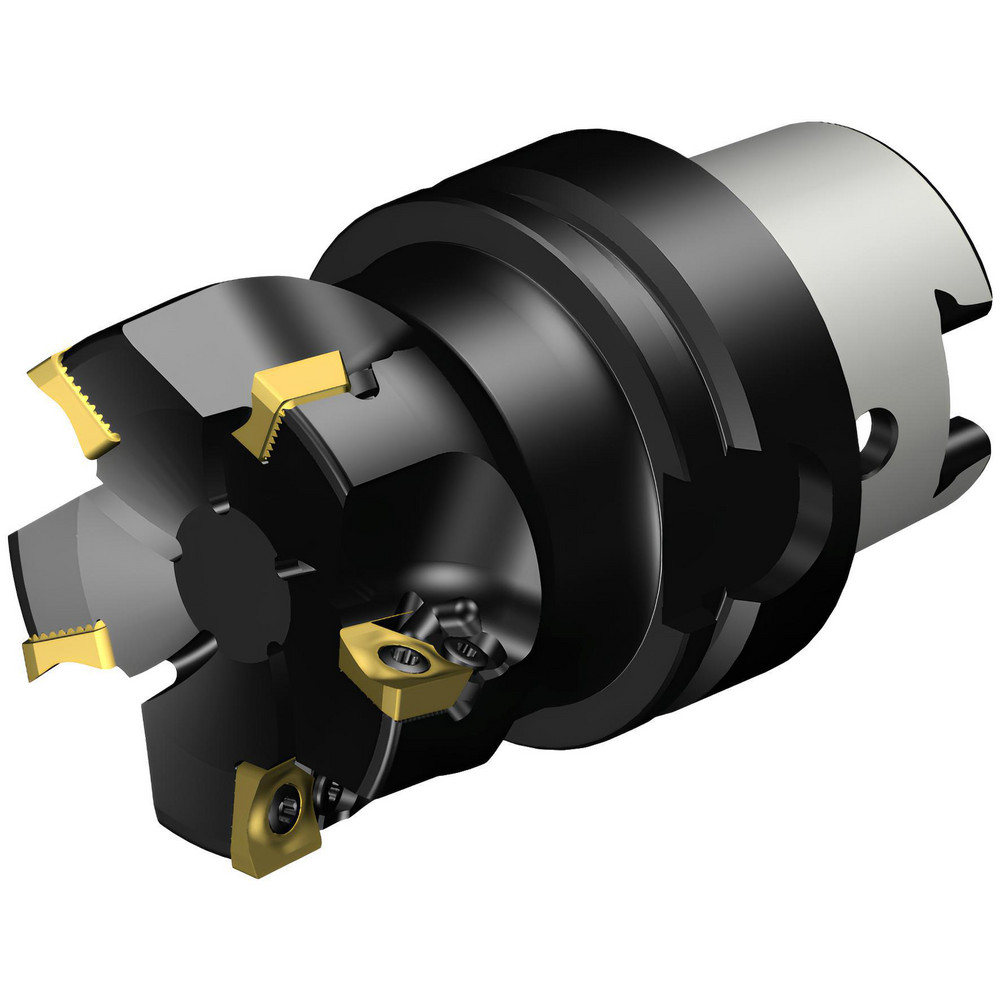

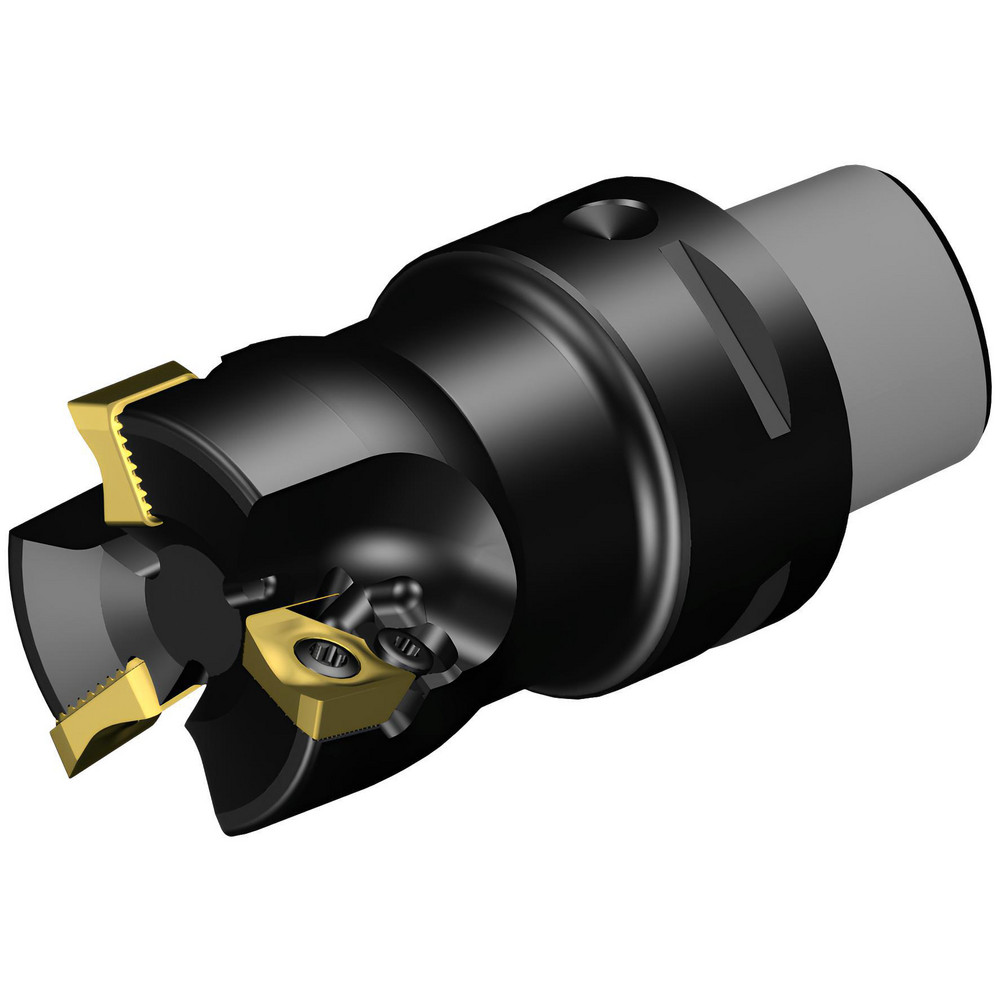

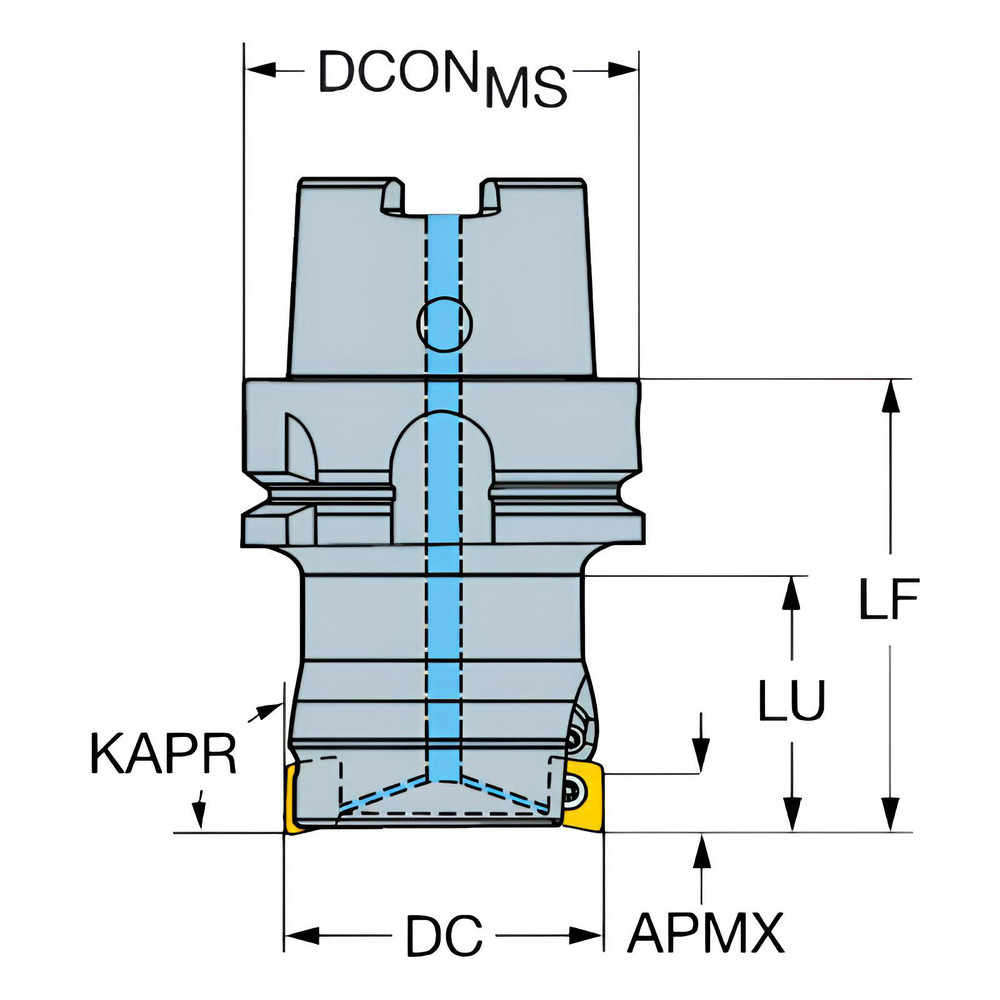

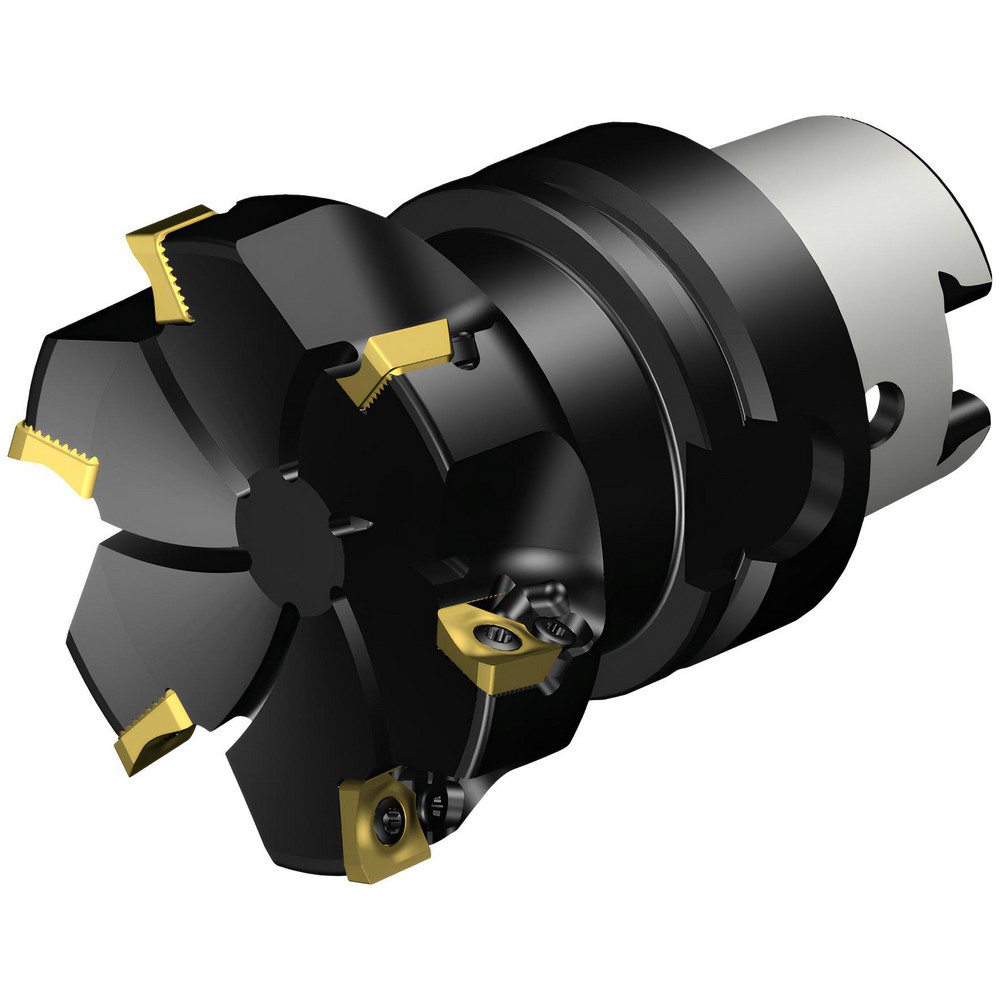

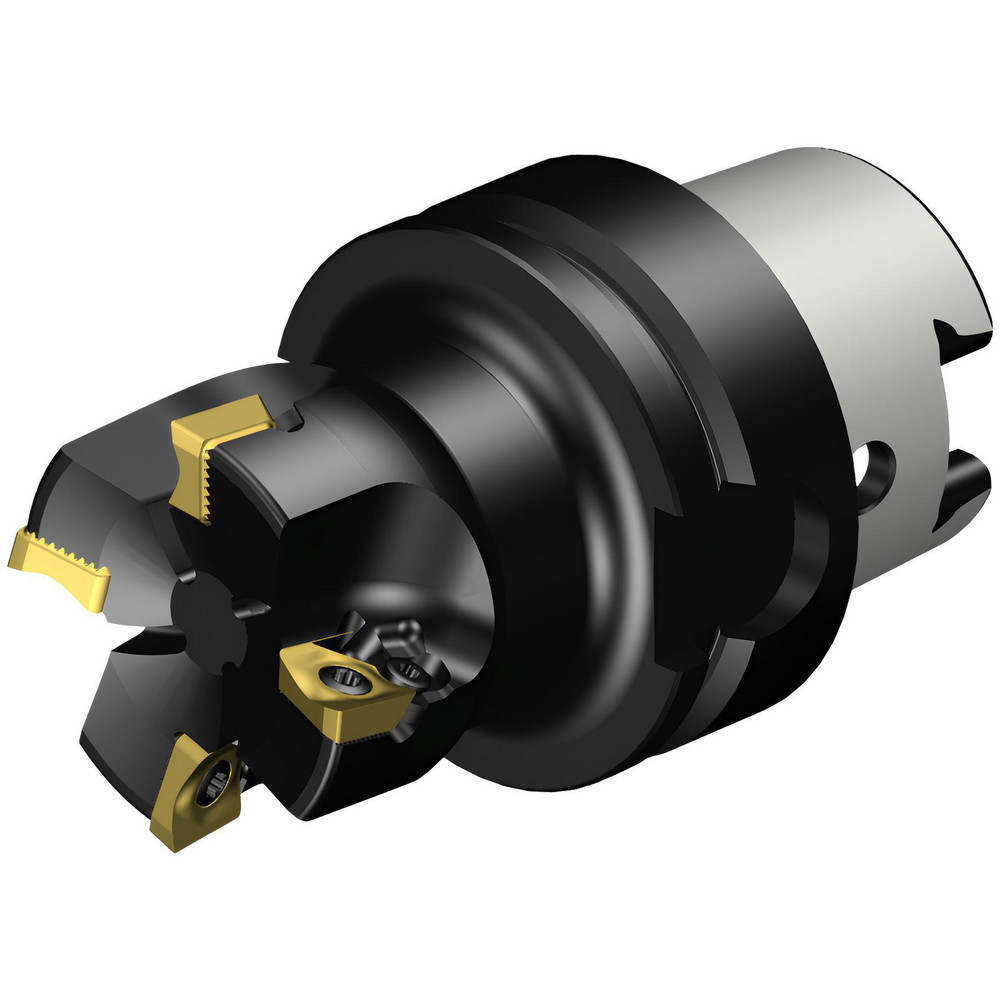

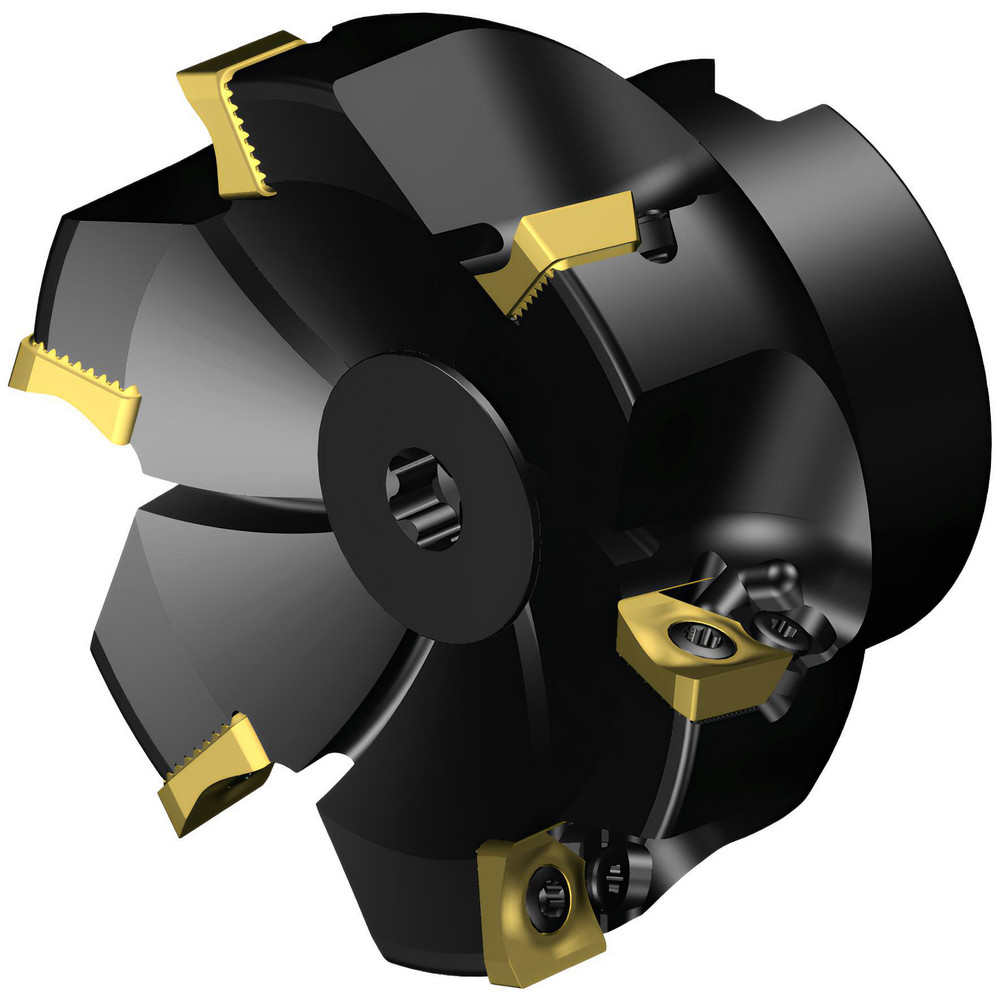

Takes 5 Inserts, 90° Lead Angle, 103mm High, R590-1105.. Insert Style, Through Coolant
| Maximum Cutting Diameter (Decimal Inch) | 2.4803 |
|---|---|
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Compatible Insert Size Code | R590-1105.. |
| Cutter Style | R590..HAxx |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | CoroMill Century |
| Overall Height (Decimal Inch) | 4.0551 |
| Complete Insert Compatibility | R590-1105.. |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49521339 |
