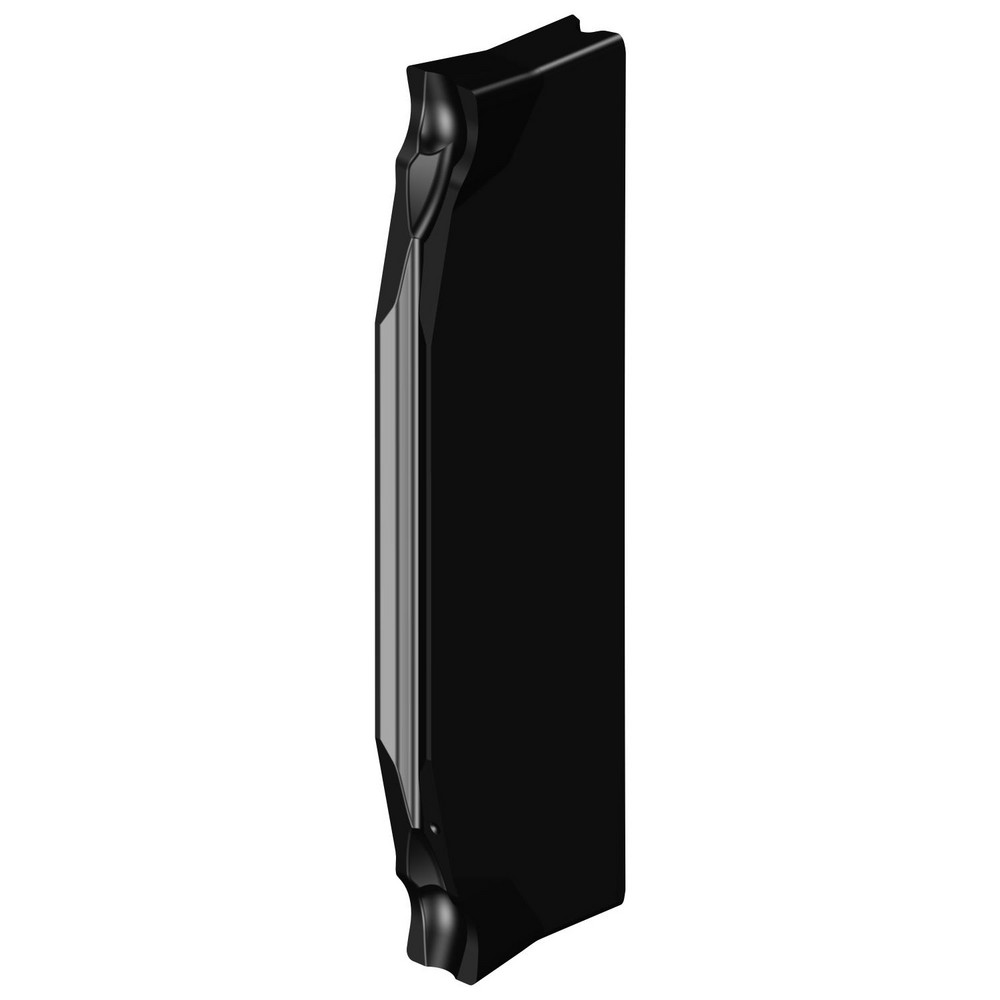

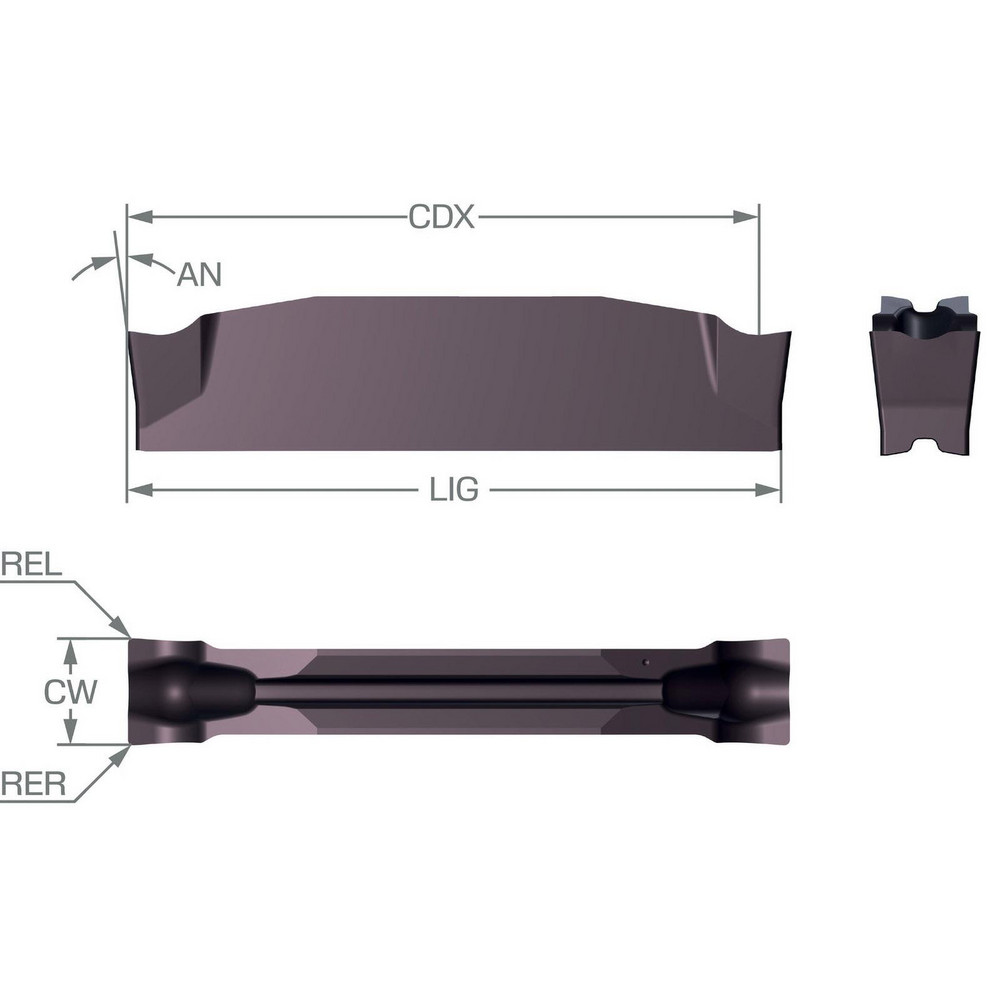

0 deg Left Hand Lead Angle, Series CoroCut® 2
| Insert Style | C2I |
|---|---|
| Insert Size Code | E2 |
| Insert Material | Carbide |
| Manufacturer Grade | 1225 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Cutting Width (mm) | 2.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Left Hand |
| Insert Hand | Left Hand |
| Lead Angle | 0 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | CM |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-off; Parting |
| Series | CoroCut® 2 |
| Coating Process | PVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | C2I-E2N-0200-0002-CM1225 |
| Cutting Height (mm) | 19.01 |
| Cutting Height (Decimal Inch) | 0.7484 |
| Manufacturers Catalog Number | C2I-E2N-0200-0002-CM1225 |
| Insert Seat Size | E |
| Cutting Direction | Left Hand |
| Coating/Finish | TiAlN/TiAlSiN/TiSiN |
| UNSPSC Code | 23242105 |
| MSC Number | MSC# 76658582 |
