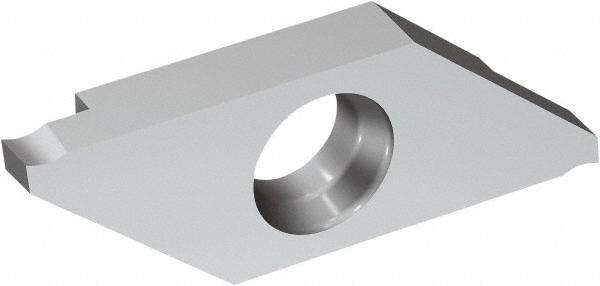

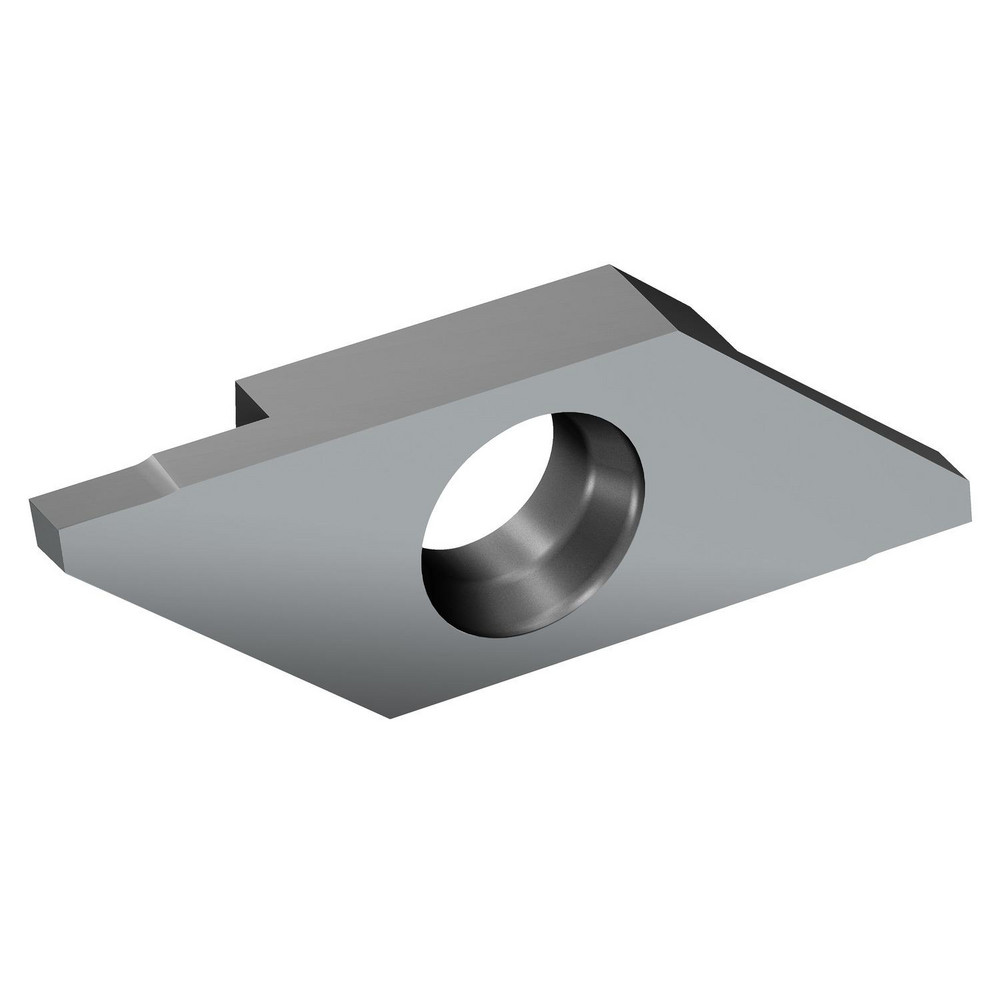

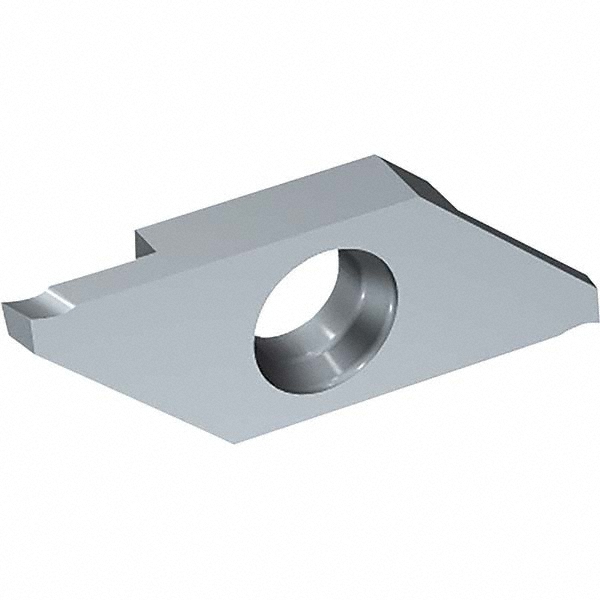

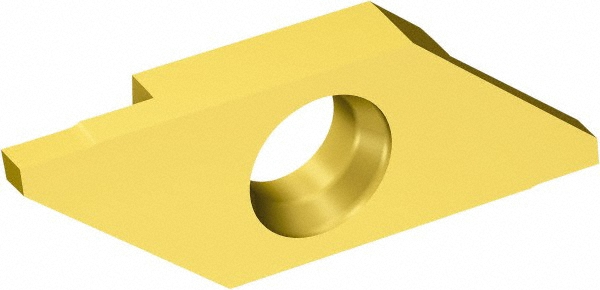

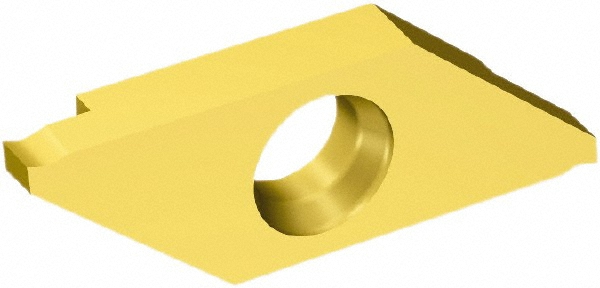

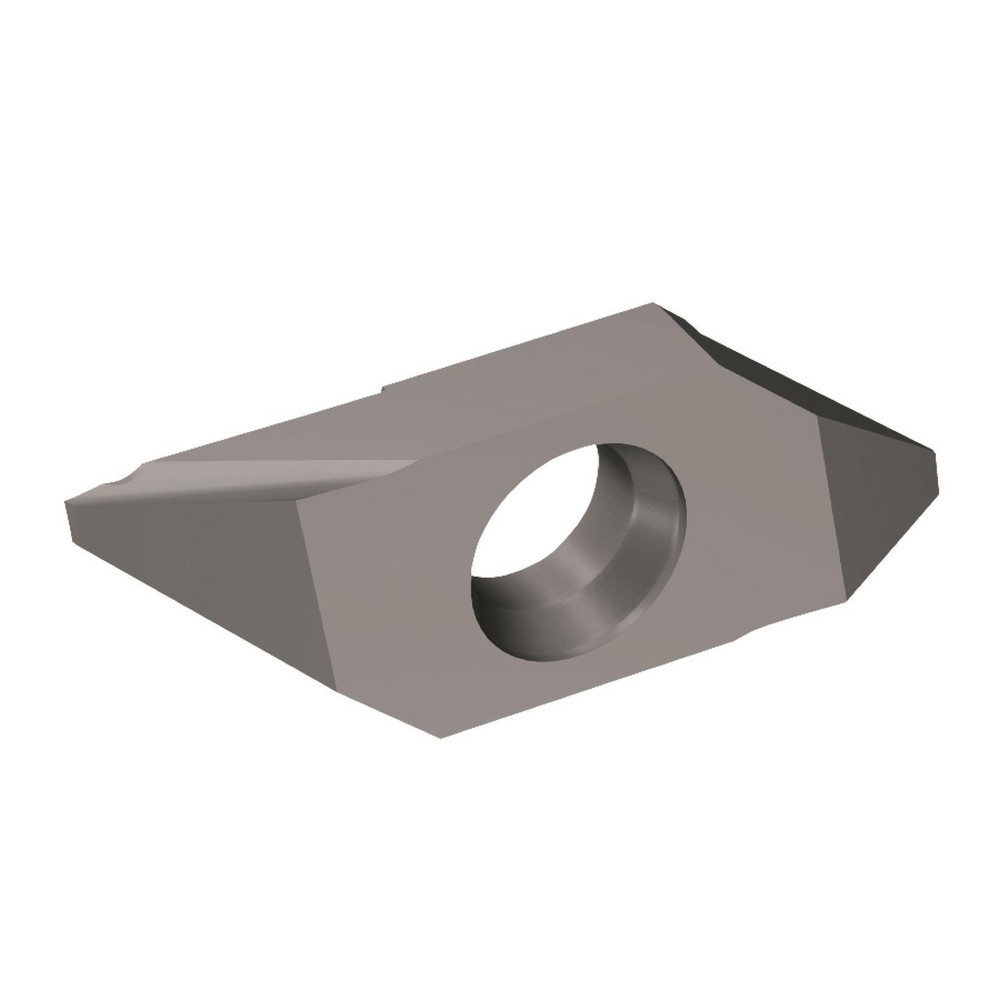

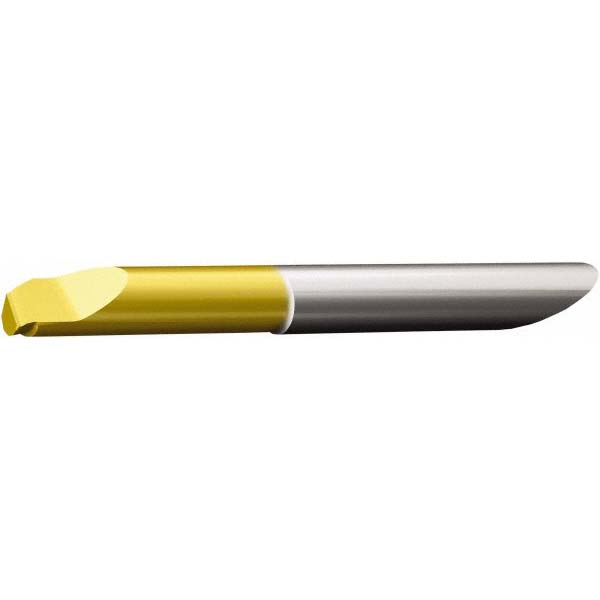

Series CoroCut XS
| Insert Style | MAGR |
|---|---|
| Insert Size Code | 3 |
| Insert Material | Carbide |
| Manufacturer Grade | H13A |
| Cutting Width (Decimal Inch) | 0.0591 |
| Cutting Width (mm) | 1.50 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Relief Angle | 6.00 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Chipbreaker | MAG |
| Cutting Tool Application | Grooving; Turning; Parting |
| Series | CoroCut XS |
| Width Tolerance | ±0.0008 (Inch) |
| Manufacturers Catalog Number | 5735408 |
| Maximum Depth of Cut (mm) | 3.70 |
| Insert Seat Size | 3 |
| Full Radius | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1457 |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 23242105 |
| Country of Origin | Japan |
| MSC Number | MSC# 54928130 |
