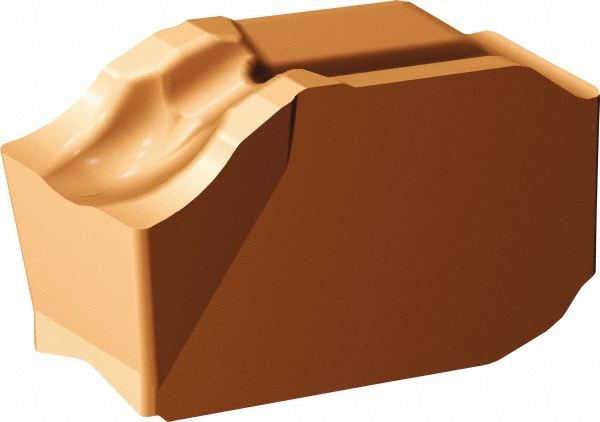

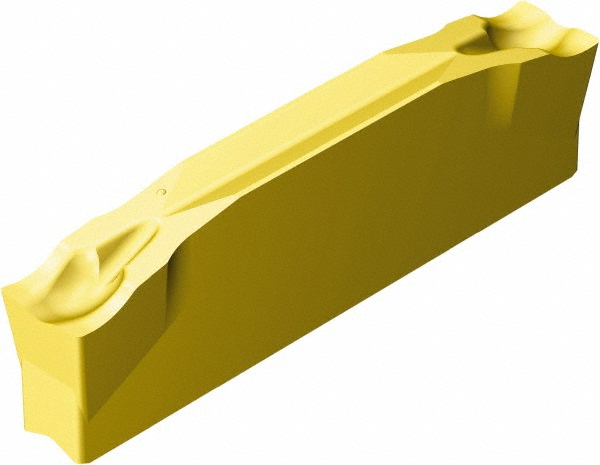

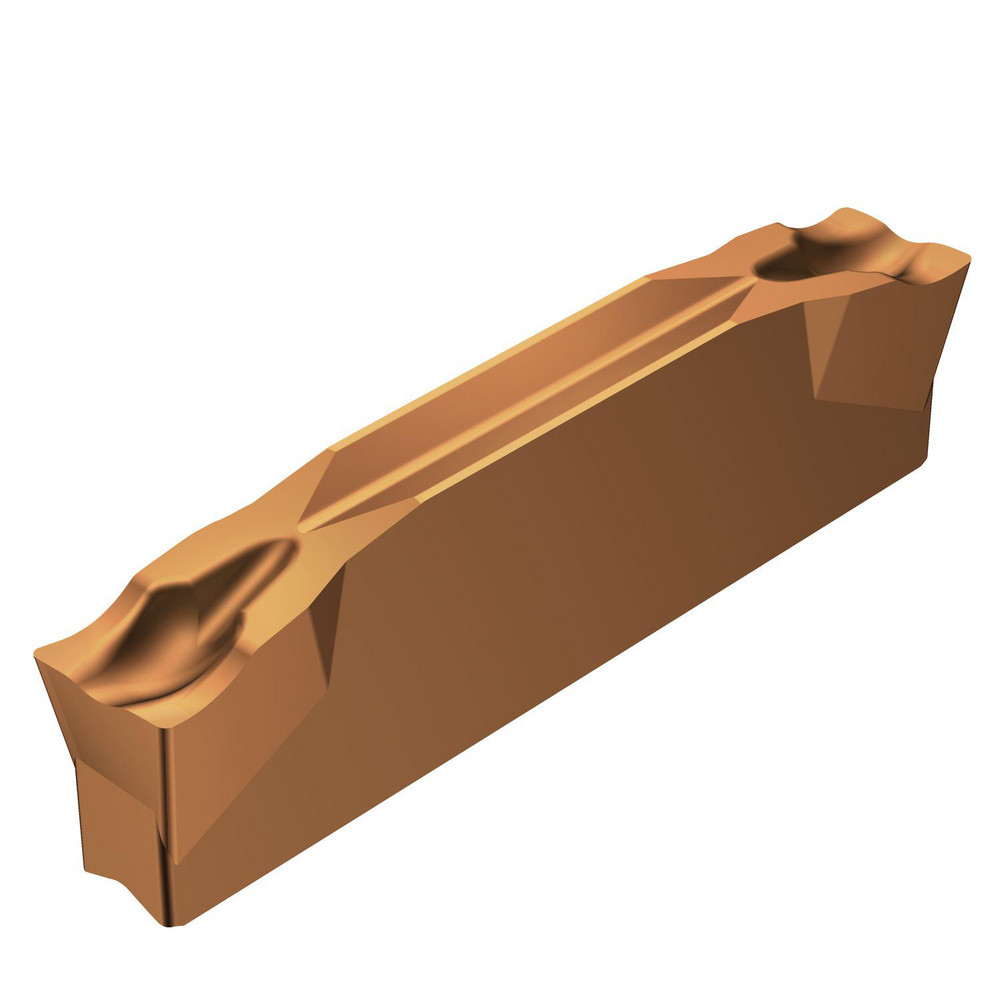

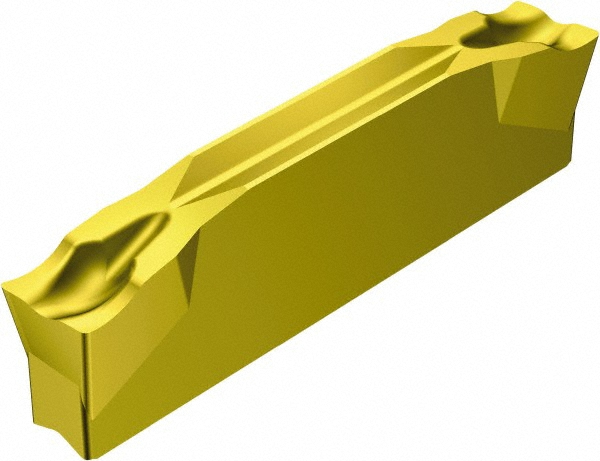

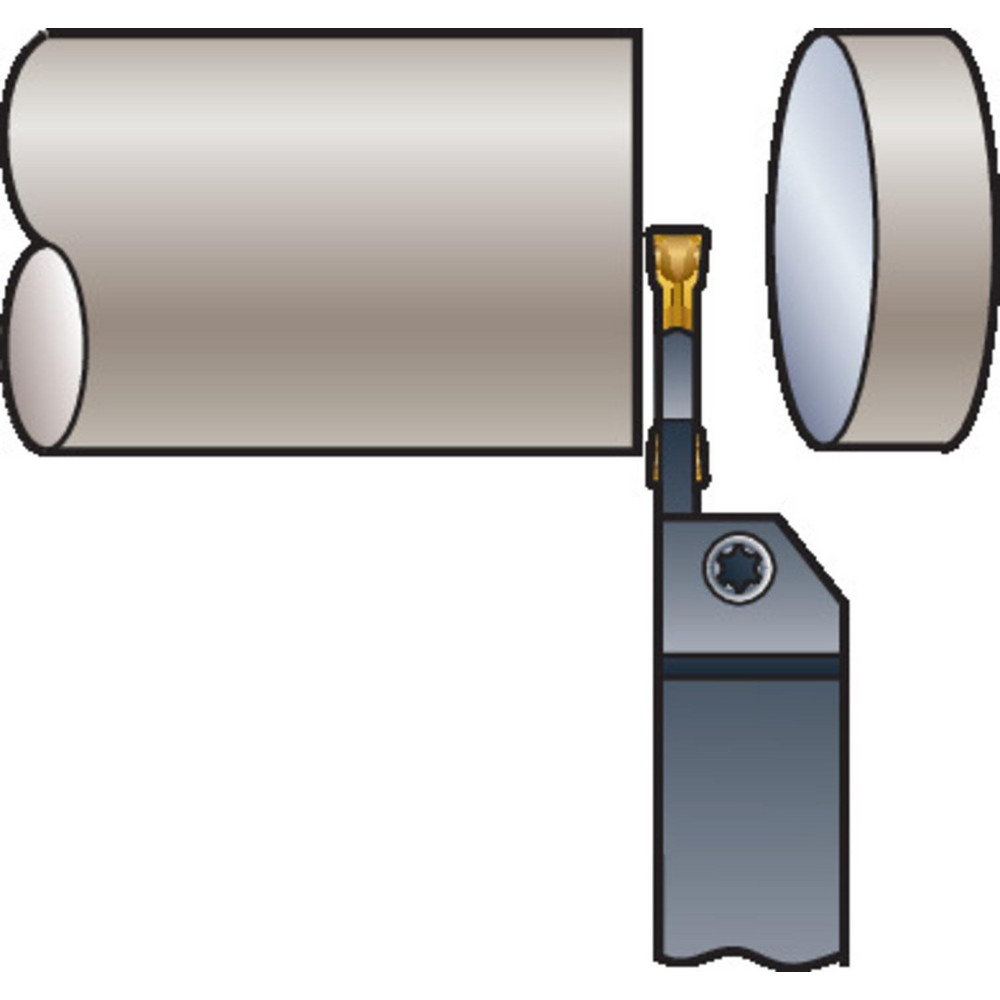

0 deg Neutral Lead Angle, Series CoroCut 1-2
| Insert Style | N123x2 |
|---|---|
| Insert Size Code | E |
| Insert Material | Carbide |
| Manufacturer Grade | 2135 |

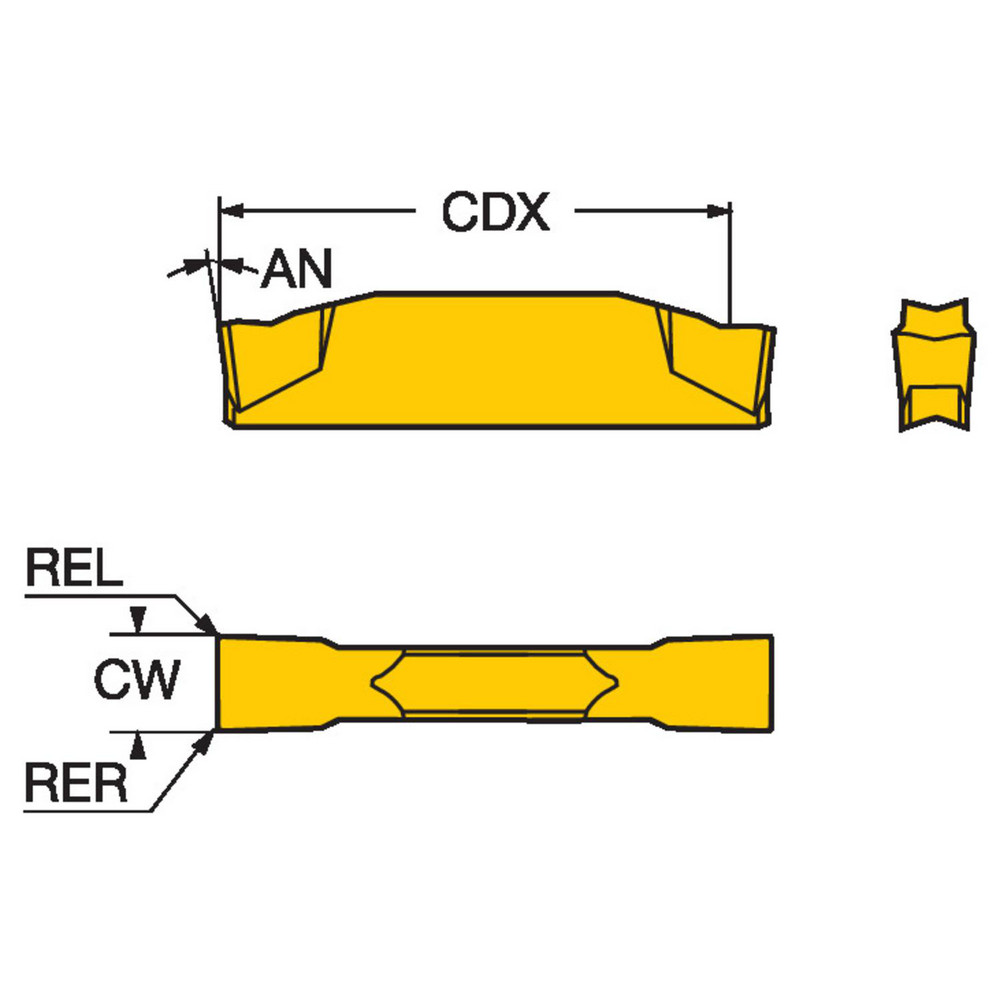

| Cutting Width (Decimal Inch) | 0.0787 |
| Cutting Width (mm) | 2.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.00 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | CM |
| Series | CoroCut 1-2 |
| Coating Process | MTCVD |
| Overall Length (mm) | 19.56 |
| Overall Length (Decimal Inch) | 0.7701 |
| Manufacturers Catalog Number | N123E2-0200-0002-CM 2135 |
| Maximum Depth of Cut (mm) | 19.00 |
| Insert Seat Size | E |
| Full Radius | No |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0787 |
| Overall Width (mm) | 2.00 |
| Coating/Finish | TiCN/Al2O3/TiN |
| UNSPSC Code | 23242105 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 31814825 |
