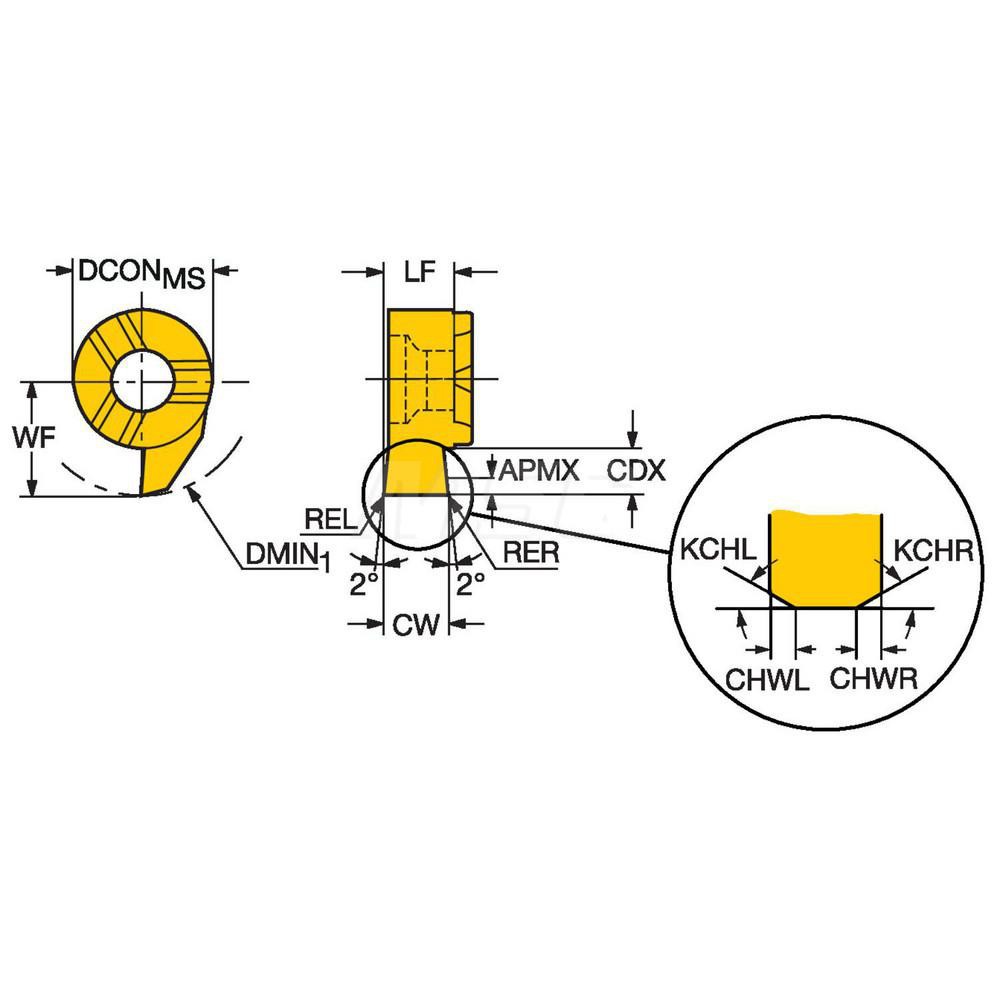

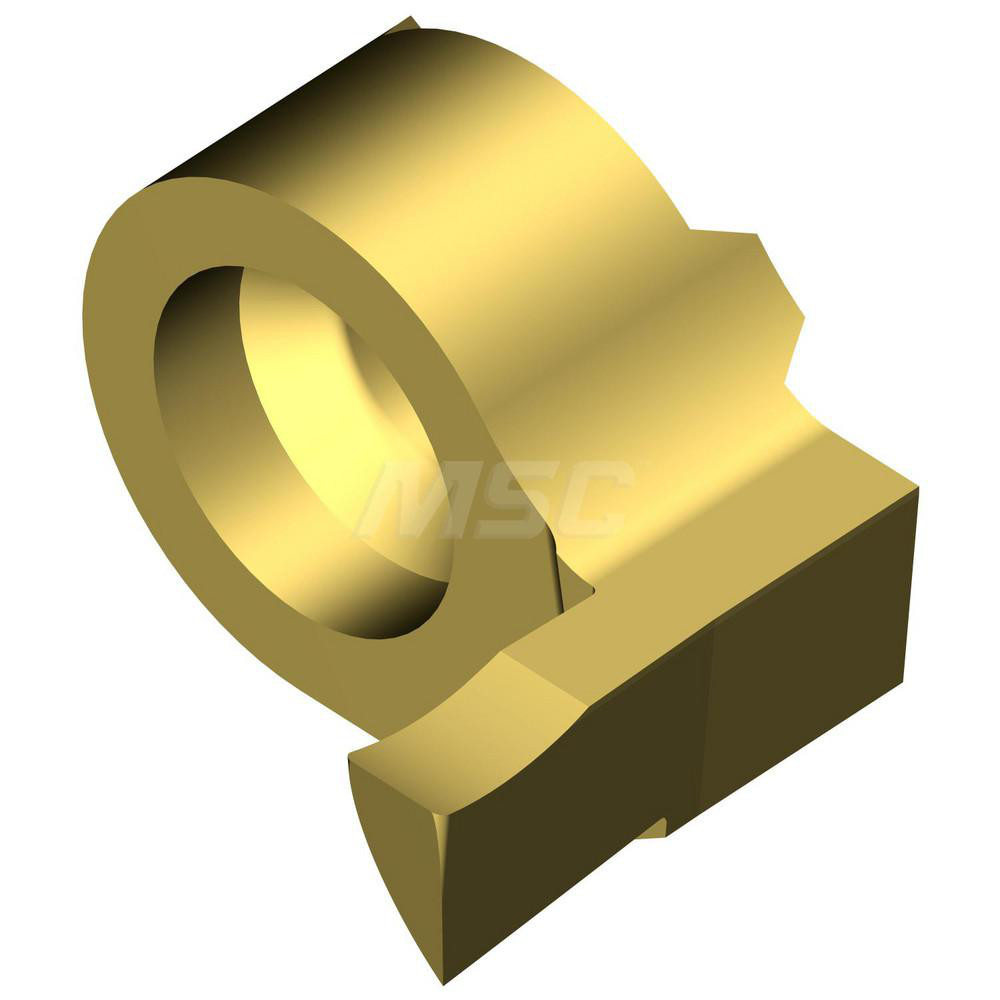

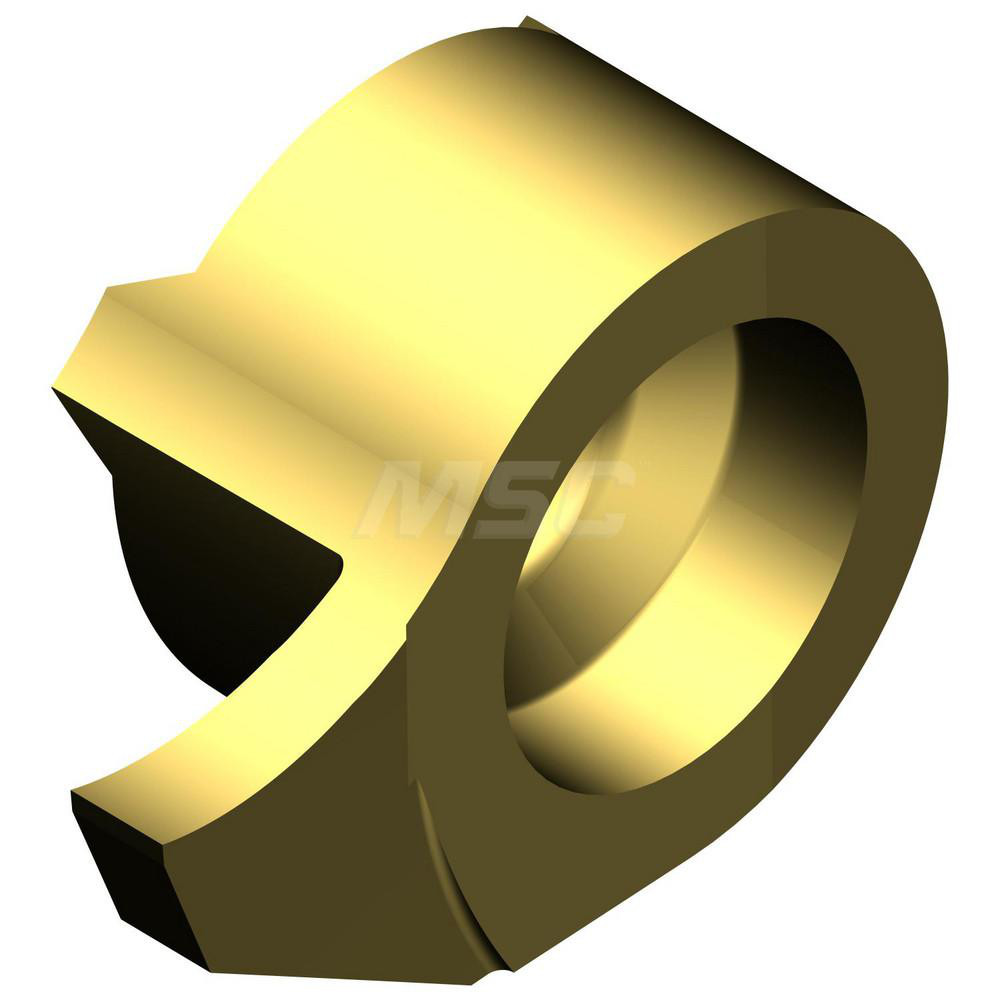

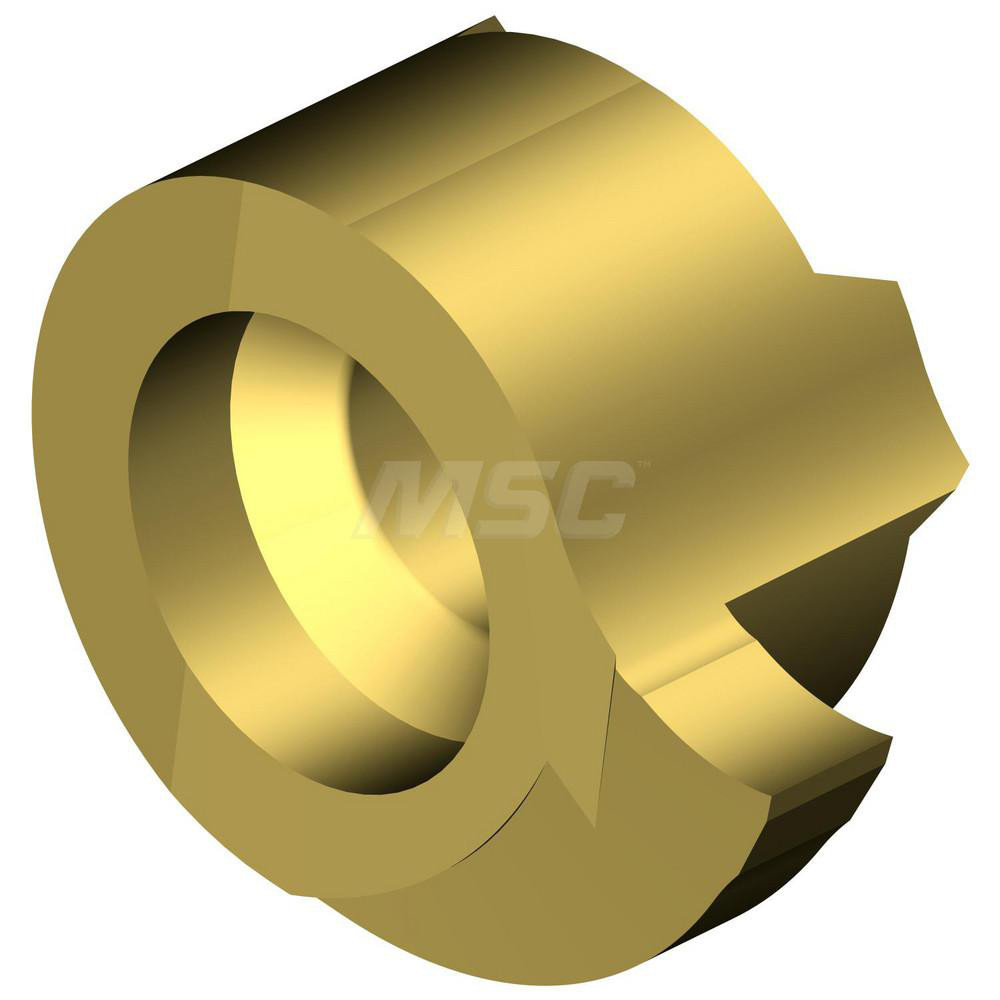

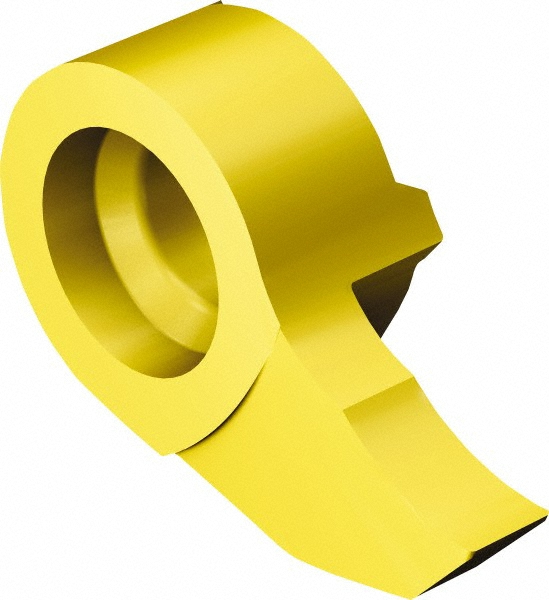

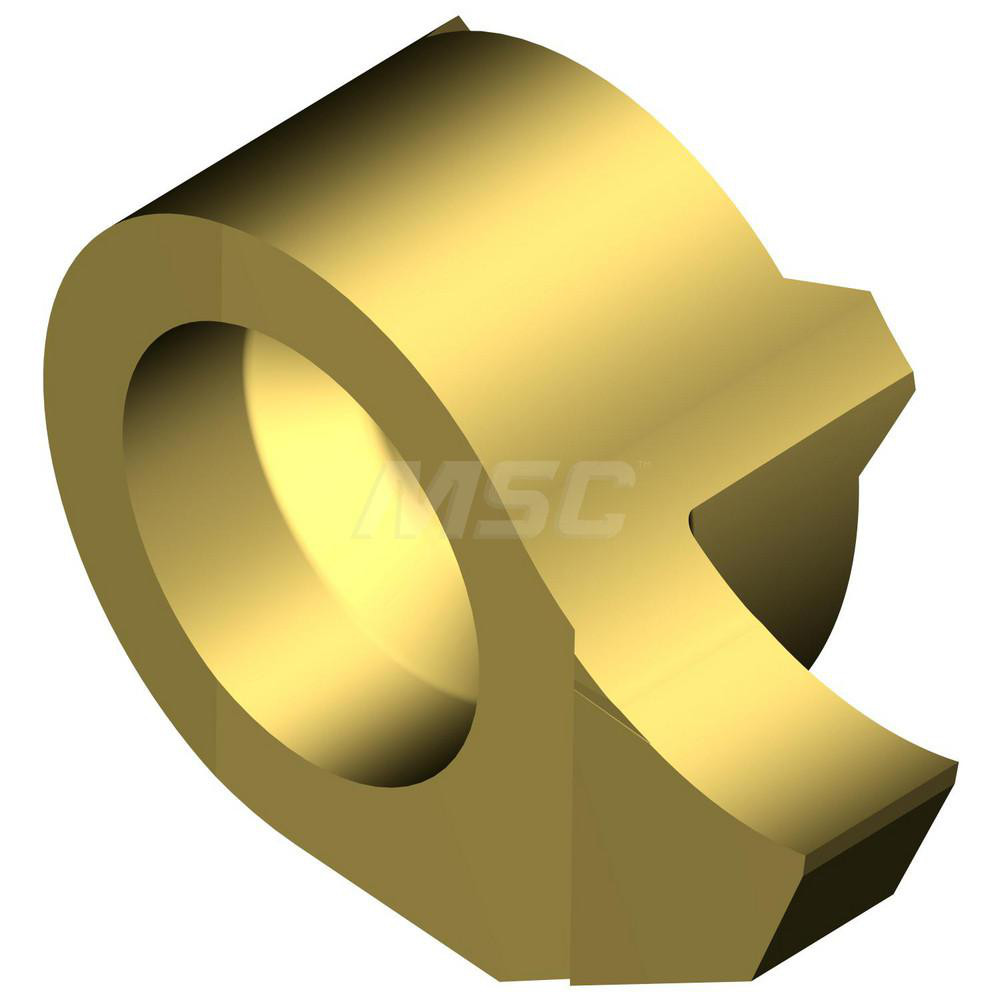

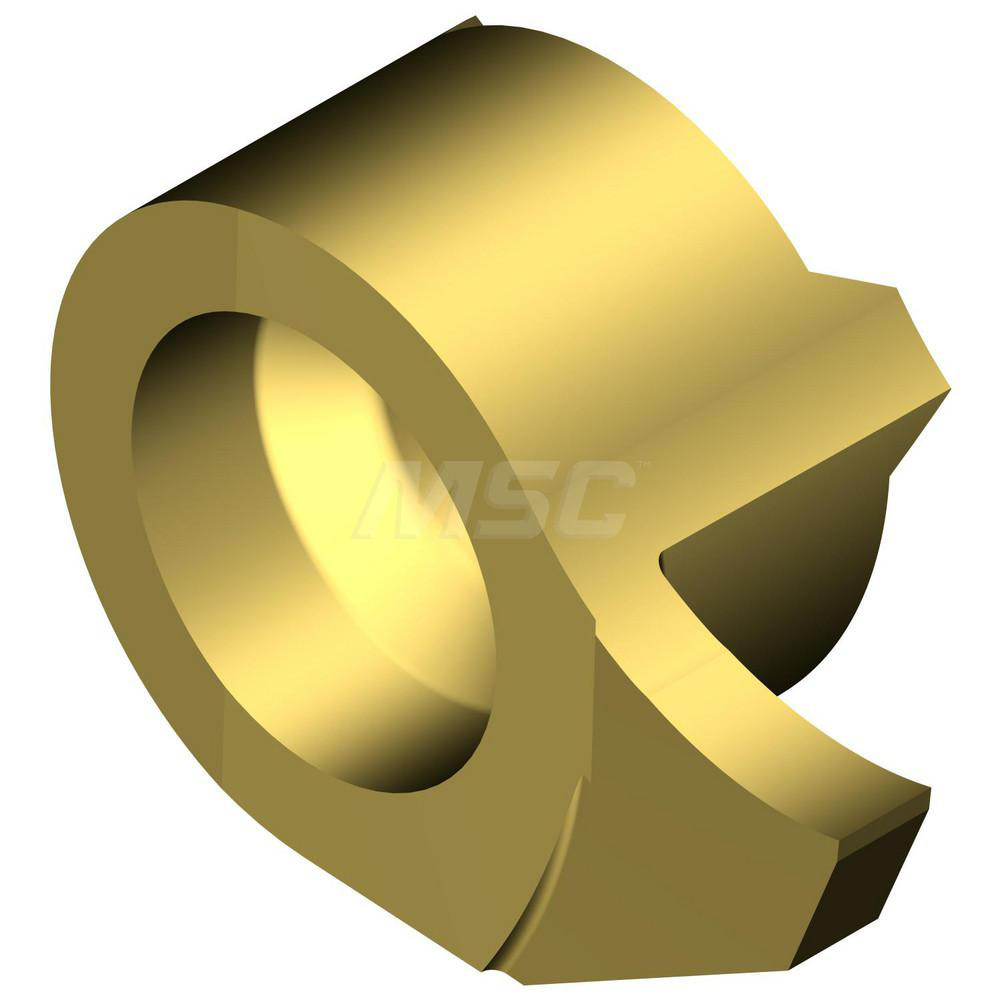

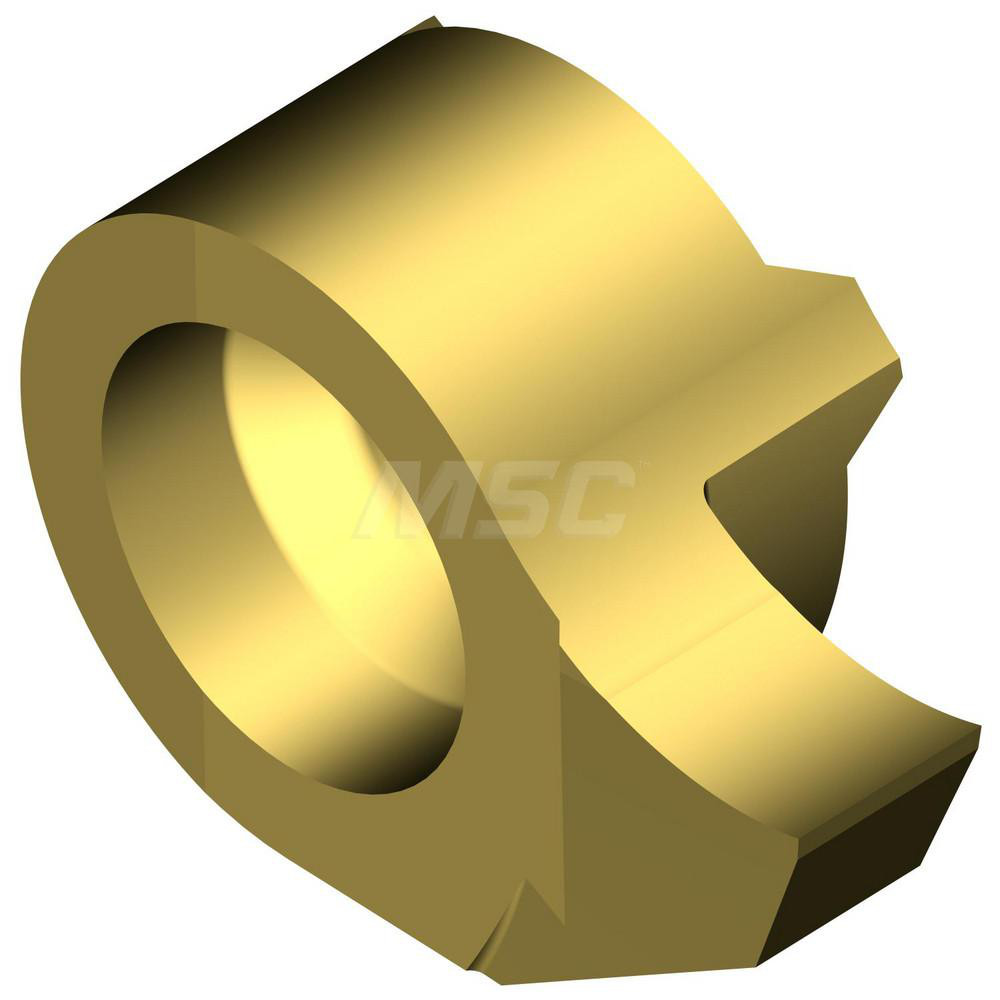

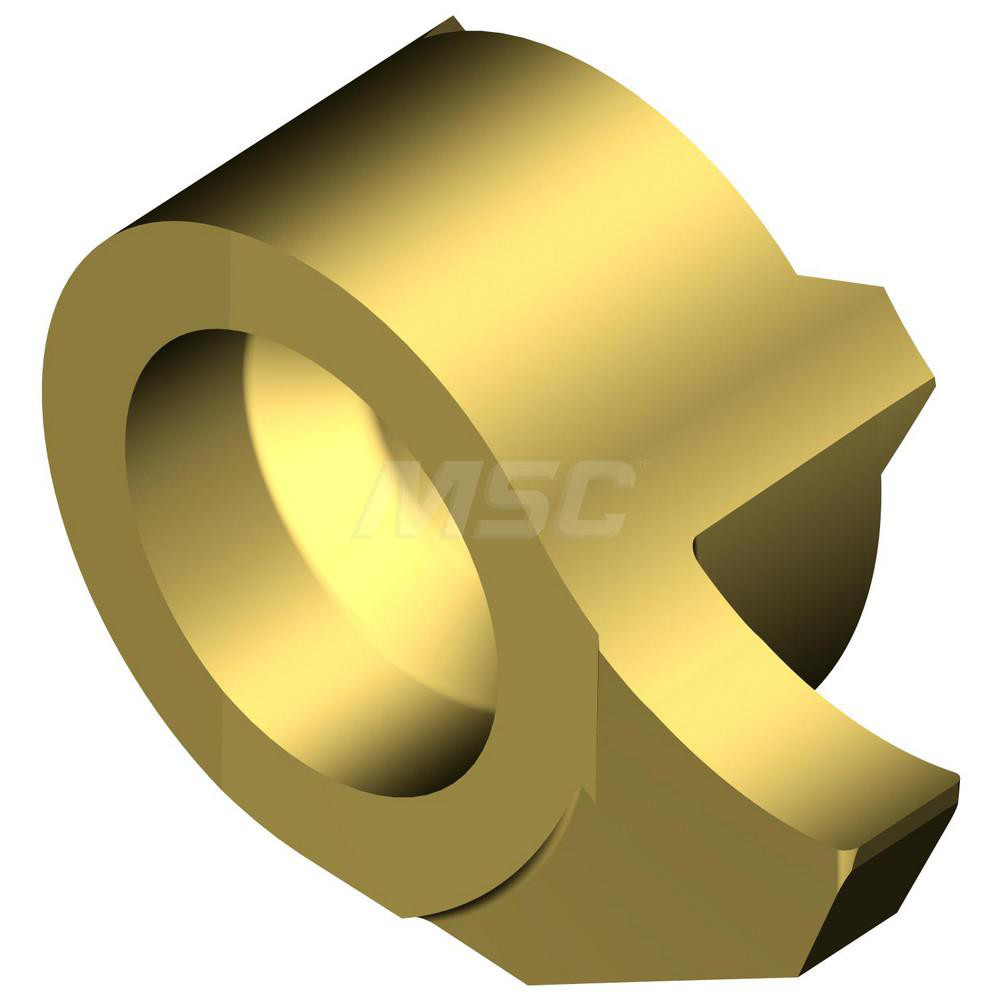

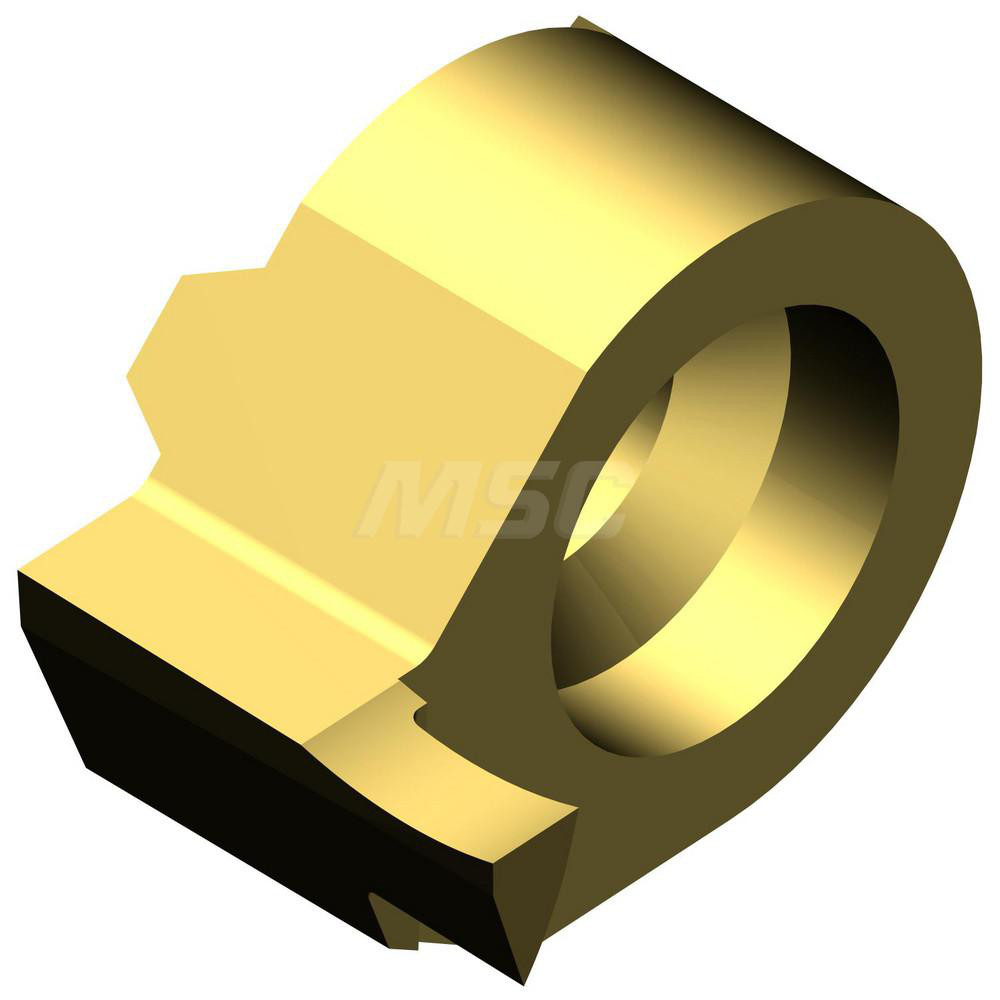

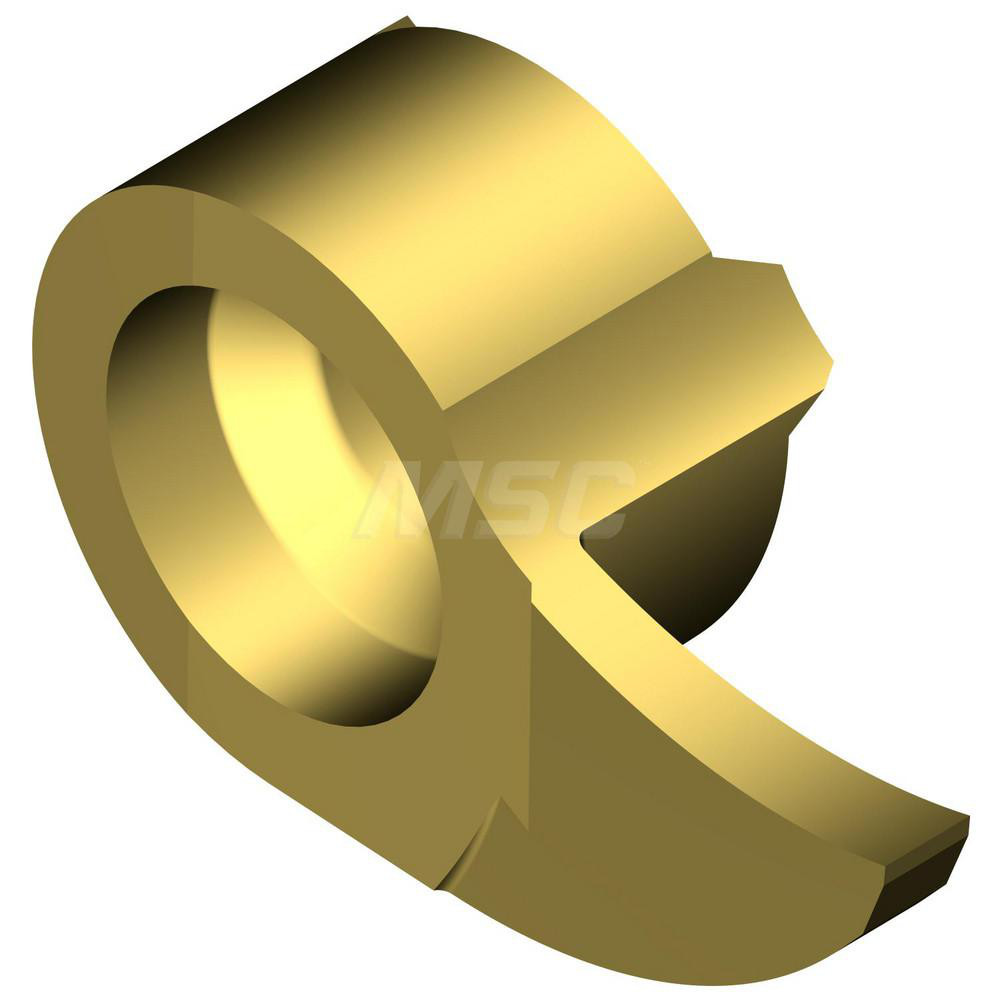

TiAlN & TiN Finish, Right Hand, 1.50 mm Cutting Width, 4.00 mm Max Depth, Series CoroCut MB
| Insert Style | MB |
|---|---|
| Cutting Width (Decimal Inch) | 0.0591 |
| Cutting Width (mm) | 1.50 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 4.00 |
| Insert Material | Carbide |
| Manufacturer Grade | 1025 |
| Rake | Neutral |
| Measurement Type | Metric |
| Insert Size | 09 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1500 to 0.2000 |
| Maximum Depth Of Cut Range (mm) | 4.00 to 5.00 |
| Lead Angle | 90 |
| Multi-use Tool | Yes |
| Series | CoroCut MB |
| Coating Process | PVD |
| Rake Angle | 2 |
| Overall Length (Decimal Inch) | 0.2362 |
| Iso Code | MB-09G150-00-14R 1025 |
| Manufacturers Catalog Number | MB-09G150-00-14R 1025 |
| Insert Thickness (Decimal Inch) | 0.3543 |
| UNSPSC Code | 23242105 |
| Overall Width (mm) | 1.50 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0591 |
| Coating/Finish | TiN; TiAlN |
| Country of Origin | France |
| undefined | undefined |
| MSC Number | MSC# 43432293 |
