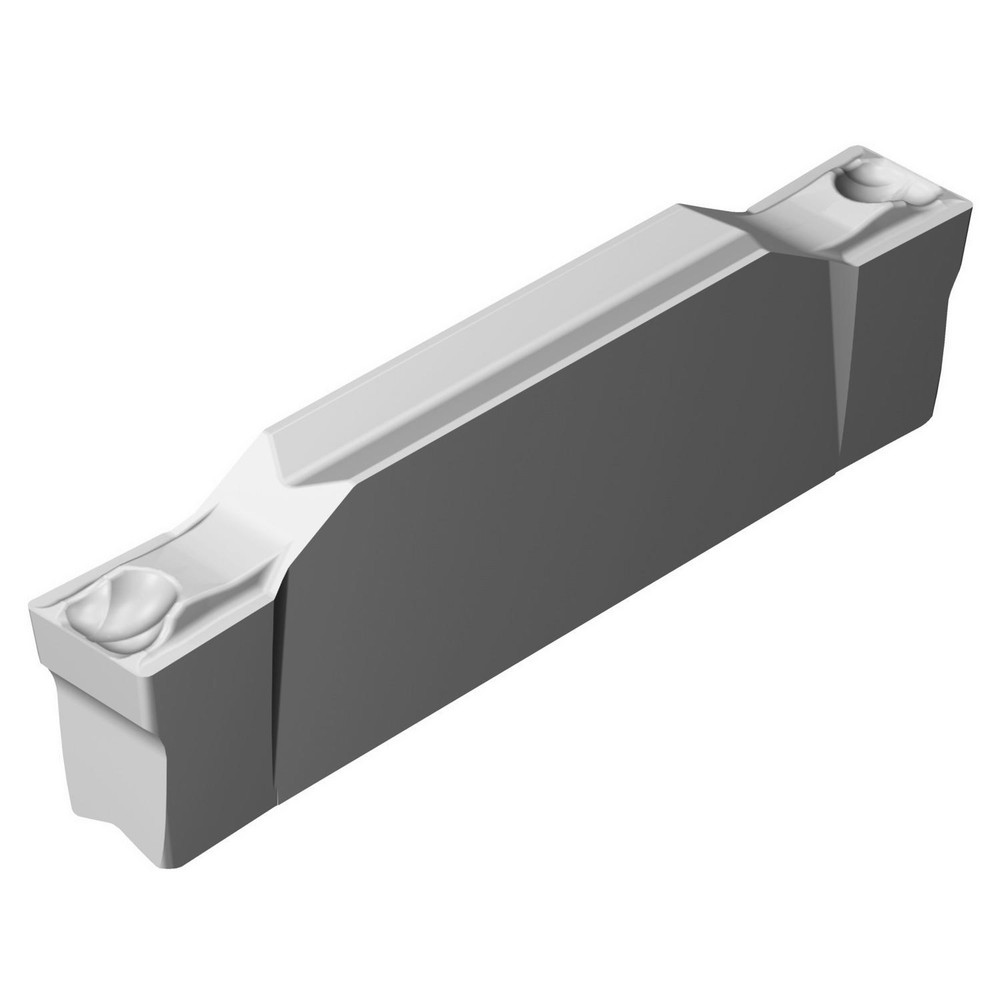

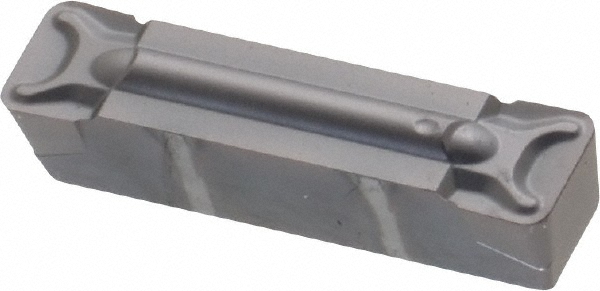

TiAlN2 Finish, Neutral, 2.39 mm Cutting Width, 19.20 mm Max Depth, Series CoroCut 1-2
| Insert Style | N123 |
|---|---|

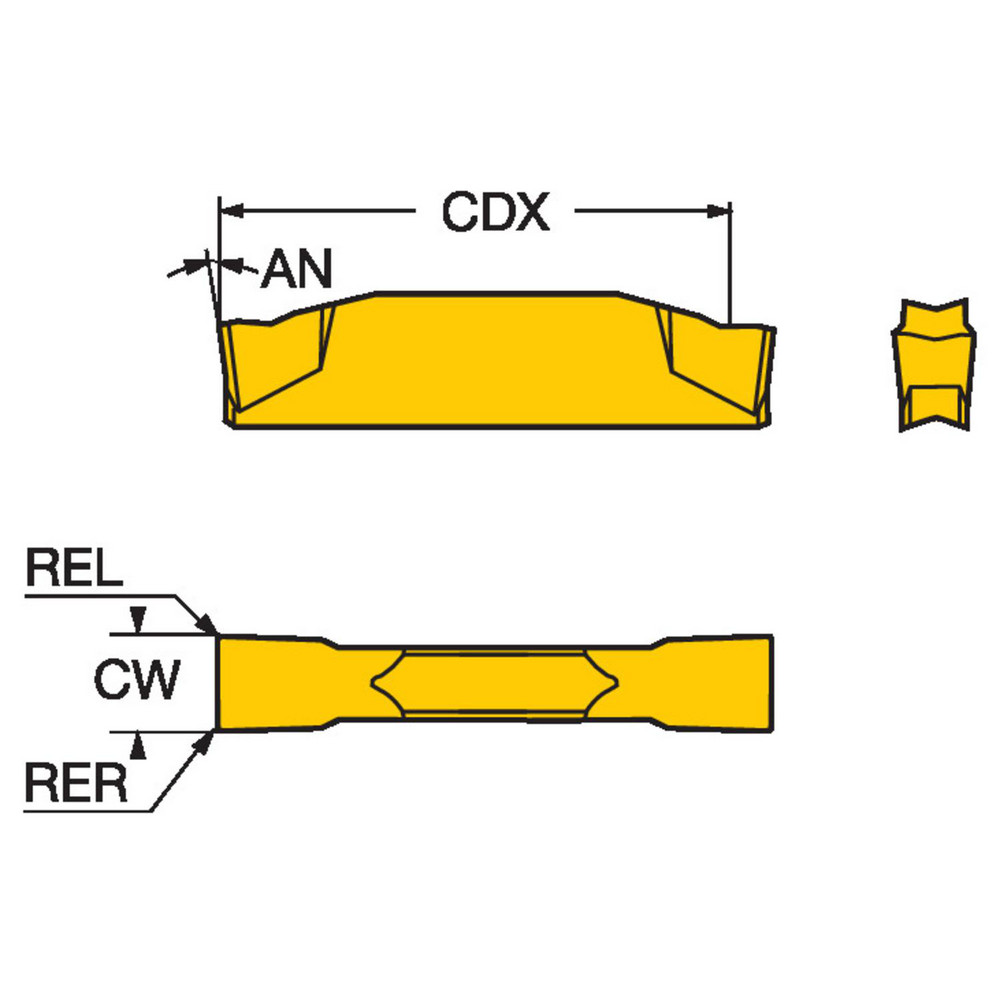

| Cutting Width (Decimal Inch) | 0.0941 |
| Cutting Width (mm) | 2.39 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.7559 |
| Maximum Depth of Cut (mm) | 19.20 |
| Insert Material | Carbide |
| Manufacturer Grade | 1105 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Rake | Neutral |
| Measurement Type | Metric |
| Insert Size | F |
| Cutting Height (mm) | 4.30 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Multi-use Tool | Yes |
| Series | CoroCut 1-2 |
| Coating Process | PVD |
| Rake Angle | 7 |
| Overall Length (Decimal Inch) | 0.7894 |
| Iso Code | N123F2-0239-0004-GF 1105 |
| Manufacturers Catalog Number | N123F2-0239-0004-GF 1105 |
| Insert Thickness (Decimal Inch) | 0.1693 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GF |
| Insert Seat Size | F |
| Overall Width (mm) | 2.39 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0941 |
| Coating/Finish | TiAlN2 |
| Country of Origin | Sweden |
| MSC Number | MSC# 52079316 |
