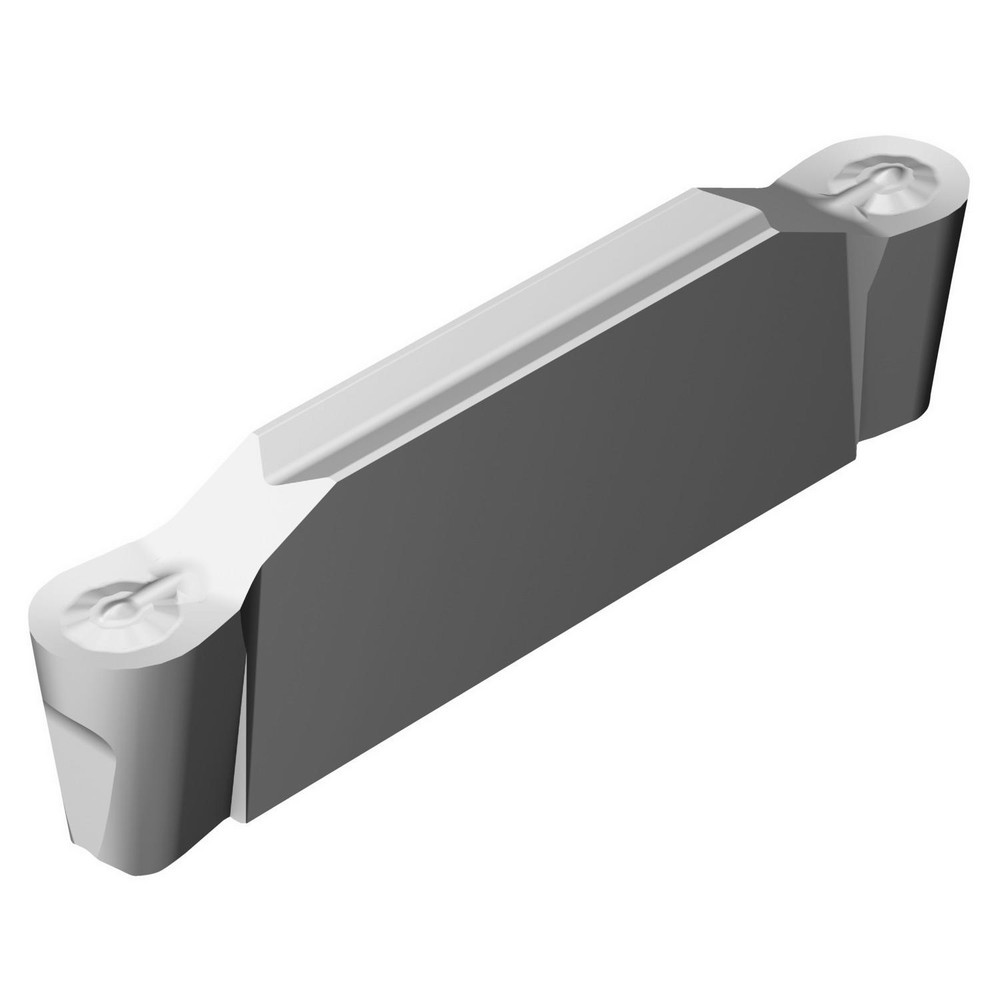

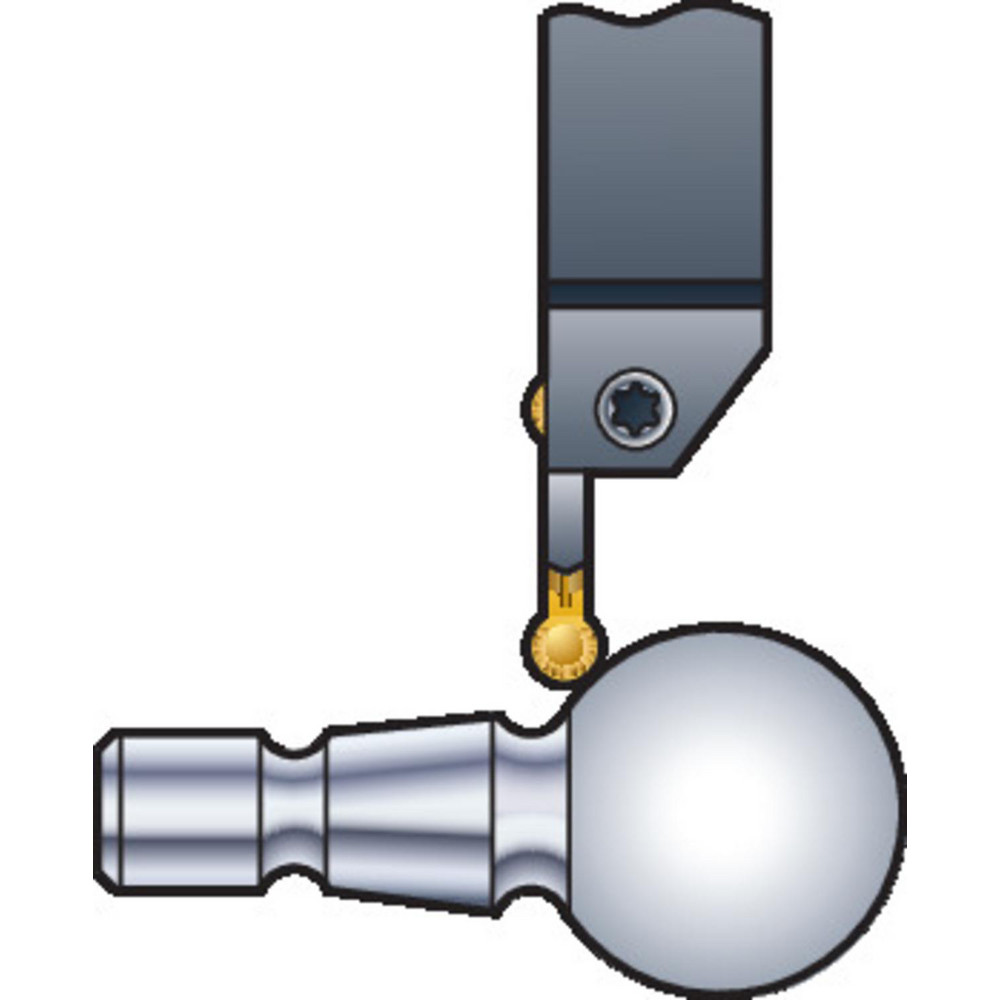

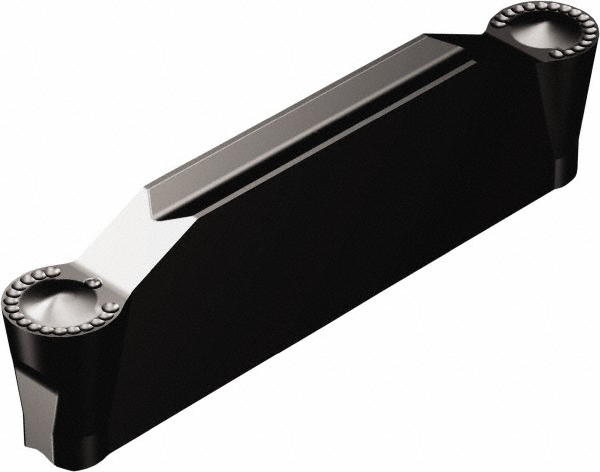

TiAlN Finish, Neutral, 5.00 mm Cutting Width, 22.80 mm Max Depth, Series CoroCut 1-2

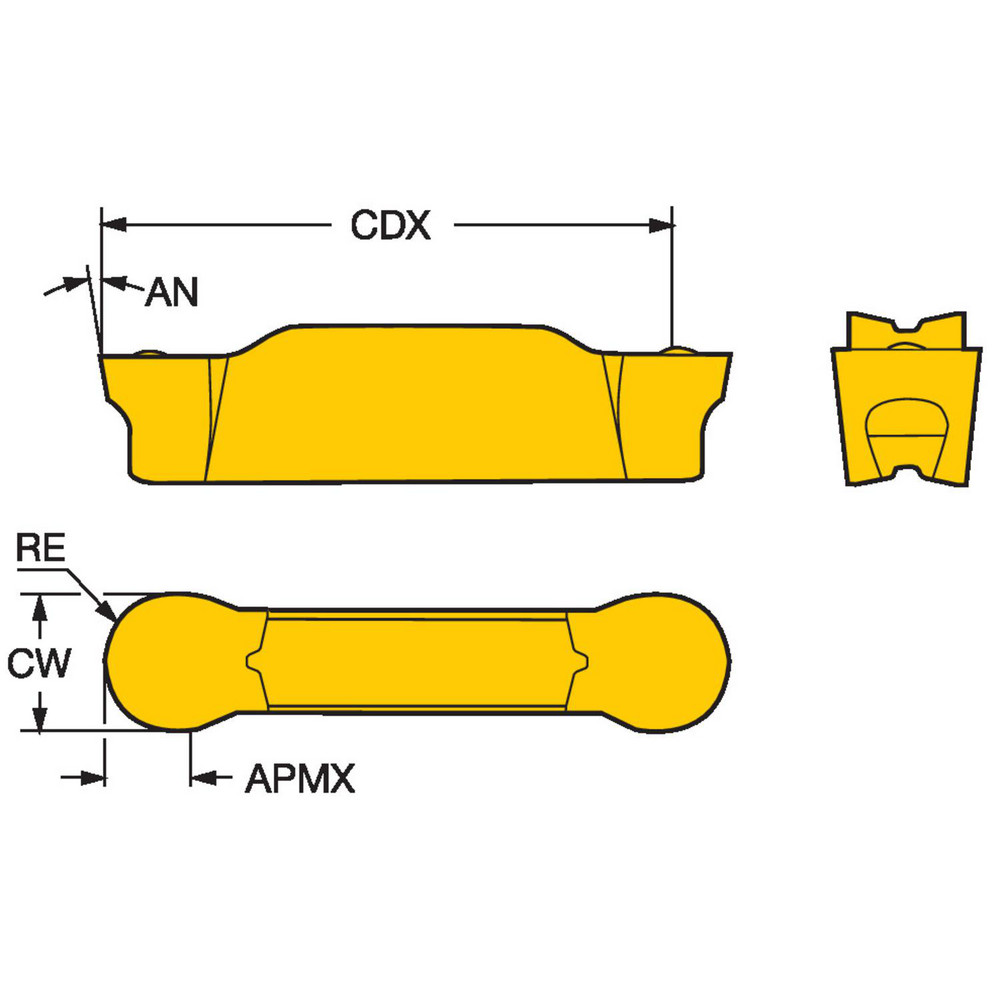

| Insert Style | N123x2 |
|---|---|
| Cutting Width (Decimal Inch) | 0.1969 |
| Cutting Width (mm) | 5.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.8980 |
| Maximum Depth of Cut (mm) | 22.80 |
| Insert Material | Carbide |
| Corner Radius (Decimal Inch) | 0.0984 |
| Corner Radius (mm) | 2.50 |
| Rake | Positive |
| Measurement Type | Metric |
| Insert Size | H2 |
| Cutting Height (mm) | 4.35 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Cutting Height (Decimal Inch) | 0.1713 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Multi-use Tool | Yes |
| Series | CoroCut 1-2 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.986 |
| Iso Code | N123H2-0500-RO 1105 |
| Manufacturers Catalog Number | N123H2-0500-RO 1105 |
| Insert Thickness (Decimal Inch) | 0.1713 |
| UNSPSC Code | 23242105 |
| Chip Breaker | RO |
| Insert Seat Size | H |
| Overall Width (Decimal Inch - 4 Decimals) | 0.197 |
| Coating/Finish | TiAlN |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 52085156 |
