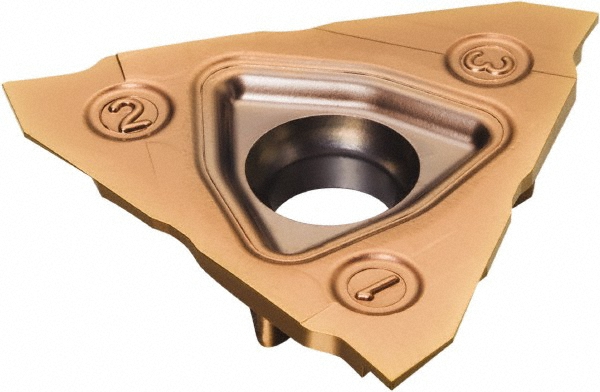

TiAlN Finish, Neutral, 3.18 mm Cutting Width, 6.00 mm Max Depth, Series CoroCut 3

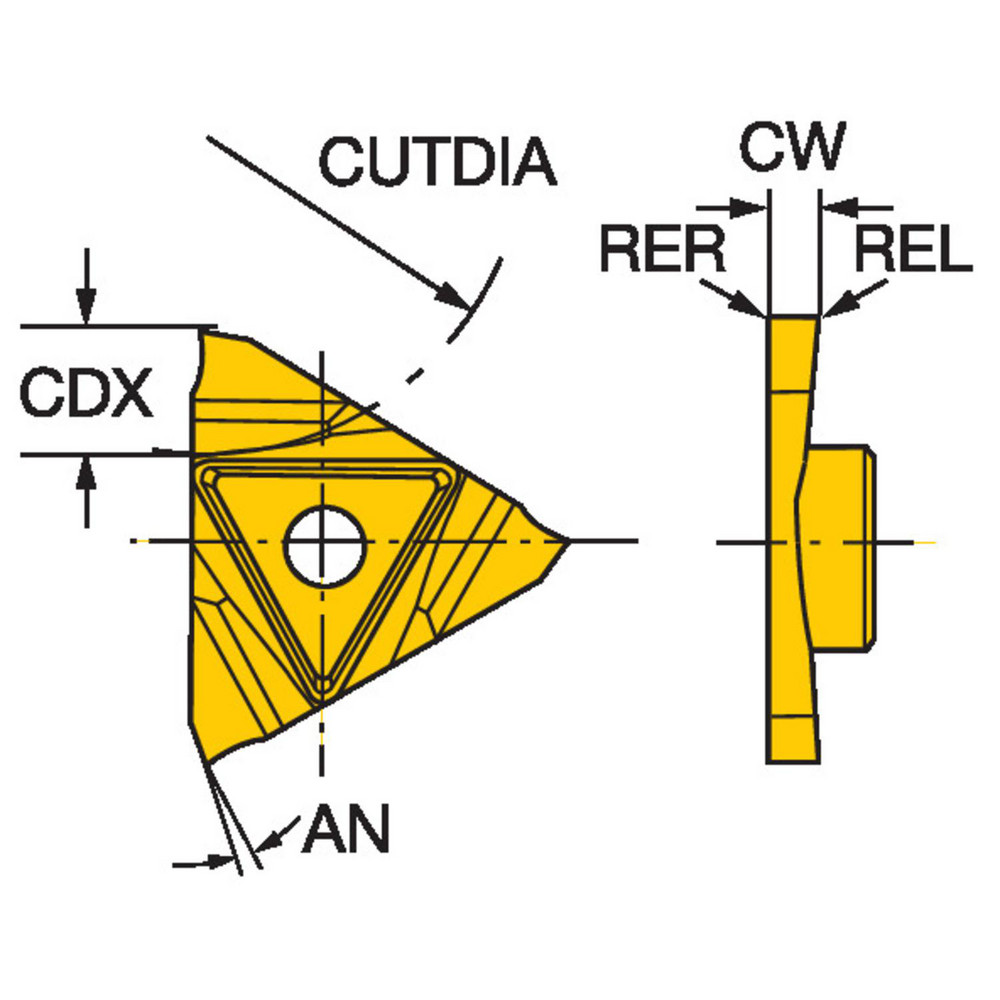

| Insert Style | N123 |
|---|---|
| Cutting Width (Decimal Inch) | 0.1252 |
| Cutting Width (mm) | 3.18 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Insert Material | Carbide |
| Manufacturer Grade | 1125 |
| Measurement Type | Metric |
| Insert Size | 303180 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.2000 to 0.3000 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Lead Angle | 0 |
| Multi-use Tool | Yes |
| Series | CoroCut 3 |
| Coating Process | PVD |
| Rake Angle | 0 |
| Iso Code | N123T303180000GS1125 |
| Manufacturers Catalog Number | 5737081 |
| Insert Thickness (Decimal Inch) | 0.1469 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GS |
| Coating/Finish | TiAlN |
| Insert Thickness | 3.73 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 54931795 |
